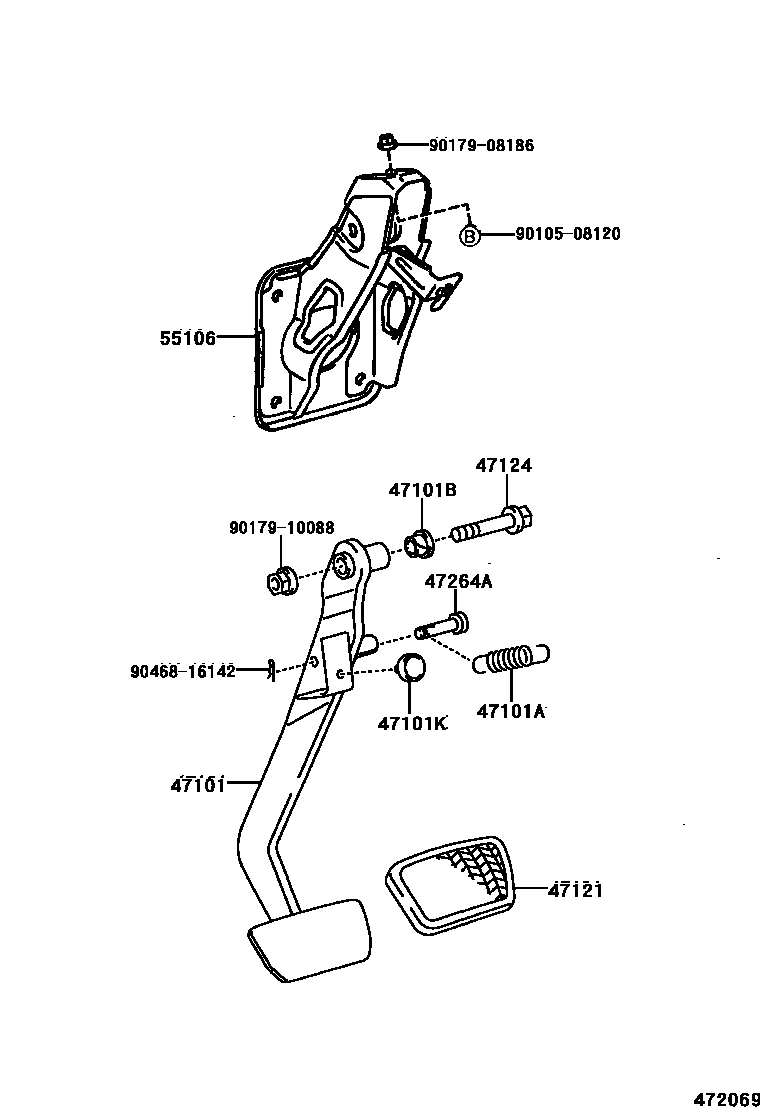

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-47020iNHW11..RHD200005

main47101-47030iNHW11..LHD200005

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07030iNHW11200005

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNHW11200005

47101KCUSHION(FOR PARKING LOCK CABLE)

main90541-06049iNHW11..RHD200005

47121PAD, BRAKE PEDAL

main47121-50010iNHW11..RHD200005

main47121-52010iNHW11..LHD200005

47124SHAFT, BRAKE PEDAL

main90109-10167iNHW11200005

47264APIN(FOR PUSH ROD)

main47148-12020iNHW11200005

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-47020iNHW11..RHD200005

main55106-47030iNHW11..LHD200005

9010508120

main90105-08120

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142
