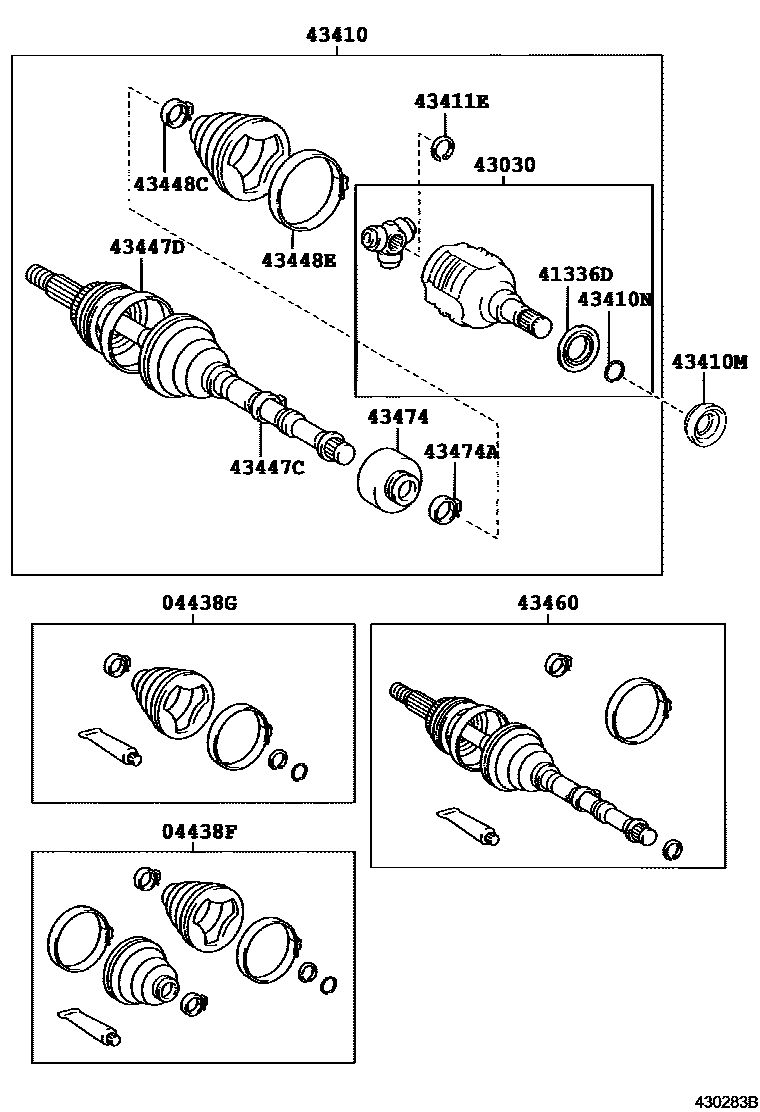

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12660i¥10,800200104

sub04428-12250¥10,800

main04438-20132i¥10,800200005-200104

sub04438-20133¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12470i¥6,700200104

sub04438-32240¥6,700

main04438-20121i¥6,700200005-200104

sub04438-12470¥6,700

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12060i¥200200011

main41336-32020i¥310200005-200011

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-32040i¥17,300200005

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-47011i¥82,700200005-200104

sub43410-47012¥82,700

main43410-47012i¥82,700200104

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35045i¥290200005-200308

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-27005i¥110200005

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005i¥100200005

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150i¥370200104

ID=29.6

sub42345-12190¥240

main42345-20100i¥530200005-200104

ID=31.1

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140i¥580200104

ID=92.0

sub42345-12180¥330

main42345-20120i¥620200005-200104

ID=90.6

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078i¥80200005

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160i¥300200202

TYPE B:REFER TO ILLUSTRATION

main90949-01076i¥380200005-200203

TYPE A:REFER TO ILLUSTRATION,ORANGE MARK

sub42345-12160¥300

main90949-01946i¥230200005-200203

TYPE A:REFER TO ILLUSTRATION,NO MARK

sub42345-12160¥300

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49037i¥50,400200005-200104

sub43460-49038¥50,400

main43460-49038i¥50,400200104

43474DAMPER, DRIVE SHAFT

main43474-47010i¥2,010200005

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90949-01947i¥360200005

15 parts on this diagram · 4 diagrams in section
