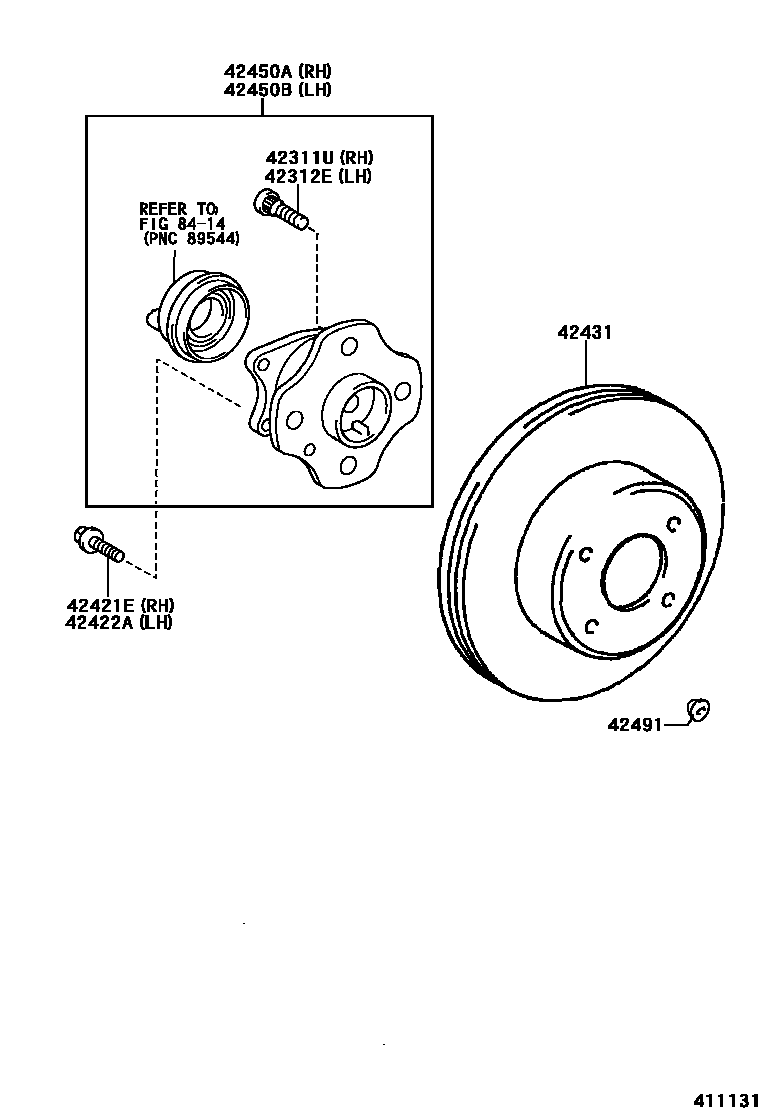

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iNHW11¥230200005

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iNHW11¥230200005

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10470iNHW11¥170200005-200103

main90105-10507iNHW11¥120200104

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10470iNHW11¥170200005-200103

main90105-10507iNHW11¥120200104

42431DISC, REAR

main42431-47020iNHW11¥10,100200209

sub42431-12250¥10,200

main42431-52050iNHW11¥14,300200005-200209

sub42431-12250¥10,200

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-47020iNHW11¥23,200200005

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-47020iNHW11¥23,200200005

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iNHW11¥140200005

8414

9 parts on this diagram · 1 diagram in section
