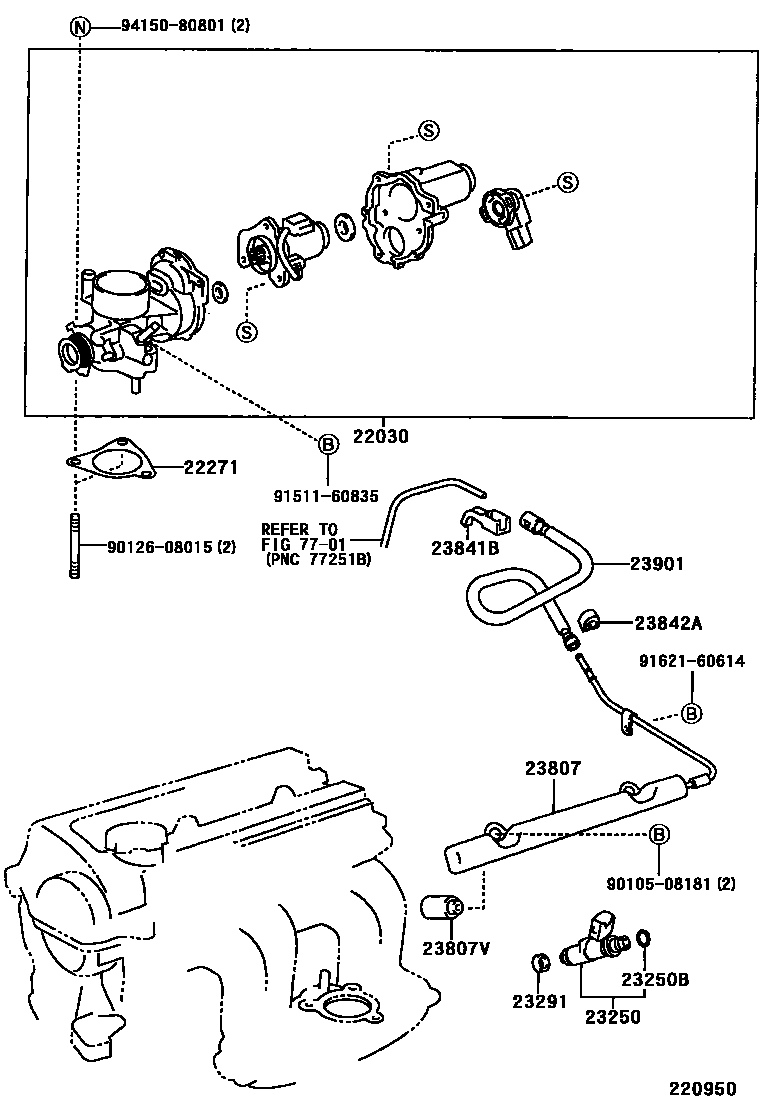

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21020i1NZFXE..NHW11200005-200305

22271GASKET, THROTTLE BODY

main22271-21030i1NZFXE..NHW11200005-200305

23250INJECTOR ASSY, FUEL

main23209-21020i1NZFXE..NHW11200005-200305

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1NZFXE..NHW11200005-200305

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1NZFXE..NHW11200005-200305

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-21040i1NZFXE..NHW11200005-200305

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010i1NZFXE..NHW11200005-200305

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21030i1NZFXE..NHW11200005

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1NZFXE..NHW11200005

23901TUBE SUB-ASSY, FUEL

main23901-21040i1NZFXE..NHW11200005

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010508181

main90105-08181

9012608015

main90126-08015

9151160835

main91511-60835

9162160614

main91621-60614

9415080801

main94150-80801

16 parts on this diagram · 3 diagrams in section
