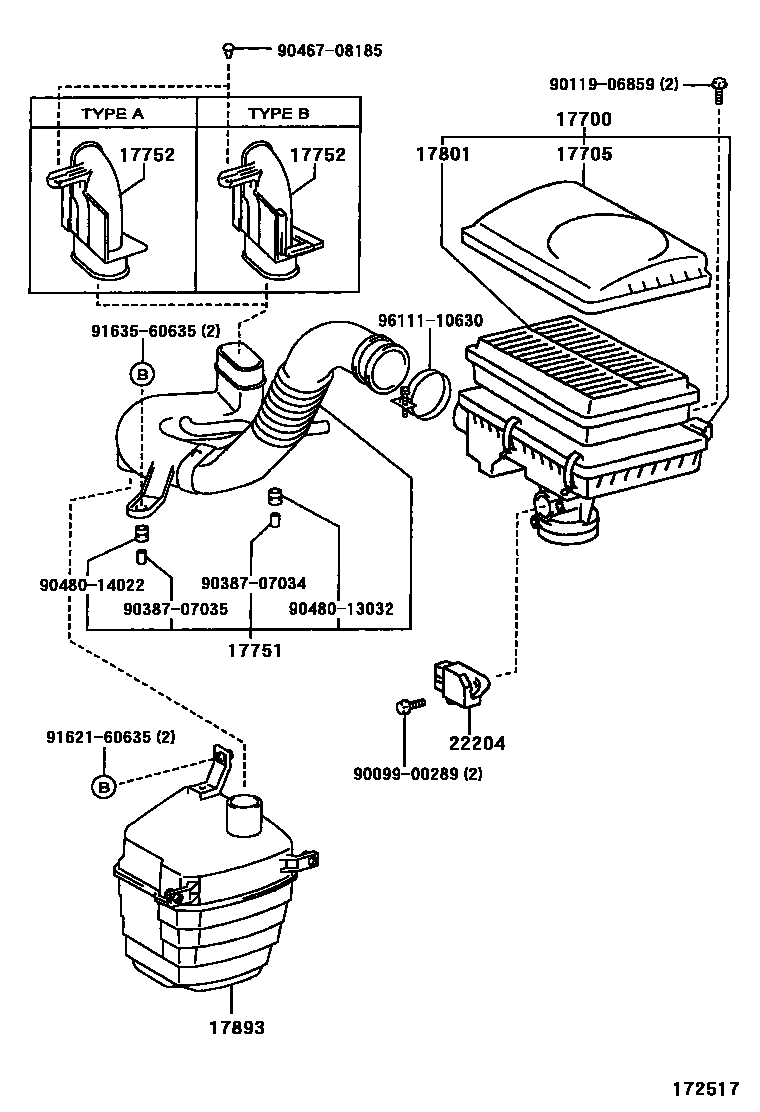

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-21080i1NZFXE..NHW11200005

17705CAP SUB-ASSY, AIR CLEANER

main17705-21020i1NZFXE..NHW11200005

17751INLET, AIR CLEANER, NO.1

main17751-21050i1NZFXE..NHW11200005

17752INLET, AIR CLEANER, NO.2

main17752-21030i1NZFXE..NHW11200005

TYPE A:REFER TO ILLUSTRATION

main17752-21040i1NZFXE..NHW11..LHD200005

TYPE B:REFER TO ILLUSTRATION

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21020i1NZFXE..NHW11200005

17893RESONATOR, INTAKE AIR

main17893-21020i1NZFXE..NHW11200005

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-21010i1NZFXE..NHW11200005

9009900289

main90099-00289

9011906859

main90119-06859

9038707034

main90387-07034

9038707035

main90387-07035

9046708185

main90467-08185

9048013032

main90480-13032

9048014022

main90480-14022

9162160635

main91621-60635

9163560635

main91635-60635

9611110630

main96111-10630

17 parts on this diagram · 1 diagram in section
