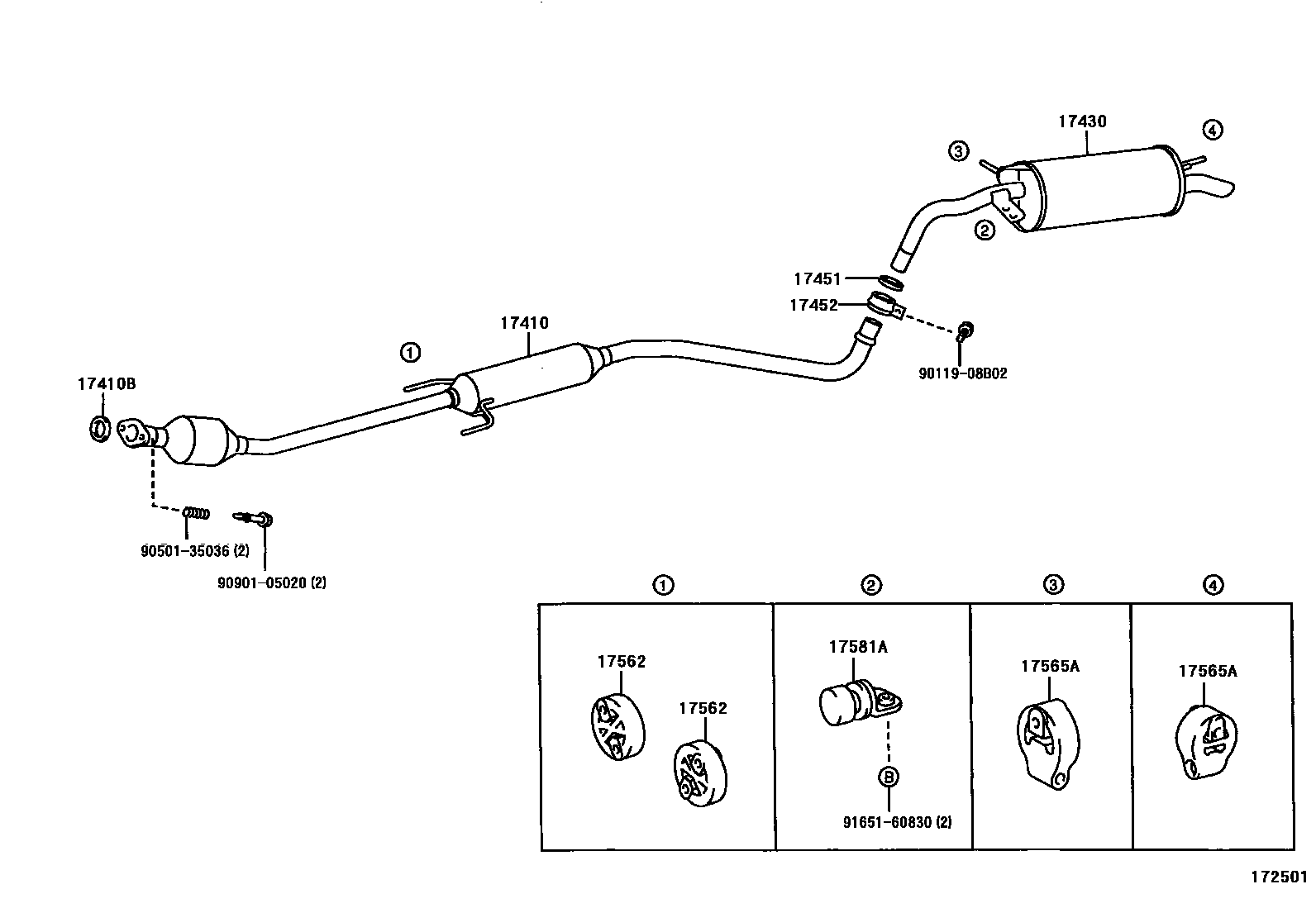

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21300i1NZFXE..NHW11200005-200308

*115=TOYOTA/00-03/Y

17410BGASKET, EXHAUST PIPE

main17451-21040i1NZFXE..NHW11200005

sub17451-21060

17430PIPE ASSY, EXHAUST, TAIL

main17430-21170i1NZFXE..NHW11200005

17451GASKET, EXHAUST PIPE

main90917-06081i1NZFXE..NHW11200005

17452CLAMP, EXHAUST PIPE

main90461-16066i1NZFXE..NHW11200005

sub90461-15015

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-21021i1NZFXE..NHW11200005

sub17565-22040

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-21010i1NZFXE..NHW11200005

17581ADAMPER, EXHAUST PIPE

main17581-70080i1NZFXE..NHW11200005

9011908B02

main90119-08B02

9050135036

main90501-35036

9090105020

main90901-05020

9165160830

main91651-60830

12 parts on this diagram · 1 diagram in section
