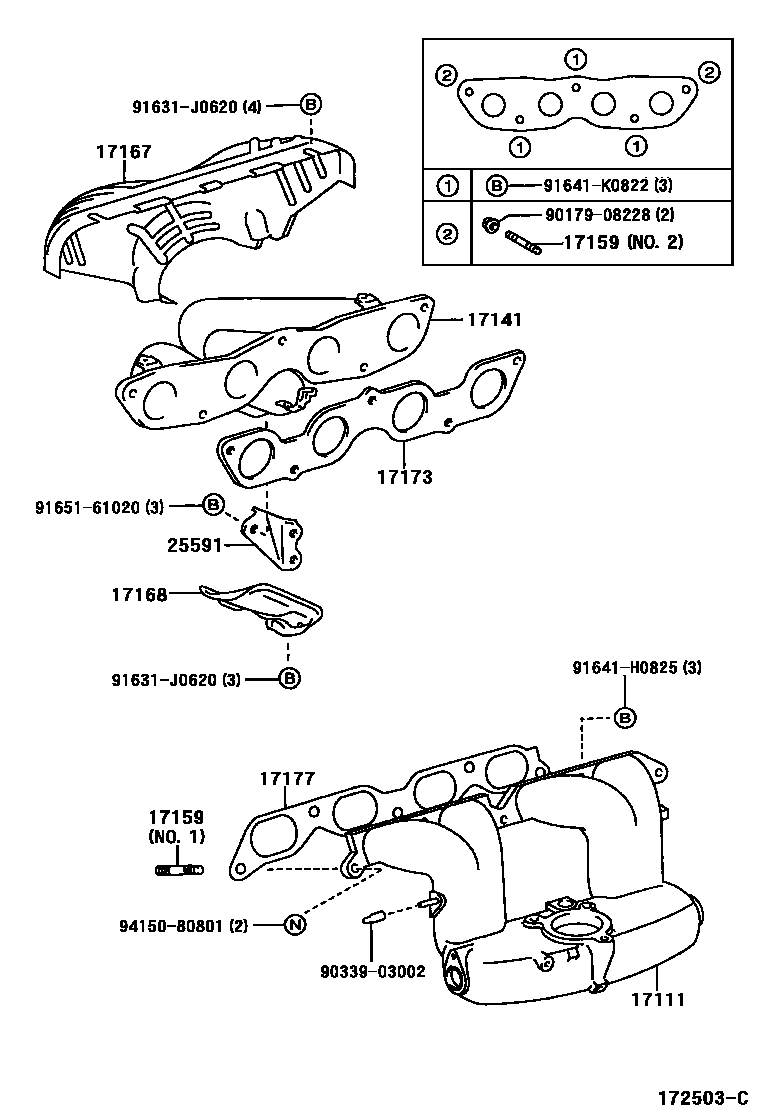

MANIFOLD
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25591BRACKET, MANIFOLD SUPPORT
9017908228
9033903002
91631J0620
91641H0825
91641K0822
9165161020
9415080801
15 parts on this diagram · 1 diagram in section
