CAMSHAFT & VALVE

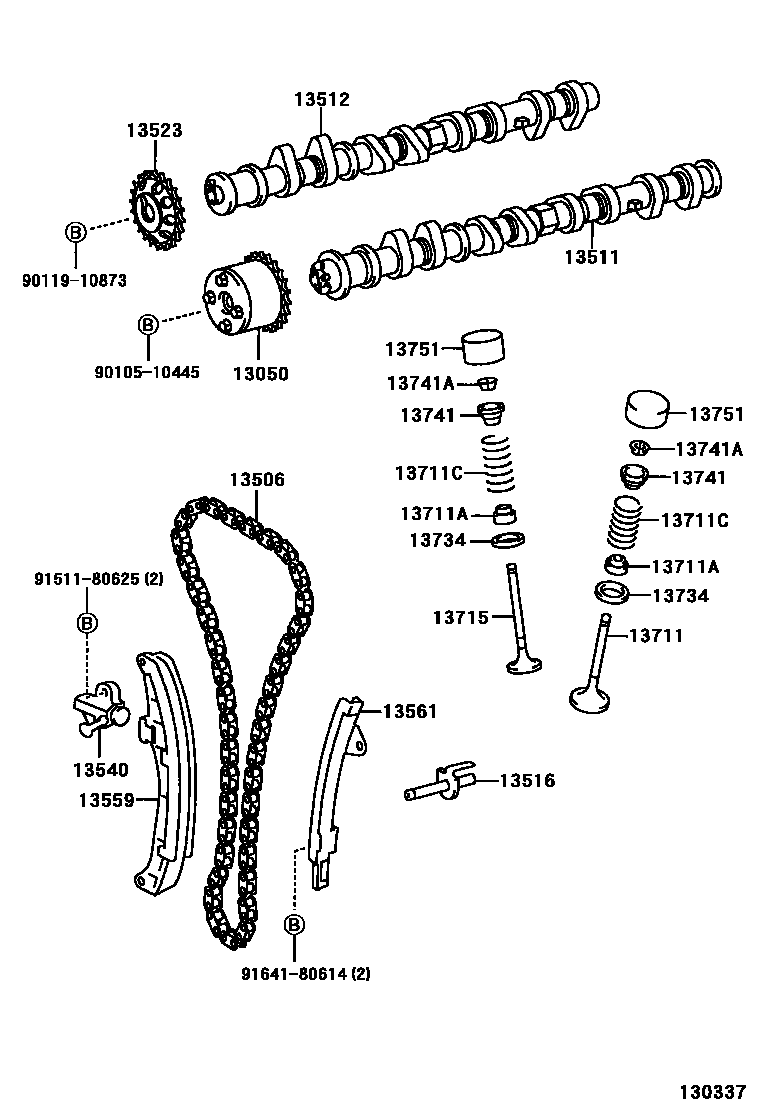

Parts diagram
13050GEAR ASSY, CAMSHAFT TIMING
main13050-21030i200005-200305
sub13050-21031
13506CHAIN SUB-ASSY
main13506-21020i200005-200305
sub13506-21050
sub13506-40010
13511CAMSHAFT
main13501-21040i200005-200305
13512CAMSHAFT, NO.2
main13502-21020i200005-200305
sub13502-21021
sub13523-22020
13516JET, OIL
main13516-21010i200005-200305
sub13516-21011
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-21020i200005-200305
13540TENSIONER ASSY, CHAIN, NO.1
main13540-21010i200005-200305
sub13540-21020
13559SLIPPER, CHAIN TENSIONER
main13559-21010i200005-200305
sub13559-21030
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-21010i200005-200305
sub13561-21040
13711VALVE, INTAKE
main13711-21010×8i200005-200305
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02092×8i200005-200305
EXHAUST SIDE
sub90913-02128
main90913-02093×8i200005-200305
INTAKE SIDE
13711CSPRING, COMPRESSION(FOR OUTER)
main90501-23135×16i200005-200305
13715VALVE, EXHAUST
main13715-21010×8i200005-200305
13734SEAT, VALVE SPRING
main13734-74010×16i200005-200305
13741RETAINER, VALVE SPRING
main13741-22020×16i200005-200203
main13741-22021×16i200203-200305
13741ALOCK, VALVE SPRING RETAINER
main90913-03031×32i200005-200305
13751LIFTER, VALVE
main13751-22040×16i200005-200305
T=5.06
sub13751-21020
main13751-22050×16i200005-200305
T=5.08
sub13751-21030
main13751-22060×16i200005-200305
T=5.10
sub13751-21040
main13751-22070×16i200005-200305
T=5.12
sub13751-21050
main13751-22080×16i200005-200305
T=5.14
sub13751-21060
main13751-22090×16i200005-200305
T=5.16
sub13751-21070
main13751-22100×16i200005-200305
T=5.18
sub13751-21080
main13751-22110×16i200005-200305
T=5.20
sub13751-21090
main13751-22120×16i200005-200305
T=5.22
sub13751-21100
main13751-22130×16i200005-200305
T=5.24
sub13751-21110
main13751-22140×16i200005-200305
T=5.26
sub13751-21120
main13751-22150×16i200005-200305
T=5.28
sub13751-21130
main13751-22160×16i200005-200305
T=5.30
sub13751-21140
main13751-22170×16i200005-200305
T=5.32
sub13751-21150
main13751-22180×16i200005-200305
T=5.34
sub13751-21160
main13751-22190×16i200005-200305
T=5.36
sub13751-21170
main13751-22200×16i200005-200305
T=5.38
sub13751-21180
main13751-22210×16i200005-200305
T=5.40
sub13751-21190
main13751-22220×16i200005-200305
T=5.42
sub13751-21200
main13751-22230×16i200005-200305
T=5.44
sub13751-21210
main13751-22240×16i200005-200305
T=5.46
sub13751-21220
main13751-22250×16i200005-200305
T=5.48
sub13751-21230
main13751-22260×16i200005-200305
T=5.50
sub13751-21240
main13751-22270×16i200005-200305
T=5.52
sub13751-21250
main13751-22280×16i200005-200305
T=5.54
sub13751-21260
main13751-22290×16i200005-200305
T=5.56
sub13751-21270
main13751-22300×16i200005-200305
T=5.58
sub13751-21280
main13751-22310×16i200005-200305
T=5.60
sub13751-21290
main13751-22320×16i200005-200305
T=5.62
sub13751-21300
main13751-22330×16i200005-200305
T=5.64
sub13751-21310
main13751-22340×16i200005-200305
T=5.66
sub13751-21320
main13751-22350×16i200005-200305
T=5.68
sub13751-21330
main13751-22360×16i200005-200305
T=5.70
sub13751-21340
main13751-22370×16i200005-200305
T=5.72
sub13751-21350
main13751-22380×16i200005-200305
T=5.74
sub13751-21360
9010510445
main90105-10445
9011910873
main90119-10873
9151180625
main91511-80625
9164180614
main91641-80614

21 parts on this diagram · 1 diagram in section
