MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21120i1NZFXE..NHW11200005

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-21010i1NZFXE..NHW11200005

NO.1

main12313-21020i1NZFXE..NHW11200005

NO.2

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-21050i1NZFXE..NHW11200005-200305

sub12315-21051

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-21060i1NZFXE..NHW11200005

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-21010i1NZFXE..NHW11200005

12326ABRACKET, ENGINE MOUNTING INSULATOR, LH

main12326-21020i1NZFXE..NHW11200005

12351DAMPER, ENGINE MOUNTING

main12351-21010i1NZFXE..NHW11200005

12363AROD, ENGINE MOVING CONTROL

main12363-21020i1NZFXE..NHW11200005

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21080i1NZFXE..NHW11200005

16630PULLEY ASSY, IDLER

main16630-21020i1NZFXE..NHW11200005-200305

9010510203

main90105-10203

9010510406

main90105-10406

9010510442

main90105-10442

9010510444

main90105-10444

9010510446

main90105-10446

9010510448

main90105-10448

9010514128

main90105-14128

9010514129

main90105-14129

9011610180

main90116-10180

9011610203

main90116-10203

9011612042

main90116-12042

9017910054

main90179-10054

9017910108

main90179-10108

9017912127

main90179-12127

9017914048

main90179-14048

9017914049

main90179-14049

9151160850

main91511-60850

9164180660

main91641-80660

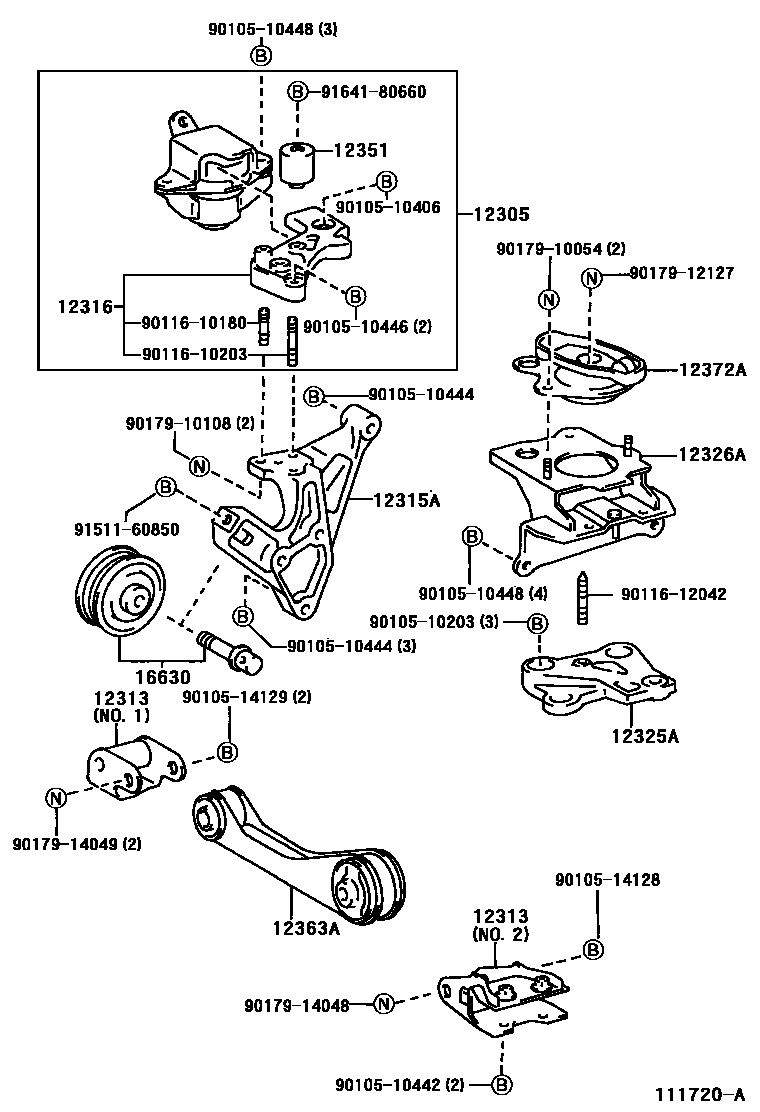

28 parts on this diagram · 1 diagram in section
