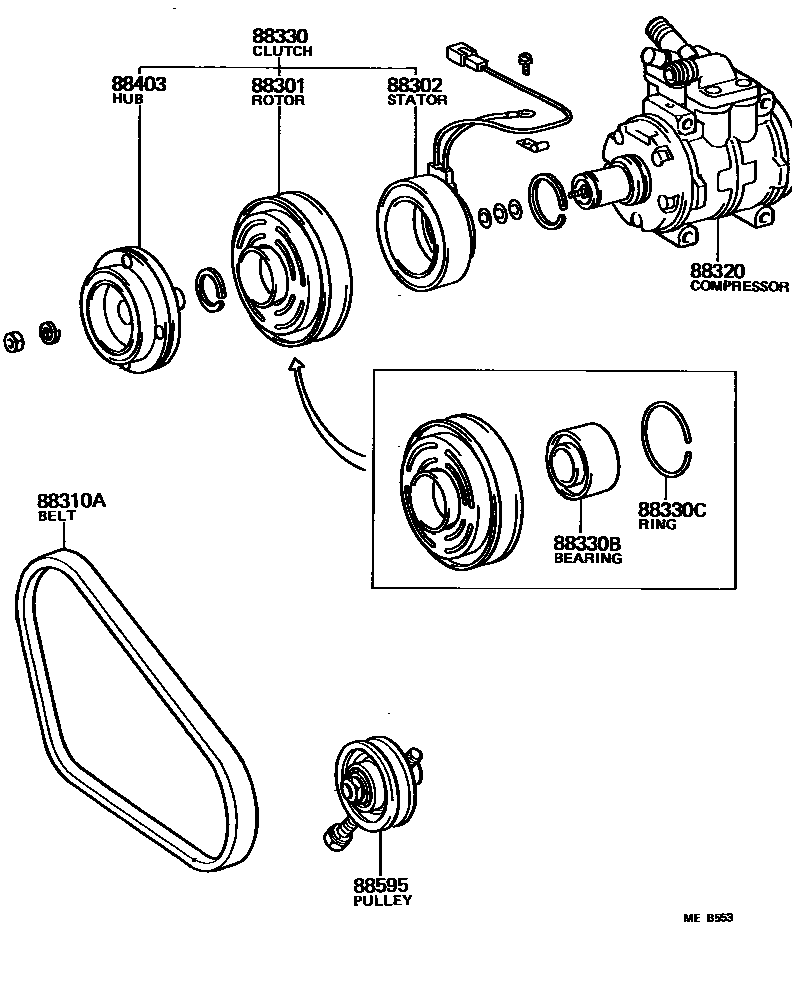

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14030iTA60;TA62..EUG198108-198309

main88412-20070iCA60198204-198309

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iCA60198204-198309

main88411-14060iTA60;TA62..EUG198108-198309

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-50830iCA60198204-198309

main99322-50940iTA60;TA62..EUG198108-198309

88320COMPRESSOR ASSY, COOLER

main88320-14380iTA60;TA62..EUG198108-198309

main88320-20350iCA60198204-198309

88330CLUTCH ASSY, MAGNET

main88410-14110iTA60;TA62..EUG198108-198309

main88410-14120iCA60198204-198309

88330BBEARING, MAGNET CLUTCH

main90099-10133iCA60198204-198309

main90099-10135iTA60;TA62..EUG198108-198309

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iTA60;TA62..EUG198108-198309

main90099-07118iCA60198204-198309

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iCA60198204-198309

sub88403-12030

main88403-14040iTA60;TA62..EUG198108-198309

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-20090iCA60198204-198309

main88440-25010iTA60;TA62..EUG198108-198309

sub88440-28050

9 parts on this diagram · 3 diagrams in section
