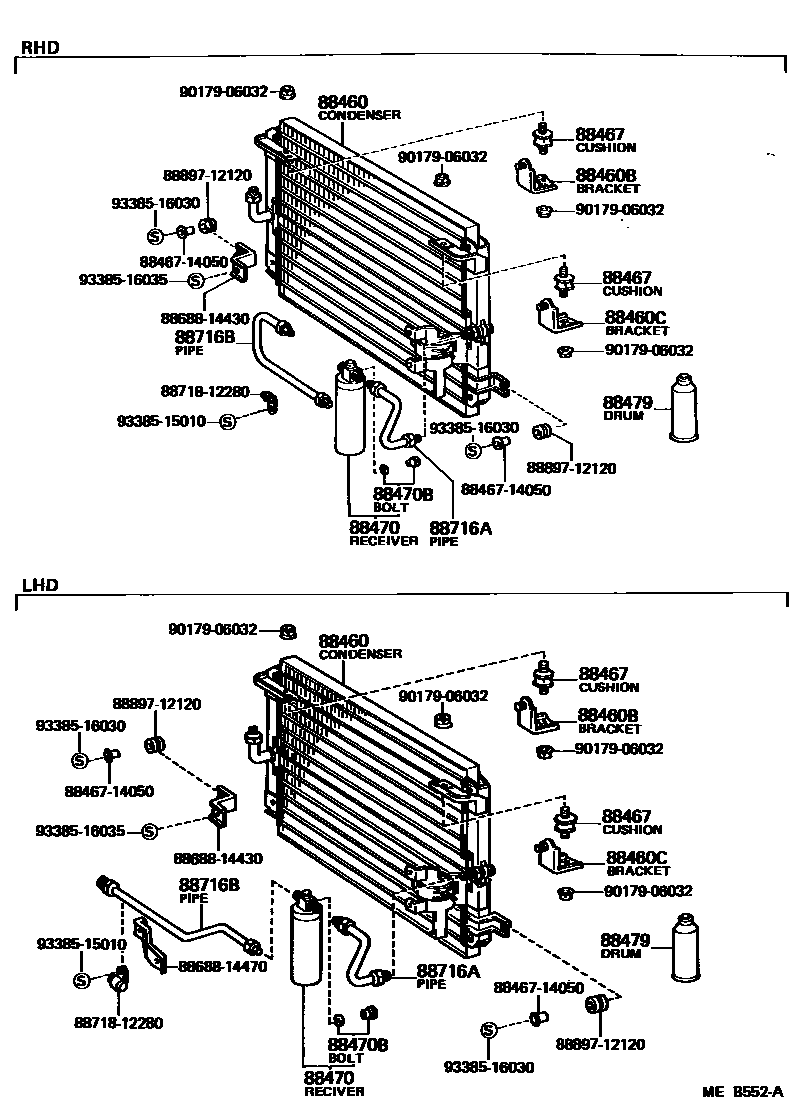

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88460CONDENSER ASSY, COOLER

main88460-14210iCA60,TA60;TA62..EUG198108-198309

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-14410iCA60,TA60;TA62..EUG198108-198309

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-14400iCA60,TA60;TA62..EUG198108-198309

88467CUSHION, COOLER CONDENSER, NO.1

main88467-14060×2iCA60,TA60;TA62..EUG198108-198309

88470RECEIVER & DRYER ASSY, COOLER

main88470-12050iCA60,TA60;TA62..EUG198108-198309

sub88470-14010

88470BBOLT, FUSE

main90099-04579iCA60,TA60;TA62..EUG198108-198309

sub88475-12020

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iCA60,TA60;TA62..EUG198108-198309

400G

sub90986-02004

sub90986-02005

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-14730iCA60,TA60;TA62..EUG198108-198309

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-14740iTA6#..RHD198108-198309

main88716-14750iTA60..LHD;TA62..LHD..EUG198108-198309

main88716-14850iCA60..LHD198204-198309

main88716-14860iCA60..RHD198204-198309

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8868814430BRACKET, COOLER DIAPHRAGM

main88688-14430

8868814470BRACKET, COOLER DIAPHRAGM

main88688-14470

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8889712120VALVE, COOLER MAGNET

main88897-12120

9017906032

main90179-06032

9338515010

main93385-15010

9338516030

main93385-16030

9338516035

main93385-16035

18 parts on this diagram · 3 diagrams in section
