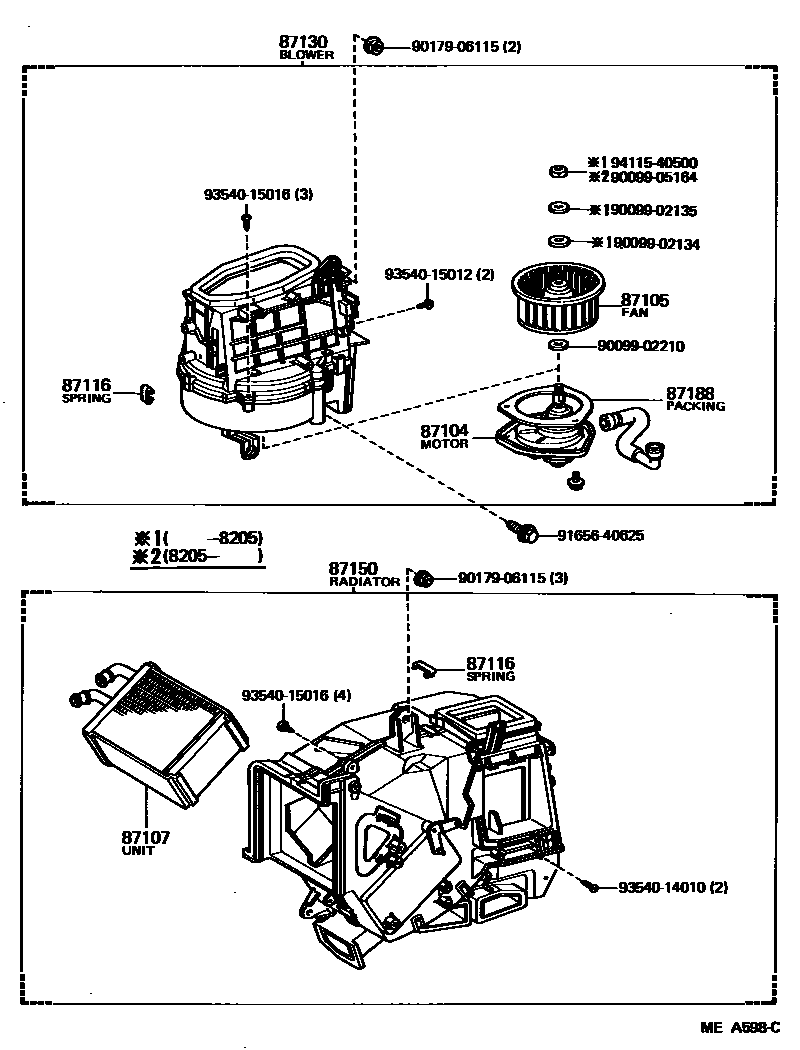

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-14100iCA60,TA6#..LHD198108-198309

sub87104-32010

main87104-24010iCA60,TA6#..RHD198108-198309

sub87104-32020

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iCA60,TA6#..LHD198108-198309

main87105-14030iCA60,TA6#..RHD198108-198309

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-14110iTA6#..RHD198108-198309

main87107-14120iCA60,TA6#..LHD198108-198309

main87107-14140iTA62..(DLX,GL)..SDZ;CA60,TA6#..LHD..(EUG,SDN)198108-198309

HEAVY DUTY HEATER

main87107-20280iCA60..RHD198204-198309

87116SPRING, HEATER CASE FASTENING

main87116-14010×10iCA60,TA6#198108-198309

87130BLOWER ASSY, HEATER, FRONT

main87130-14070iTA6#..RHD198108-198204

main87130-14071iCA60,TA6#..RHD198204-198309

main87130-14080iTA6#..LHD198108-198204

main87130-14081iCA60,TA6#..LHD198204-198309

87150RADIATOR ASSY, HEATER

main87150-14160iTA6#..RHD198108-198309

main87150-14170iTA62..(DLX,GL)..SDZ;CA60,TA6#..LHD..(EUG,SDN)198108-198309

HEAVY DUTY HEATER

main87150-14210iCA60,TA6#..LHD198108-198309

main87150-20270iCA60..RHD198204-198309

87188PACKING, HEATER BLOWER MOTOR

main87127-14010iCA60,TA6#198108-198309

9009902134

main90099-02134

9009902135

main90099-02135

9009902210

main90099-02210

9009905164

main90099-05164

9017906115

main90179-06115

9165640625

main91656-40625

9354014010

main93540-14010

9354015012

main93540-15012

9354015016

main93540-15016

9411540500

main94115-40500

17 parts on this diagram · 2 diagrams in section
