HORN

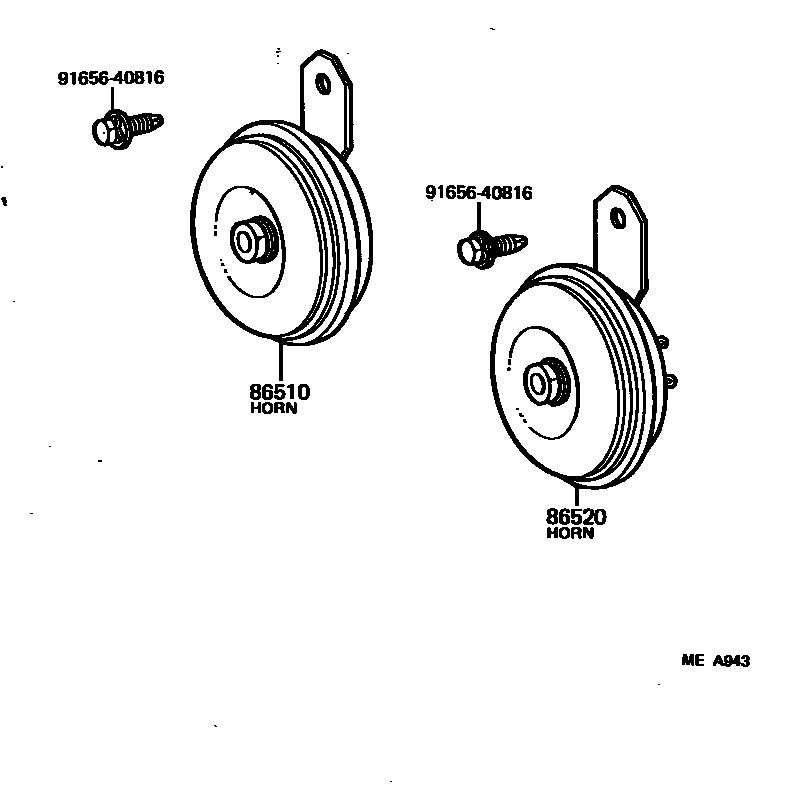

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-14110i¥3,990198108-198301
main86510-14150i198305-198309
W/MW/SW RADIO
main86510-14160i¥3,630198301-198305
W/MW/SW RADIO
sub86510-14150
main86510-22050i¥3,620198108-198301
DENSO
sub86510-30351¥3,790
main86510-22060i¥3,790198108-198301
MARUKO
sub86510-12H90¥5,100
main86510-22070i¥3,620198301-198305
DENSO
sub86510-22120¥4,460
main86510-22080i¥3,620198301-198305
MARUKO
sub86510-14H91¥3,990
main86510-22090i¥4,040198205-198301
W/MW/SW RADIO
sub86510-12430¥3,440
main86510-22120i¥4,460198305-198309
DENSO
sub86510-14H93¥3,440
main86510-22130i¥3,620198305-198309
MARUKO
sub86510-14H91¥3,990
main86510-32010i¥3,980198301-198309
sub86510-32011¥3,970
86520HORN ASSY, LOW PITCHED
main86520-14060i¥3,990198108-198301
main86520-14110i¥3,870198305-198309
W/MW/SW RADIO
main86520-14120i¥3,630198301-198305
W/MW/SW RADIO
sub86520-14110¥3,870
main86520-22050i¥3,820198108-198301
DENSO
sub86520-30351¥3,460
main86520-22060i¥3,810198108-198301
MARUKO
main86520-22070i¥3,620198301-198305
DENSO
sub86520-22120¥4,460
main86520-22080i198301-198305
MARUKO
main86520-22090i¥4,240198205-198301
W/MW/SW RADIO
sub86520-12431¥3,440
main86520-22120i¥4,460198305-198309
DENSO
sub86520-14H93¥3,440
main86520-22130i198305-198309
MARUKO
sub86520-22120¥4,460
main86520-32010i¥3,980198301-198309
sub86520-32011¥3,970
9165640816
main91656-40816¥140

3 parts on this diagram · 1 diagram in section
