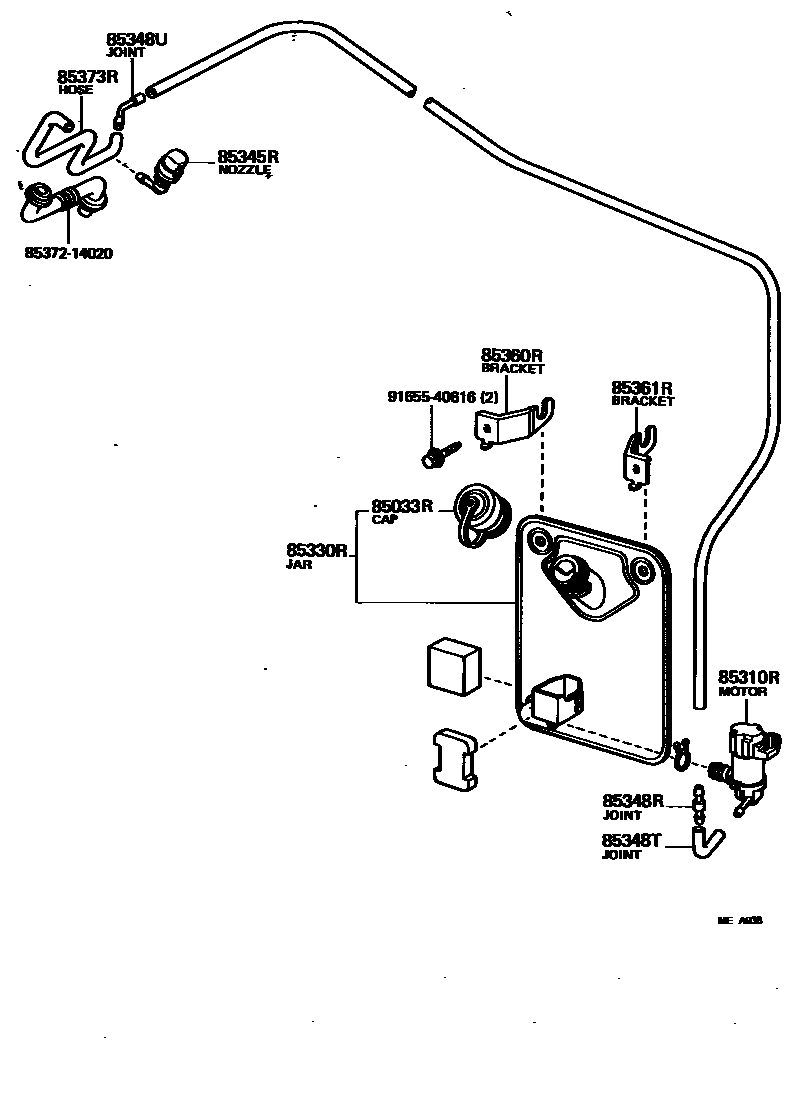

REAR WASHER
85033RCAP ASSY, REAR WASHER
85330RJAR ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
sub85349-89122
85348TJOINT, REAR WASHER HOSE, NO.2
sub85355-14481
85348UJOINT, REAR WASHER HOSE, NO.3
85360RBRACKET ASSY, REAR WASHER
85361RHOLDER, REAR WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1800(*H,L=300)
L=1800(*H,L=280)
8537214020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85372-14020
9165540616
main91655-40616
12 parts on this diagram · 2 diagrams in section
