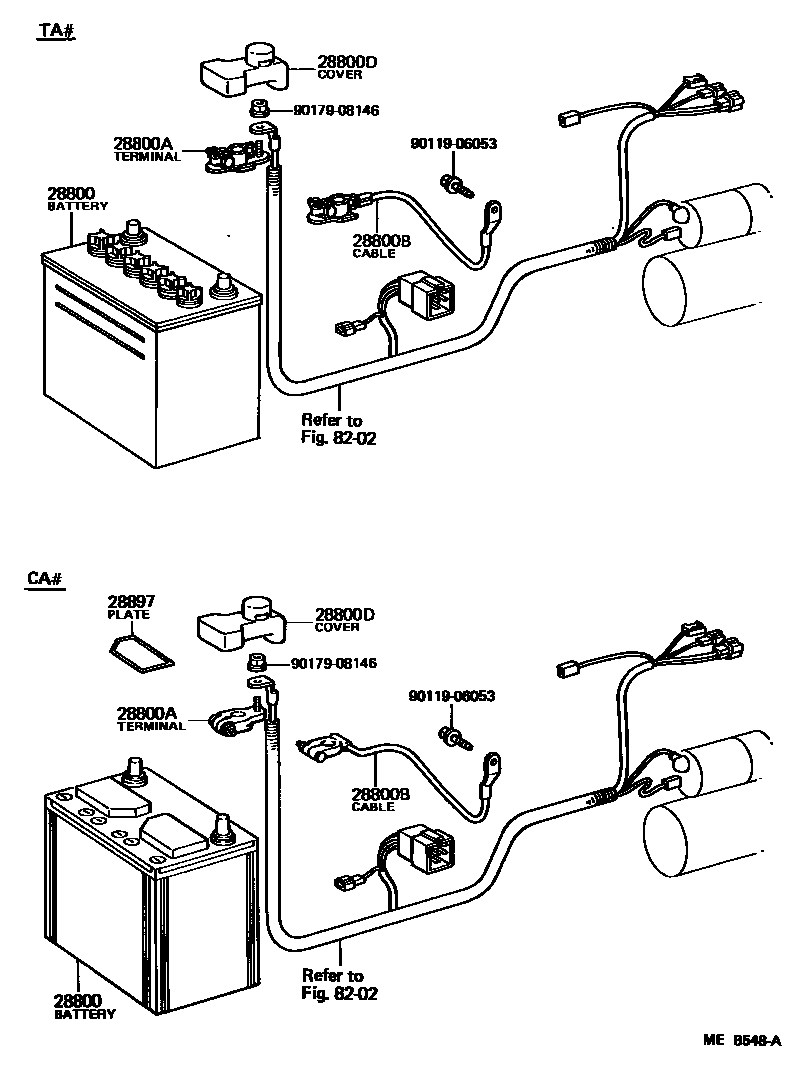

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26040i2T..TA60..GEN198108-198202

34B19L,NS40ZAL

sub28800-26050

main28800-31031i2T,3T..TA6#198108-198309

32C24L,N40L

sub28800-31021

main28800-43070i2T,3T#..TA6#198108-198309

55D23L-MF

main28800-54030i1C..CA60198204-198309

95D31L,NX120-7L

sub28800-64180

main28800-54200i1C..CA60198305-198309

80D26L,NX110-5L-MF

sub28800-64130

main28800-70011i2T..TA60..GEN198202-198309

34B19L,NS40ZAL

sub28800-74060

28800ATERMINAL, BATTERY POSITIVE

main90982-05005i1C..CA60198204-198309

sub90982-05030

main90982-05018i2T..TA60..GEN198108-198309

NS40ZAL

sub90982-05028

main90982-05022i2T,3T#..TA6#198108-198309

N40L,55D23L-MF

sub90982-05030

28800BCABLE, BATTERY TO GROUND

main90982-02135i2T..TA60..GEN198108-198204

NS40ZAL

sub90982-02222

main90982-02136i2T,3T#..TA6#198108-198204

N40L,55D23L-MF

sub90982-02224

main90982-02222i2T..TA60..GEN198204-198309

NS40ZAL

main90982-02224i2T,3T#..TA6#198204-198309

N40L,55D23L-MF

main90982-02239i1C..CA60198204-198309

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i1C,2T,3T#..CA60,TA6#198108-198309

28897PLATE, BATTERY CAUTION

main28897-43010i1C..CA60198204-198301

55D23L-MF

8202

9011906053

main90119-06053

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
