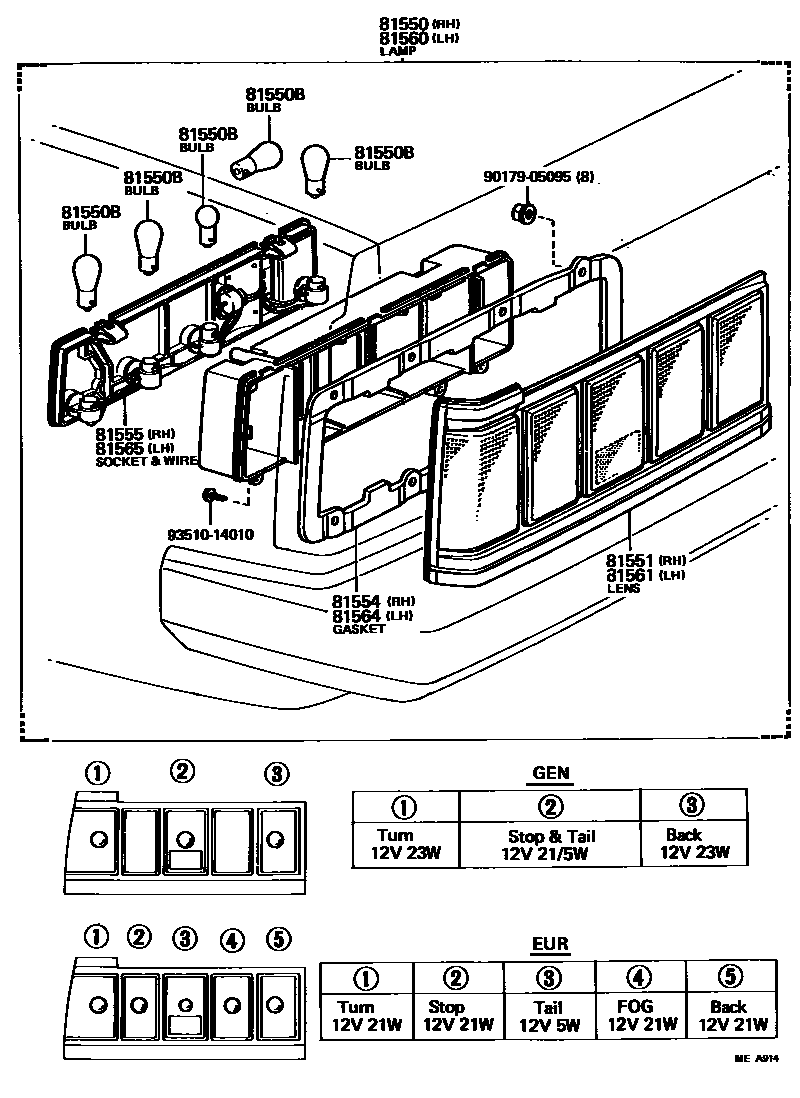

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80098iCA60,TA6#..SED..EUR198108-198309

sub81550-14420

main81550-80108iTA60..SED..GEN198108-198309

sub81550-14550

main81550-80111iCA60,TA6#..WG198108-198309

main81550-80114iTA6#..CP198108-198309

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11050×2iCA60,TA6#..SED..EUR198108-198309

12V 5W,12V 5W

main99132-11210×8iCA60,TA6#..CP,WG198108-198309

12V 21W,12V 21W

main99132-11230×4iTA60..SED..GEN198108-198309

12V 23W,12V 23W

main99132-21210×4iTA60..GEN;CA60,TA6#..(CP,WG)..EUR198108-198309

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-14420iCA60,TA6#..SED..EUR198108-198309

main81551-14550iTA60..SED..GEN198108-198309

main81551-14600iTA6#..CP198108-198309

main81551-91C01iCA60,TA6#..WG198108-198309

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-14550iCA60,TA6#..SED198108-198309

main81554-91C01iCA60,TA6#..WG198108-198309

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-14420iCA60,TA6#..SED..EUR198108-198309

main81555-14550iTA60..SED..GEN198108-198309

main81555-14600iTA6#..CP198108-198309

main81555-91C02iCA60,TA6#..WG198108-198309

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80102iCA60,TA6#..SED..EUR198108-198309

sub81560-14420

main81560-80112iTA60..SED..GEN198108-198309

sub81560-14550

main81560-80115iCA60,TA6#..WG198108-198309

sub81560-91C02

main81560-80118iTA6#..CP198108-198309

81561LENS, REAR COMBINATION LAMP, LH

main81561-14420iCA60,TA6#..SED..EUR198108-198309

main81561-14550iTA60..SED..GEN198108-198309

main81561-14590iTA6#..CP198108-198309

main81561-91C01iCA60,TA6#..WG198108-198309

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-14550iCA60,TA6#..SED198108-198309

main81564-91C01iCA60,TA6#..WG198108-198309

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-91C02iCA60,TA6#..WG198108-198309

main81565-14420iCA60,TA6#..SED..EUR198108-198309

main81565-14550iTA60..SED..GEN198108-198309

main81565-14590iTA6#..CP198108-198309

9017905095

main90179-05095

9351014010

main93510-14010

11 parts on this diagram · 3 diagrams in section
