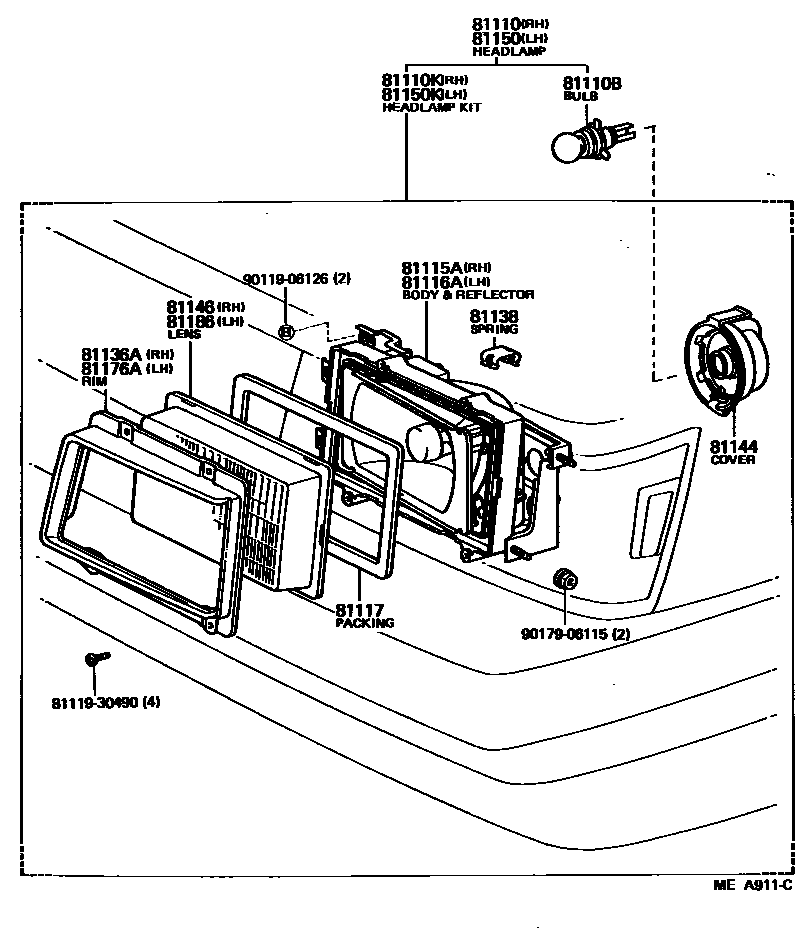

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-80128iCA60,TA60..LHD198108-198309

main81110-80129iCA60,TA60..RHD198108-198309

main81110-80140iCA60,TA6#..LHD198108-198309

HALOGEN,WHITE

main81110-80141iCA60,TA60..LHD;TA62..LHD..EUG198108-198309

HALOGEN,YELLOW

main81110-80142iCA60,TA6#..RHD198108-198309

HALOGEN,WHITE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iCA60,TA60198108-198309

12V 45/40W,WHITE,12V 45/40W

main90981-13015iCA60,TA6#198108-198309

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

sub90981-13058

main90981-13016iCA60,TA60..LHD;TA62..LHD..EUG198108-198309

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

sub90981-13H01

81110KHEADLAMP KIT, W/O SEALED BEAM, RH

main04817-14040iCA60,TA6#..LHD198108-198309

HALOGEN

main04817-14050iCA60,TA6#..RHD198108-198309

HALOGEN

81115ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

main81115-14650iCA60,TA60..LHD198108-198309

main81115-14660iCA60,TA60..RHD198108-198309

main81115-14820iCA60,TA6#..LHD198108-198309

HALOGEN

main81115-14840iCA60,TA6#..RHD198108-198309

HALOGEN

81116ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

main81116-14650iCA60,TA60..LHD198108-198309

main81116-14660iCA60,TA60..RHD..(DLX,XE)198108-198309

main81116-14820iCA60,TA6#..LHD198108-198309

HALOGEN

main81116-14840iCA60,TA6#..RHD198108-198309

HALOGEN

81117PACKING, HEADLAMP HOUSING

main81147-30490iCA60,TA6#198108-198309

81136ARIM, HEADLAMP, RH

main81112-14820iCA60,TA6#198108-198309

81138SPRING, HEADLAMP

main81138-20550iCA60,TA6#198108-198309

81144COVER, HEADLAMP, NO.1

main81139-30490iCA60,TA6#198108-198309

81146LENS, HEADLAMP, RH

main81146-14221iCA60,TA60..LHD198108-198309

main81146-14311iCA60,TA60..RHD198108-198309

main81146-14461iCA60,TA6#..LHD198108-198309

HALOGEN

main81146-14471iCA60,TA6#..RHD198108-198309

HALOGEN

81150HEADLAMP ASSY, LH

main81150-80125iCA60,TA60..LHD198108-198309

main81150-80126iCA60,TA60..RHD198108-198309

main81150-80137iCA60,TA6#..LHD198108-198309

HALOGEN,WHITE

main81150-80138iCA60,TA60..LHD;TA62..LHD..EUG198108-198309

HALOGEN,YELLOW

main81150-80139iCA60,TA6#..RHD198108-198309

HALOGEN,WHITE

81150KHEADLAMP KIT, W/O SEALED BEAM, LH

main04818-14040iCA60,TA6#..LHD198108-198309

HALOGEN

main04818-14050iCA60,TA6#..RHD198108-198309

HALOGEN

81176ARIM, HEADLAMP, LH

main81152-14820iCA60,TA6#198108-198309

81186LENS, HEADLAMP, LH

main81186-14221iCA60,TA60..LHD198108-198309

main81186-14311iCA60,TA60..RHD..(DLX,XE)198108-198309

main81186-14461iCA60,TA6#..LHD198108-198309

HALOGEN

main81186-14471iCA60,TA6#..RHD198108-198309

HALOGEN

8111930490SCREW, HEADLAMP

main81119-30490

9011906126

main90119-06126

9017906115

main90179-06115

17 parts on this diagram · 1 diagram in section
