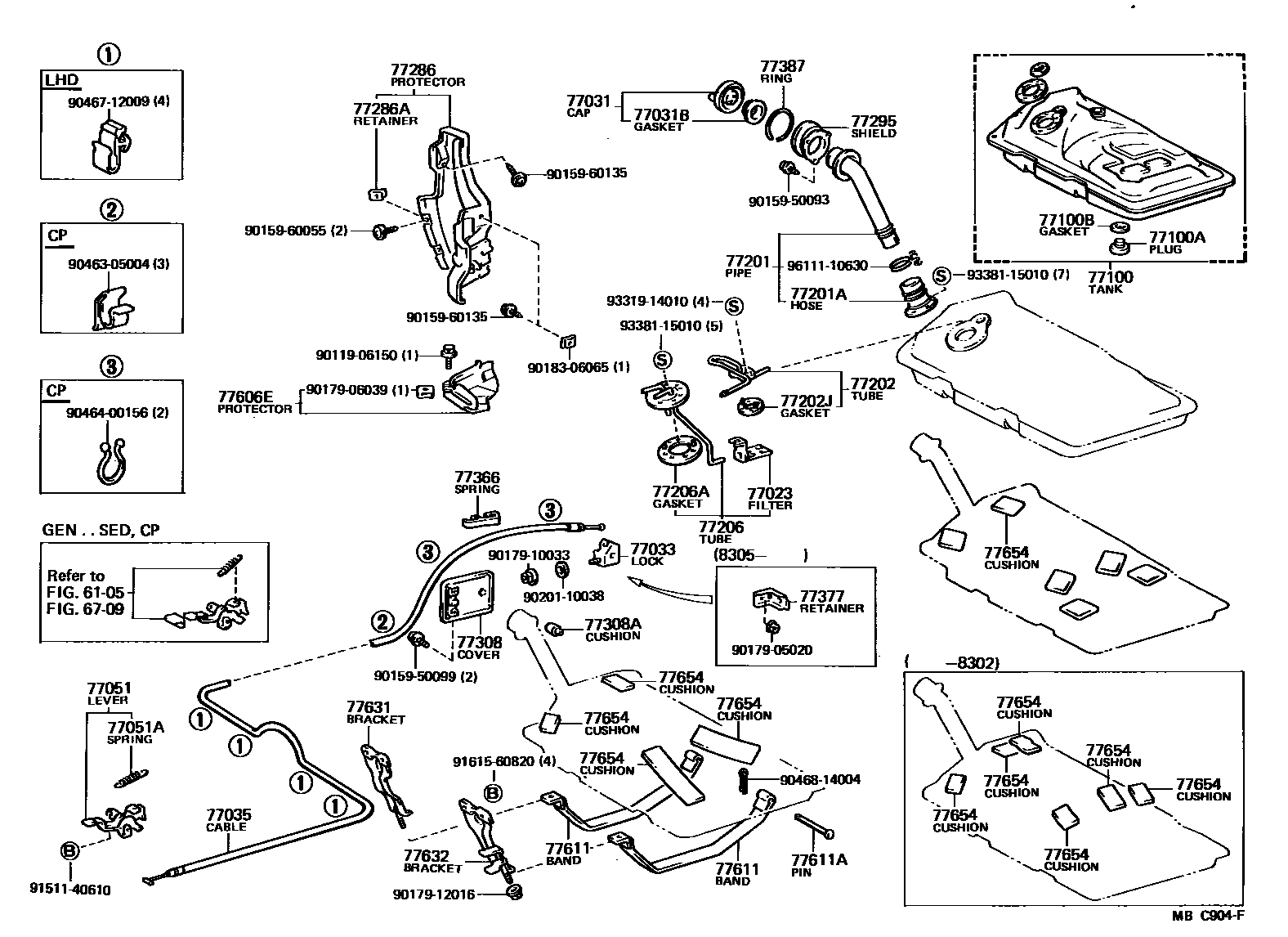

FUEL TANK & TUBE

0001 1 0002 1

6105

6709

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iTA6#¥920198108-198212

main77023-14030iTA6#¥1,020198212-198309

main77023-22040iCA60¥1,050198204-198212

main77023-32010iCA60¥900198212-198309

77031CAP ASSY, FUEL TANK

main77310-12100iCA60,TA6#¥2,320198108-198309

main77310-35061iCA60¥2,320198206-198309

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iCA60,TA6#¥310198108-198309

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iCA60,TA6#¥1,350198304-198309

sub77037-90K00¥1,610

main77037-24010iCA60,TA6#¥1,940198108-198304

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14070iCA60,TA6#..(SED,WG)..LHD¥2,230198108-198309

main77035-14110iCA60,TA6#..RHD..(DLX,GL)¥1,620198108-198309

sub77035-14090¥1,690

main77035-14150iTA6#..RHD..XE198108-198309

main77035-14160iTA6#..CP..LHD198108-198309

77051LEVER SUB-ASSY, FUEL LID OPEN

main77306-14010iTA60..WG..RHD..EUG¥2,840198108-198309

main77306-14020iCA60,TA6#..WG..LHD..EUR¥2,840198108-198309

77051ASPRING, TENSION (FOR FUEL LID LEVER)

main90506-09004iCA60,TA6#..WG..EUR¥200198108-198309

77100TANK ASSY, FUEL

main77001-19095iTA6#¥50,800198108-198307

sub77001-19096¥61,300

sub77012-14023¥2,100

main77001-19096iTA6#¥61,300198307-198309

main77001-29065iCA60¥47,700198204-198211

PLUG OD=24

sub77001-29066¥47,700

main77001-29066iCA60¥47,700198211-198302

PLUG OD=20

sub77001-29068¥47,500

sub77012-14023¥2,100

main77001-29067iCA60198302-198307

PLUG OD=20

sub77001-29066¥47,700

main77001-29068iCA60¥47,500198307-198309

PLUG OD=20

77100APLUG(FOR FUEL TANK)

main90341-20003iCA60,TA6#¥380198211-198309

OD=20

sub90341-20004¥360

main90341-24036iCA60,TA6#¥890198108-198211

OD=24

77100BGASKET(FOR FUEL TANK)

main90430-20006iCA60,TA6#¥210198211-198309

ID=20.3

main90430-24047iCA60,TA6#¥250198108-198211

ID=24

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14200iCA60,TA6#¥7,900198108-198309

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-14090iCA60,TA6#¥11,000198108-198309

77202TUBE SUB-ASSY, BREATHER

main77012-14022iCA60,TA6#¥2,110198108-198307

sub77012-14023¥2,100

main77012-14023iCA60,TA6#¥2,100198307-198309

77202JGASKET (FOR BREATHER TUBE)

main77179-14030iCA60,TA6#¥230198108-198309

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-14041iTA6#..EUG¥3,100198306-198309

W/RETURN

main77203-14041iTA60..LHD..GEN¥3,100198306-198309

MIDDLE EAST

main77203-14061iTA60..GEN;TA62..SDN,SDZ¥3,320198108-198309

main77203-14100iTA6#..EUG¥4,040198202-198306

MIDDLE EAST

main77203-14100iTA6#..EUG¥4,040198108-198306

W/RETURN

main77203-14110iCA60¥6,200198204-198309

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iCA60,TA6#¥330198108-198309

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-14070iCA60,TA6#¥2,160198108-198309

77286ARETAINER, FUEL FILLER PIPE PROTECTOR

main90183-06002iCA60,TA6#¥190198108-198309

77295SHIELD, FUEL FILLER PIPE

main77034-14010iCA60,TA6#¥2,210198108-198309

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-14040iCA60,TA6#¥2,680198108-198309

main77350-91D01iTA60..GEN¥6,500198305-198309

W/FUEL LID OPENER

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05009iCA60,TA6#¥230198108-198309

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iCA60,TA6#¥260198108-198309

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iTA60..GEN¥930198305-198309

77387RING, FUEL INLET BOX

main77391-14020iCA60,TA6#¥160198108-198309

77606EPROTECTOR, FUEL TANK, NO.4

main77641-14080iCA60,TA6#¥3,100198108-198309

77611BAND, FUEL TANK

main77601-14060iCA60,TA6#¥2,350198108-198309

sub77601-14050¥2,350

77611APIN (FOR FUEL TANK BAND)

main90240-08020iCA60,TA6#¥250198108-198309

77631BRACKET, FUEL TANK, NO.1

main77613-14021iTA6#¥1,470198108-198112

sub77613-14022¥1,470

main77613-14022iCA60,TA6#¥1,470198112-198309

77632BRACKET, FUEL TANK, NO.2

main77614-14021iCA60,TA6#¥1,820198108-198309

77654CUSHION, FUEL TANK, NO.2

main77652-14060iCA60,TA6#198108-198302

120X70

main77652-14080iCA60,TA6#198302-198309

main77652-20010iCA60,TA6#¥650198108-198302

120X120

9011906150

main90119-06150¥250

9015950093

main90159-50093¥120

9015950099

main90159-50099¥110

9015960055

main90159-60055¥240

9015960135

main90159-60135¥330

9017905020

main90179-05020¥140

9017906039

main90179-06039¥260

9017910033

main90179-10033¥130

9017912016

main90179-12016¥140

9018306065

main90183-06065¥110

9020110038

main90201-10038¥170

9046305004

main90463-05004¥200

9046400156

main90464-00156¥130

9046712009

main90467-12009¥470

9046814004

main90468-14004¥80

9151140610

main91511-40610¥140

9161560820

main91615-60820¥140

9331914010

main93319-14010¥70

9338115010

main93381-15010¥60

9611110630

main96111-10630¥230

52 parts on this diagram · 2 diagrams in section
