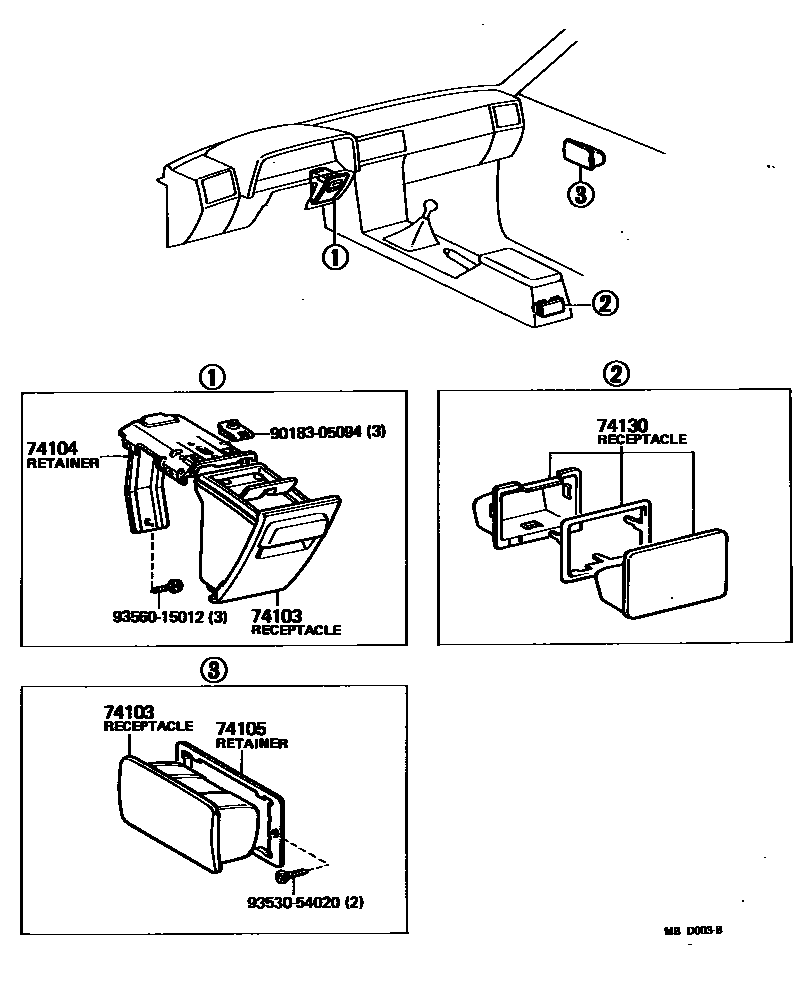

ASH RECEPTACLE

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74102-14100-01iCA60,TA6#198108-198206

*IP,BLACK,BLACK,TRIM2#

sub74102-14101

main74102-14100-04iCA60,TA6#..CP,SED198108-198206

*IP,BLUE,BLUE,TRIM8#

sub74102-14101

main74102-14100-06iCA60,TA6#198108-198206

*IP,DARK BROWN,BROWN,TRIM4#

sub74102-14101

main74102-14101-01iCA60,TA6#198206-198309

*IP,BLACK,BLACK,TRIM2#

main74102-14101-04iCA60,TA6#..CP,SED198206-198309

*IP,BLUE,BLUE,TRIM8#

main74102-14101-06iCA60,TA6#198206-198309

*IP,DARK BROWN,BROWN,TRIM4#

main74130-14020-01iCA60,TA6#198108-198309

DOOR,BLACK,BLACK,TRIM2#

sub74130-14020

sub74130-95401

main74130-14020-14iCA60,TA6#..CP,SED198108-198309

DOOR,BLUE,BLUE,TRIM8#

sub74130-14020

sub74130-95401

main74130-14020-36iCA60,TA6#198108-198309

DOOR,DARK BROWN,BROWN,TRIM4#

sub74130-14020

sub74130-95401

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-14120iCA60,TA6#198108-198309

74105RETAINER SUB-ASSY, ASH RECEPTACLE, NO.2

main67641-30010iCA60,TA6#198108-198309

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-01iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

sub74109-20080

sub74130-12040

main74130-12040-06iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

sub74109-20080

sub74130-12040

main74130-12040-14iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

sub74109-20080

sub74130-12040

9018305094

main90183-05094

9353054020

main93530-54020

9356015012

main93560-15012

7 parts on this diagram · 1 diagram in section
