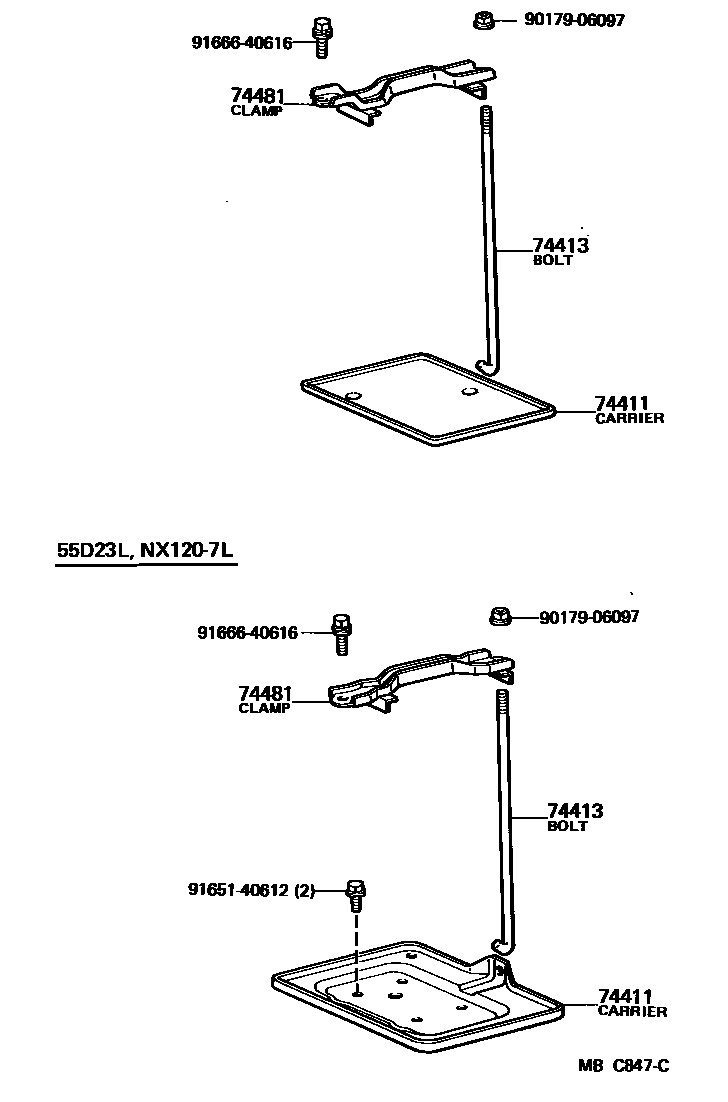

BATTERY CARRIER

74411CARRIER, BATTERY

main74411-14070iCA60,TA6#198108-198309

55D23L,NX110-5L

main74411-14080iCA60198204-198309

NX120-7L

main74431-14020iTA60;TA62..EUG198108-198309

N40L

main74431-14050iTA60..GEN198108-198309

NS40ZAL

74413BOLT, BATTERY CLAMP

main74451-14010iTA60;TA62..EUG198108-198309

NS40ZAL,N40L

main74451-30060iCA60,TA6#198108-198309

55D23L,NX120-7L,NX110-5L

74481CLAMP, BATTERY HOLD DOWN

main74404-14220iTA60..GEN198108-198309

NS40ZAL

main74404-14230iTA60;TA62..EUG198108-198309

N40L

main74404-14240iCA60,TA6#198108-198309

55D23L,NX110-5L

main74404-14280iCA60198204-198309

NX120-7L

9017906097

main90179-06097

9165140612

main91651-40612

9166640616

main91666-40616

6 parts on this diagram · 1 diagram in section
