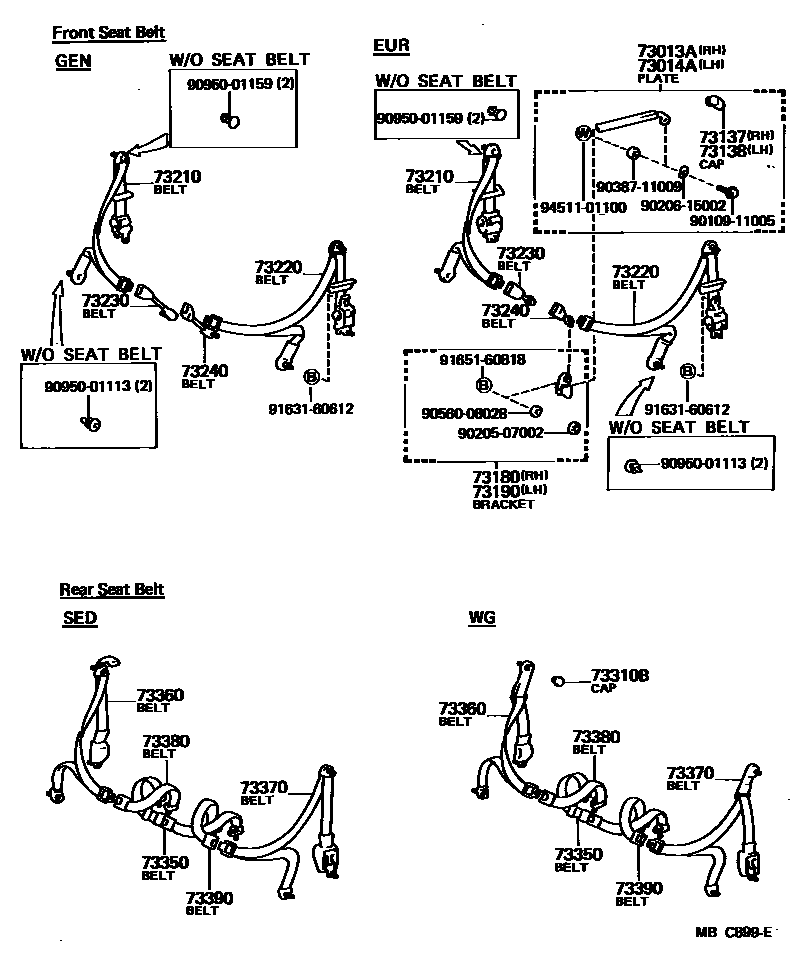

SEAT BELT & CHILD RESTRAINT SEAT
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
73310BCAP (FOR REAR SEAT OUTER BELT)
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
9010911005
main90109-11005
9020507002
main90205-07002
9020615002
main90206-15002
9038711009
main90387-11009
9056008028
main90560-08028
9095001113
main90950-01113
9095001159
main90950-01159
9163160612
main91631-60612
9165160818
main91651-60818
9451101100
main94511-01100
26 parts on this diagram · 2 diagrams in section
