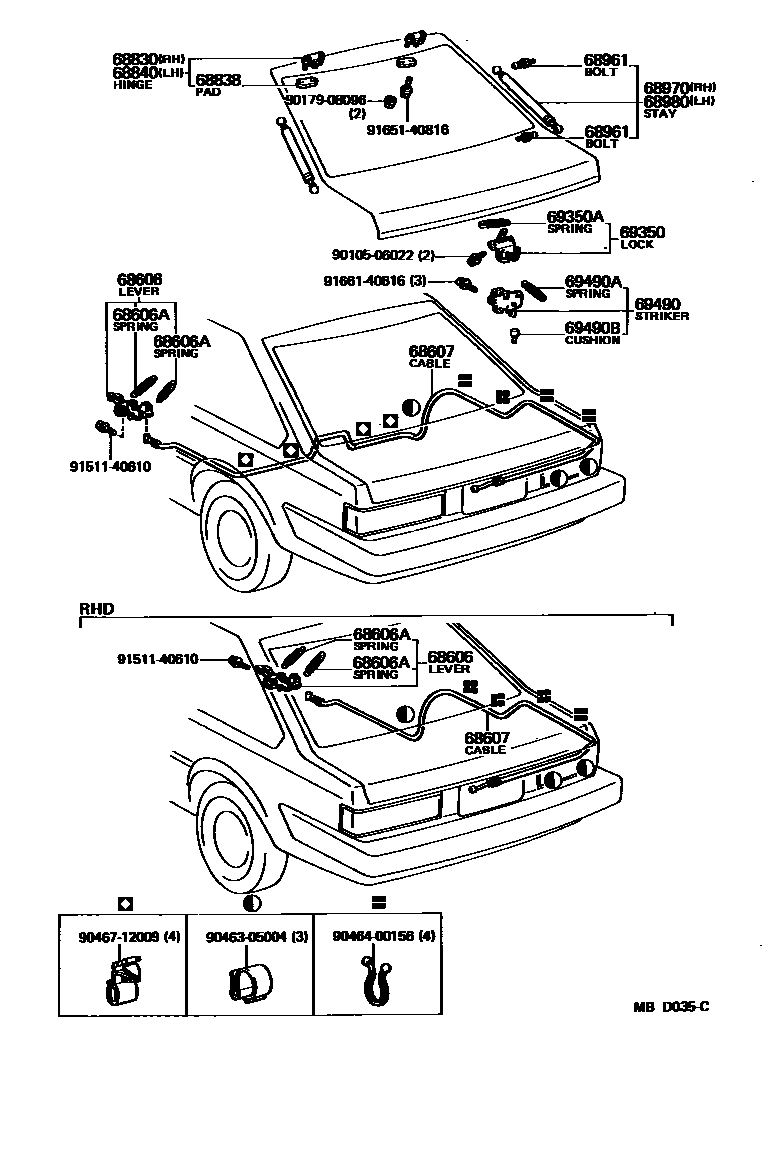

BACK DOOR LOCK & HANDLE

0001 1 0002 1

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-14030iTA60..RHD..XE198108-198309

main64606-14050iTA60..LHD..XE198108-198309

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004iTA60..XE198108-198309

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-14170iTA60..RHD..XE198108-198309

main64607-14180iTA60..LHD..XE198108-198309

68830HINGE ASSY, BACK DOOR, RH

main68801-14030iTA6#..CP198108-198212

sub68801-20020

main68801-20020iTA6#..CP198212-198309

sub68801-20021

main68810-91C01iCA60,TA6#..WG198108-198309

sub68810-91C02

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021iTA6#..CP198108-198309

sub68838-14022

main68838-15010iCA60,TA6#..WG198108-198309

sub68838-15011

68840HINGE ASSY, BACK DOOR, LH

main68801-14030iTA6#..CP198108-198212

sub68801-20020

main68801-20020iTA6#..CP198212-198309

sub68801-20021

main68810-91C01iCA60,TA6#..WG198108-198309

sub68810-91C02

68961BOLT, BACK DOOR STAY

main68961-14010iCA60,TA6#..WG198108-198309

sub68961-12010

main68961-14020iTA6#..CP198108-198309

sub68961-16010

68970STAY ASSY, BACK DOOR, RH

main68950-19195iTA6#..CP..EUR198108-198309

W/RR WIPER

main68950-19205iTA6#..CP..EUR198108-198309

W/RR WIPER

main68950-19235iCA60,TA6#..WG198108-198305

main68950-19285iTA60..XE198108-198309

main68950-19485iCA60,TA6#..WG198305-198309

68980STAY ASSY, BACK DOOR

main68950-19195iTA6#..CP..EUR198108-198309

W/RR WIPER

main68950-19205iTA60..XE198108-198309

W/RR WIPER

main68950-19285iTA60..XE198108-198309

main68960-19125iCA60,TA6#..WG198108-198305

main68960-19215iCA60,TA6#..WG198305-198309

69350LOCK ASSY, BACK DOOR

main69350-14031iTA6#..CP198108-198309

sub69350-14041

main69350-14041iTA60..XE198108-198309

W/OPENER

main69350-91C01iCA60,TA6#..WG198108-198309

69350ASPRING(FOR BACK DOOR LOCK)

main90506-08020iTA6#..CP198108-198309

69490STRIKER ASSY, BACK DOOR LOCK

main69430-14070iTA60..XE198108-198309

W/OPENER

sub69430-14050

main69430-14080iTA6#..CP198108-198309

sub69430-14060

main69430-91C01iCA60,TA6#..WG198108-198309

69490ASPRING(FOR BACK DOOR LOCK STRIKER)

main90501-07484iTA6#..CP198108-198309

WD=0.7

main90506-08001iTA60..XE198108-198309

WD=0.8,W/OPENER

69490BCUSHION(FOR BACK DOOR LOCK STRIKER)

main90541-06002iCA60,TA6#..WG198108-198309

sub90541-06019

main90541-06010iTA6#..CP198108-198309

9010506022

main90105-06022

9017908096

main90179-08096

9046305004

main90463-05004

9046400156

main90464-00156

9046712009

main90467-12009

9151140610

main91511-40610

9165140816

main91651-40816

9166140616

main91661-40616

22 parts on this diagram · 2 diagrams in section
