FRONT DOOR PANEL & GLASS

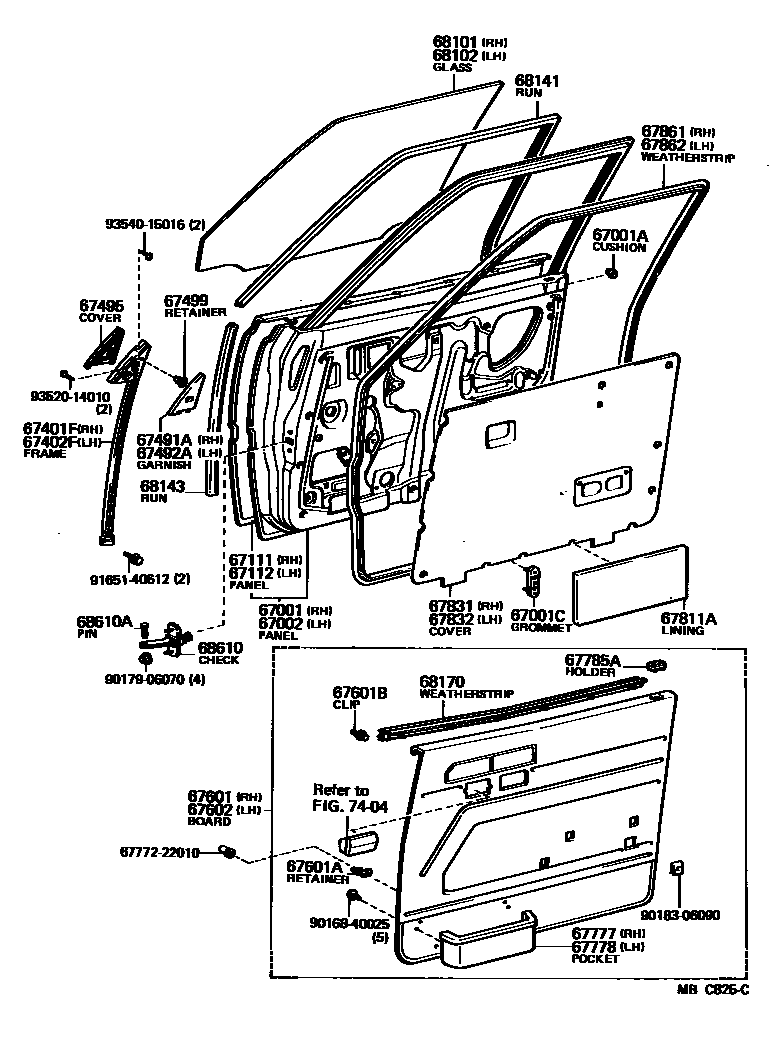

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-14140i198108-198309
main67001-14280i198108-198209
main67001-14300i198108-198209
67001ACUSHION, FRONT DOOR PANEL
main90541-09006×4i198108-198309
67001CGROMMET(FOR FRONT DOOR PANEL)
main90541-07011×2i198108-198309
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-14240i198108-198309
main67002-14310i198108-198209
main67002-14330i198209-198309
67111PANEL, FRONT DOOR, OUTER RH
main67111-14160i198108-198309
main67111-14190i198108-198209
main67111-14210i198108-198209
67112PANEL, FRONT DOOR, OUTER LH
main67112-14170i198108-198309
main67112-14200i198209-198309
main67112-14220i198108-198209
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
main67401-14120i198108-198309
main67401-14150i198305-198309
sub67401-14210
main67401-14180i198108-198309
W/DOOR MIRROR
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
main67402-14120i198108-198309
main67402-14150i198108-198305
sub67402-14200
main67402-14180i198108-198309
W/DOOR MIRROR
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-14030i198108-198309
main67491-14040i198108-198309
W/*RCM
main67491-14090i198108-198309
W/*RCM
main67491-14100i198108-198309
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-14030i198108-198309
main67492-14040i198108-198309
W/*RCM
main67492-14090i198108-198309
W/*RCM
main67492-14100i198108-198309
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
main67495-14030i198108-198309
RH
main67495-14040i198108-198309
RH
sub67495-14070
main67496-14030i198108-198309
LH
main67496-14040i198108-198309
LH
sub67496-14070
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-30010×2i198108-198309
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-1B370-01i198108-198309
BLACK,BLACK,TRIM2#
main67610-1B370-04i198108-198309
BLUE,BLUE,TRIM8#
main67610-1B370-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67610-1B380-01i198108-198309
BLACK,BLACK,TRIM2#
main67610-1B380-04i198108-198309
BLUE,BLUE,TRIM8#
main67610-1B380-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67610-1B390-01i198108-198309
BLACK,BLACK,TRIM2#
main67610-1B390-04i198108-198309
BLUE,BLUE,TRIM8#
main67610-1B390-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67610-1B490-01i198108-198309
BLACK,BLACK,TRIM2#
main67610-1B490-04i198108-198309
BLUE,BLUE,TRIM8#
main67610-1B490-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67610-1B840-01i198108-198309
BLACK,BLACK,TRIM2#
main67610-1B840-04i198108-198309
BLUE,BLUE,TRIM8#
main67610-1B840-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67610-1B860-01i198108-198309
BLACK,BLACK,TRIM2#
main67610-1B860-04i198108-198309
BLUE,BLUE,TRIM8#
main67610-1B860-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67610-1B870-01i198108-198309
BLACK,BLACK,TRIM2#
main67610-1B870-04i198108-198309
BLUE,BLUE,TRIM8#
main67610-1B870-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67610-1D150-01i198108-198309
BLACK,BLACK,TRIM2#
main67610-1D150-04i198108-198309
BLUE,BLUE,TRIM8#
main67610-1D150-06i198108-198309
DARK BROWN,BROWN,TRIM4#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-14010×2i198108-198309
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main67771-12010×20i198108-198309
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-1B070-01i198108-198309
BLACK,BLACK,TRIM2#
main67620-1B070-04i198108-198309
BLUE,BLUE,TRIM8#
main67620-1B070-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67620-1B080-01i198108-198309
BLACK,BLACK,TRIM2#
main67620-1B080-04i198108-198309
BLUE,BLUE,TRIM8#
main67620-1B080-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67620-1B090-01i198108-198309
BLACK,BLACK,TRIM2#
main67620-1B090-04i198108-198309
BLUE,BLUE,TRIM8#
main67620-1B090-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67620-1B180-01i198108-198309
BLACK,BLACK,TRIM2#
main67620-1B180-04i198108-198309
BLUE,BLUE,TRIM8#
main67620-1B180-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67620-1B530-01i198108-198309
BLACK,BLACK,TRIM2#
main67620-1B530-04i198108-198309
BLUE,BLUE,TRIM8#
main67620-1B530-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67620-1B540-01i198108-198309
BLACK,BLACK,TRIM2#
main67620-1B540-04i198108-198309
BLUE,BLUE,TRIM8#
main67620-1B540-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67620-1B660-01i198108-198309
BLACK,BLACK,TRIM2#
main67620-1B660-04i198108-198309
BLUE,BLUE,TRIM8#
main67620-1B660-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main67620-1B670-01i198108-198309
BLACK,BLACK,TRIM2#
main67620-1B670-04i198108-198309
BLUE,BLUE,TRIM8#
main67620-1B670-06i198108-198309
DARK BROWN,BROWN,TRIM4#
67777POCKET, FRONT DOOR TRIM, RH
main67770-14010-03i198108-198305
GRAY,GRAY,TRIM2#
main67770-14010-04i198108-198305
BLUE,BLUE,TRIM8#
main67770-14010-05i198108-198305
BEIGE,BEIGE,TRIM4#
main67770-14020-03i198108-198305
GRAY,GRAY,TRIM2#
main67770-14020-04i198108-198305
BLUE,BLUE,TRIM8#
main67770-14020-05i198108-198305
BEIGE,BEIGE,TRIM4#
main67770-14030-03i198305-198309
GRAY,GRAY,TRIM2#
main67770-14030-04i198305-198309
BLUE,BLUE,TRIM8#
main67770-14030-05i198305-198309
BEIGE,BEIGE,TRIM4#
main67777-22040-01i198108-198309
BLACK,BLACK,TRIM2#
main67777-22040-14i198108-198309
BLUE,BLUE,TRIM8#
main67777-22040-16i198108-198309
DARK BROWN,BROWN,TRIM4#
67778POCKET, FRONT DOOR TRIM, LH
main67770-14010-03i198108-198305
GRAY,GRAY,TRIM2#
main67770-14010-04i198108-198305
BLUE,BLUE,TRIM8#
main67770-14010-05i198108-198305
BEIGE,BEIGE,TRIM4#
main67770-14020-03i198108-198305
GRAY,GRAY,TRIM2#
main67770-14020-04i198108-198305
BLUE,BLUE,TRIM8#
main67770-14020-05i198108-198305
BEIGE,BEIGE,TRIM4#
main67770-14030-03i198305-198309
GRAY,GRAY,TRIM2#
main67770-14030-04i198305-198309
BLUE,BLUE,TRIM8#
main67770-14030-05i198305-198309
BEIGE,BEIGE,TRIM4#
main67778-22030-01i198108-198309
BLACK,BLACK,TRIM2#
main67778-22030-14i198108-198309
BLUE,BLUE,TRIM8#
main67778-22030-16i198108-198309
DARK BROWN,BROWN,TRIM4#
67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
main69751-20040×2i198108-198309
67811APAD, REAR DOOR SILENCER
main67811-20050×2i198108-198209
sub67811-12010
main67812-20050×2i198108-198207
sub67812-12010
main67812-22040×2i198207-198309
sub67812-12010
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-14100i198108-198309
main67831-14110i198108-198309
main67831-14150i198108-198309
sub67831-14160
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67832-14030i198108-198309
main67832-14040i198108-198309
main67832-14070i198108-198309
sub67832-14080
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-14230i198108-198309
main67861-14270i198108-198309
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-14230i198108-198309
main67862-14270i198108-198309
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68111-14260i198108-198309
*TT,T=4.0,T=4.0,*TT
main68111-14290i198108-198309
T=4.0,*TT
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68112-14270i198108-198309
*TT,T=4.0,T=4.0,*TT
main68112-14300i198108-198309
T=4.0,*TT
68141RUN, FRONT DOOR GLASS
main68141-14060×2i198108-198309
main68141-14080i198108-198309
RH
main68141-91C02×2i198108-198309
main68151-14020i198108-198309
LH
68143RUN, FRONT DOOR GLASS, LOWER
main68143-20050×2i198108-198309
L=450
main68143-22020×2i198108-198309
sub68143-14020
main68143-91C02×2i198108-198309
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-14150i198108-198309
RH
main68170-14180i198108-198309
RH
main68220-14120i198108-198309
LH
main68220-14140i198108-198309
LH
68610CHECK ASSY, FRONT DOOR
main68610-14030×2i198108-198309
main68610-14050×2i198108-198309
68610APIN(FOR FRONT DOOR CHECK)
main68617-22010×2i198108-198309
sub68617-12010
main68617-30010×2i198108-198309
sub68617-90K00
7404
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9016840025
main90168-40025
9017906070
main90179-06070
9018306090
main90183-06090
9165140612
main91651-40612
9352014010
main93520-14010
9354015016
main93540-15016

39 parts on this diagram · 2 diagrams in section
