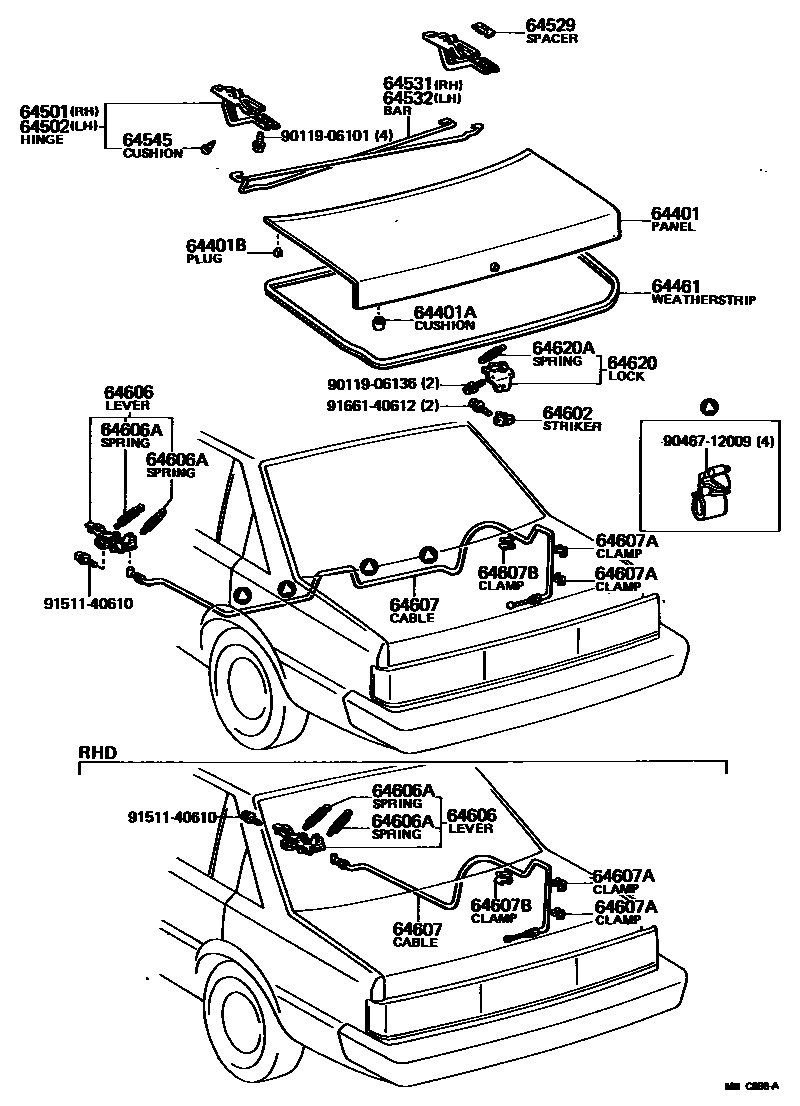

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64545CUSHION, LUGGAGE DOOR HINGE
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
W/CANCEL
9011906101
main90119-06101
9011906136
main90119-06136
9046712009
main90467-12009
9151140610
main91511-40610
9166140612
main91661-40612
23 parts on this diagram · 1 diagram in section
