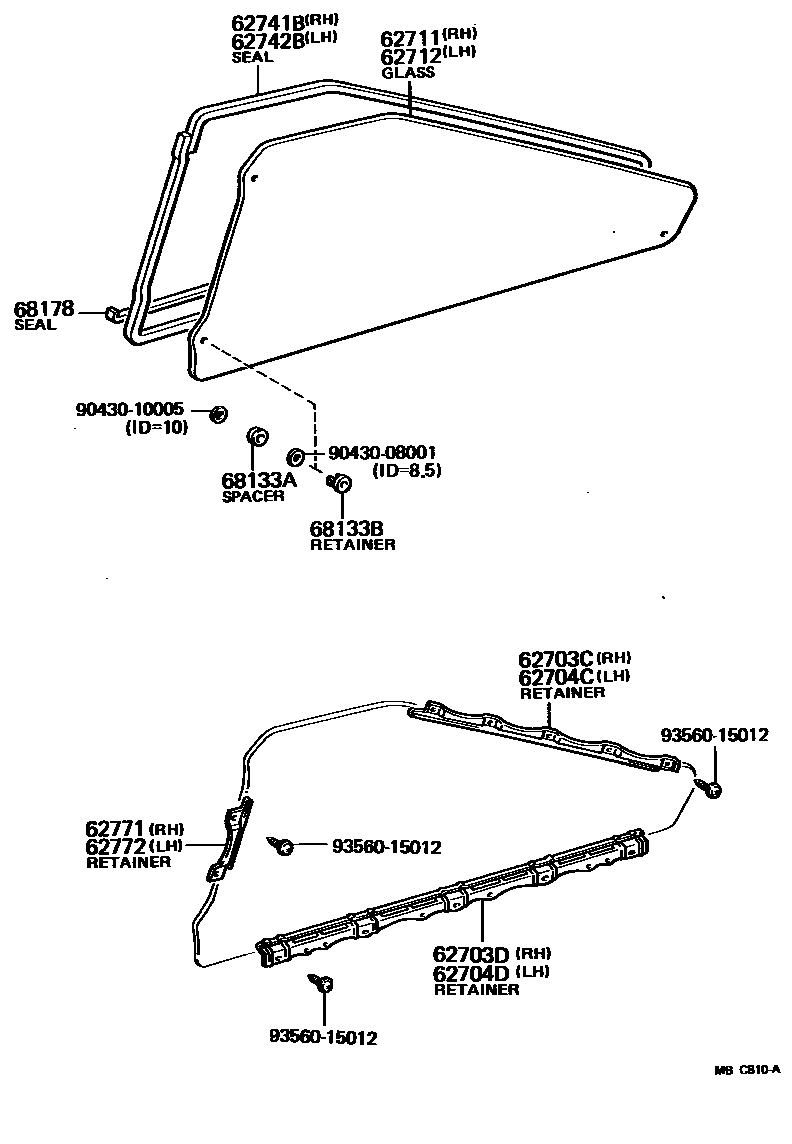

QUARTER WINDOW
62703CRETAINER, QUARTER WINDOW GLASS, UPPER, RH
62703DRETAINER, QUARTER WINDOW GLASS, LOWER, RH
62704CRETAINER, QUARTER WINDOW GLASS, UPPER, LH
62704DRETAINER, QUARTER WINDOW GLASS, LOWER, LH
62711GLASS, QUARTER WINDOW, RH
T=3.5,*TT
T=3.5,*TT
62712GLASS, QUARTER WINDOW, LH
T=3.5,*TT
T=3.5,*TT
62741WEATHERSTRIP, QUARTER WINDOW, RH
62741BSEAL, QUARTER WINDOW GLASS, RH
sub62741-12120
62742WEATHERSTRIP, QUARTER WINDOW, LH
62742BSEAL, QUARTER WINDOW GLASS, LH
sub62741-12120
62771RETAINER, QUARTER WINDOW GLASS, FRONT INNER RH
62772RETAINER, QUARTER WINDOW GLASS, FRONT INNER LH
68133ASPACER, QUARTER WINDOW NO.2 GLASS
68133BRETAINER, QUARTER WINDOW NO.2 GLASS
68178SEAL, QUARTER WINDOW NO.2 GLASS
9043008001
main90430-08001
9043010005
main90430-10005
9356015012
main93560-15012
18 parts on this diagram · 2 diagrams in section
