EPC Data

SIDE MEMBER

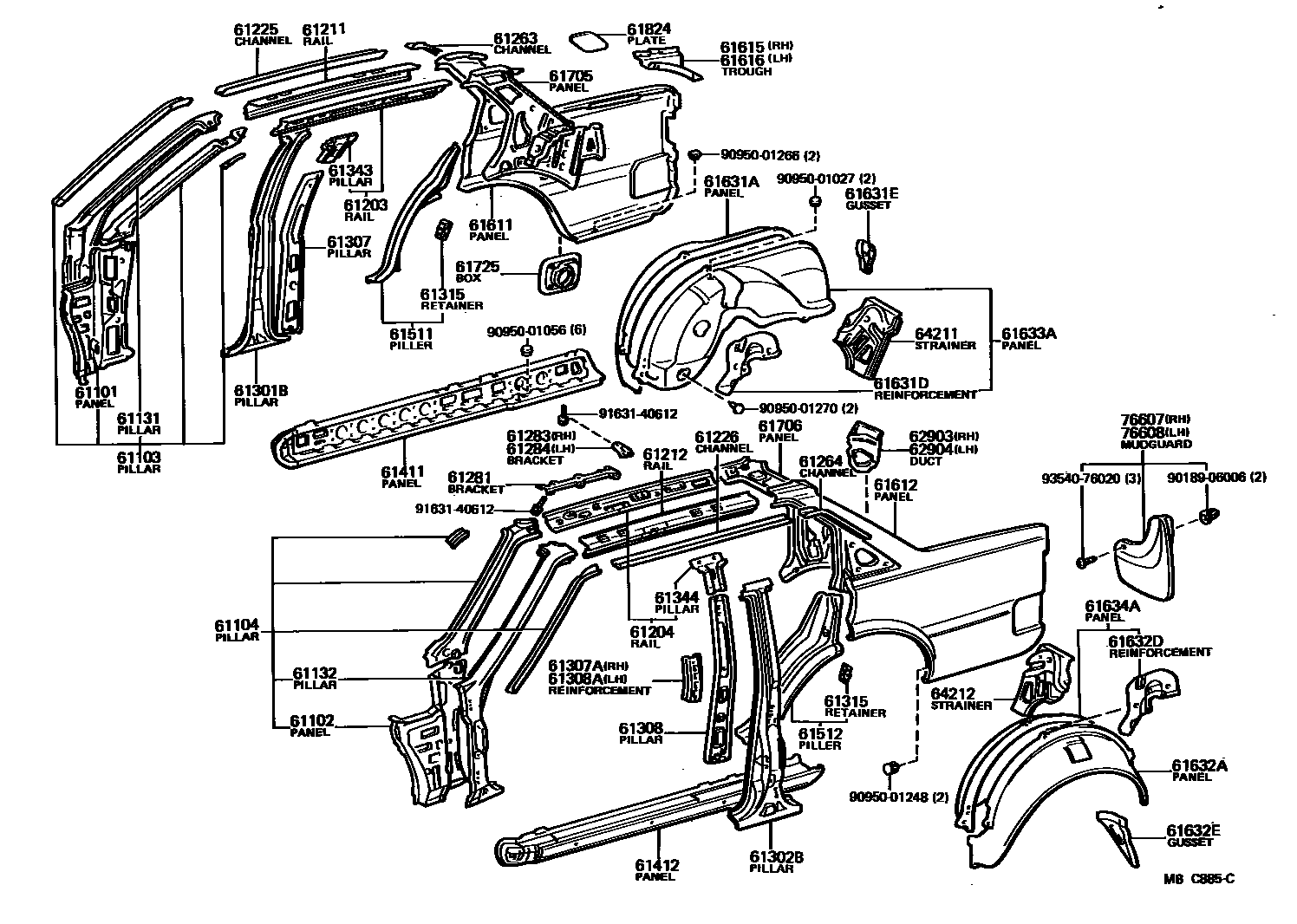

Parts diagram
61101PANEL SUB-ASSY, COWL SIDE, RH
main61101-14080i198108-198309
sub61101-14100
main61101-14090i198108-198309
main61101-14100i198108-198309
W/RADIO
61102PANEL SUB-ASSY, COWL SIDE, LH
main61102-14090i198108-198309
main61102-14100i198108-198309
W/RADIO
main61102-14110i198108-198309
sub61102-14100
61103PILLAR SUB-ASSY, FRONT BODY, RH
main61021-14160i198108-198309
main61021-14170i198108-198309
W/RADIO
main61021-14190i198108-198309
main61021-14250i198108-198309
main61021-14260i198108-198309
W/RADIO
main61021-14280i198108-198309
61104PILLAR SUB-ASSY, FRONT BODY, LH
main61022-14190i198108-198309
main61022-14210i198108-198309
W/RADIO
main61022-14220i198108-198309
main61022-14280i198108-198309
main61022-14300i198108-198309
main61022-14310i198108-198309
W/RADIO
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61027-14120i198108-198309
main61027-14140i198108-198309
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61028-14100i198108-198309
main61028-14120i198108-198309
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
main61203-14100i198108-198309
sub61203-14110
main61203-14110i198108-198309
W/SUN ROOF
main61203-91C01i198108-198309
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
main61204-14100i198108-198309
sub61204-14110
main61204-14110i198108-198309
W/SUN ROOF
main61204-91C01i198108-198309
61211RAIL, ROOF SIDE, OUTER RH
main61211-14110i198108-198309
main61211-14140i198108-198309
main61211-91C01i198108-198309
61212RAIL, ROOF SIDE, OUTER LH
main61212-14110i198108-198309
main61212-14140i198108-198309
main61212-91C01i198108-198309
61225CHANNEL, ROOF DRIP, CENTER RH
main61265-14020i198108-198309
main61265-14030i198108-198309
main61265-91C01i198108-198309
61226CHANNEL, ROOF DRIP, CENTER LH
main61266-14020i198108-198309
main61266-14030i198108-198309
main61266-91C01i198108-198309
61263CHANNEL, ROOF DRIP, REAR RH
main61267-14040i198108-198309
61264CHANNEL, ROOF DRIP, REAR LH
main61268-14040i198108-198309
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
main61281-14020i198108-198309
main61281-14040i198108-198309
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
main61283-14020i198108-198309
main61283-14040i198108-198309
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
main61284-14020i198108-198309
main61284-14040i198108-198309
61301BPILLAR, CENTER BODY, OUTER RH
main61301-14060i198108-198309
61302BPILLAR, CENTER BODY, OUTER LH
main61302-14060i198108-198309
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
main61343-14050i198108-198309
61307AREINFORCEMENT, CENTER BODY PILLAR, INNER RH
main61337-14020i198108-198309
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
main61344-14050i198108-198309
61308AREINFORCEMENT, CENTER BODY PILLAR, INNER LH
main61338-14010i198108-198309
61315RETAINER, DOOR LOCK STRIKER PLATE
main61315-22020i198108-198309
61343PILLAR, CENTER BODY, INNER UPPER RH
main61341-14040i198108-198309
61344PILLAR, CENTER BODY, INNER UPPER LH
main61342-14040i198108-198309
61411PANEL, ROCKER, OUTER RH
main61401-14020i198108-198309
sub61401-20380
main61401-14060i198108-198309
sub61401-20380
61412PANEL, ROCKER, OUTER LH
main61402-14020i198108-198309
sub61402-20380
main61402-14060i198108-198309
sub61402-20380
61511PILLAR, QUARTER LOCK, RH
main61511-14900i198108-198309
61512PILLAR, QUARTER LOCK, LH
main61512-14901i198108-198309
61611PANEL, QUARTER, RH
main61601-1B240i198108-198309
main61601-1B250i198108-198309
W/LID OPENER
main61601-1B260i198108-198309
W/*UB & LID OPENER
main61601-1B260i198208-198309
W/TRUNK OPENER
main61601-1B270i198108-198309
URETHANE BUMPER
main61601-1B350i198208-198309
main61601-1B360i198208-198309
W/LID OPENER
main61601-1B370i198208-198309
URETHANE BUMPER
main61601-1B380i198305-198309
W/*UB & LID OPENER
main61601-91791i198108-198302
sub61601-91795
main61601-91792i198108-198302
W/LID OPENER
sub61601-91796
main61601-91793i198108-198309
main61601-91794i198108-198309
W/LID OPENER
main61601-91795i198302-198309
main61601-91796i198302-198309
W/LID OPENER
main61611-14420i198108-198309
main61611-14430i198108-198309
URETHANE BUMPER
61612PANEL, QUARTER, LH
main61602-14880i198108-198309
main61602-14890i198108-198309
URETHANE BUMPER
main61602-1B060i198208-198309
main61602-1B070i198208-198309
URETHANE BUMPER
main61602-91791i198108-198302
sub61602-91793
main61602-91792i198108-198309
main61602-91793i198302-198309
main61612-14390i198108-198309
main61612-14410i198108-198309
URETHANE BUMPER
61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH
main61621-14080i198108-198309
61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH
main61622-14070i198108-198309
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61605-14010i198108-198309
sub61605-14060
main61605-14060i198108-198309
61631DREINFORCEMENT, QUARTER WHEEL HOUSE, RH
main61675-14030i198108-198309
61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-14040i198108-198309
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-14120i198108-198309
sub61632-14170
main61632-14170i198108-198309
61632DREINFORCEMENT, QUARTER WHEEL HOUSE, LH
main61676-14020i198108-198309
61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH
main61646-14050i198108-198309
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61603-14909i198108-198309
main61607-14900i198108-198309
main61607-91C01i198108-198309
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61604-14909i198108-198309
main61608-14902i198108-198309
main61608-91C01i198108-198309
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
main61705-14902i198108-198309
main61705-14904i198108-198309
main61705-91C02i198108-198309
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
main61706-14902i198108-198309
main61706-14904i198108-198309
main61706-91C02i198108-198309
61725BOX, FUEL INLET
main61709-14080i198108-198309
main61725-14130i198108-198309
W/TRUNK OPENER
61824PLATE, NOISE CONTROL, NO.1
main61824-14030i198108-198309
62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH
main62903-14030i198108-198309
62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH
main62904-14030i198108-198309
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
main64211-14080i198108-198309
sub64211-20150
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
main64212-14080i198108-198309
sub64212-20150
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76607-19115i198108-198309
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76608-19115i198108-198309
9018906006
main90189-06006
9095001027
main90950-01027
9095001056
main90950-01056
9095001248
main90950-01248
9095001266
main90950-01266
9095001270
main90950-01270
9163140612
main91631-40612
9354076020
main93540-76020

60 parts on this diagram · 3 diagrams in section
