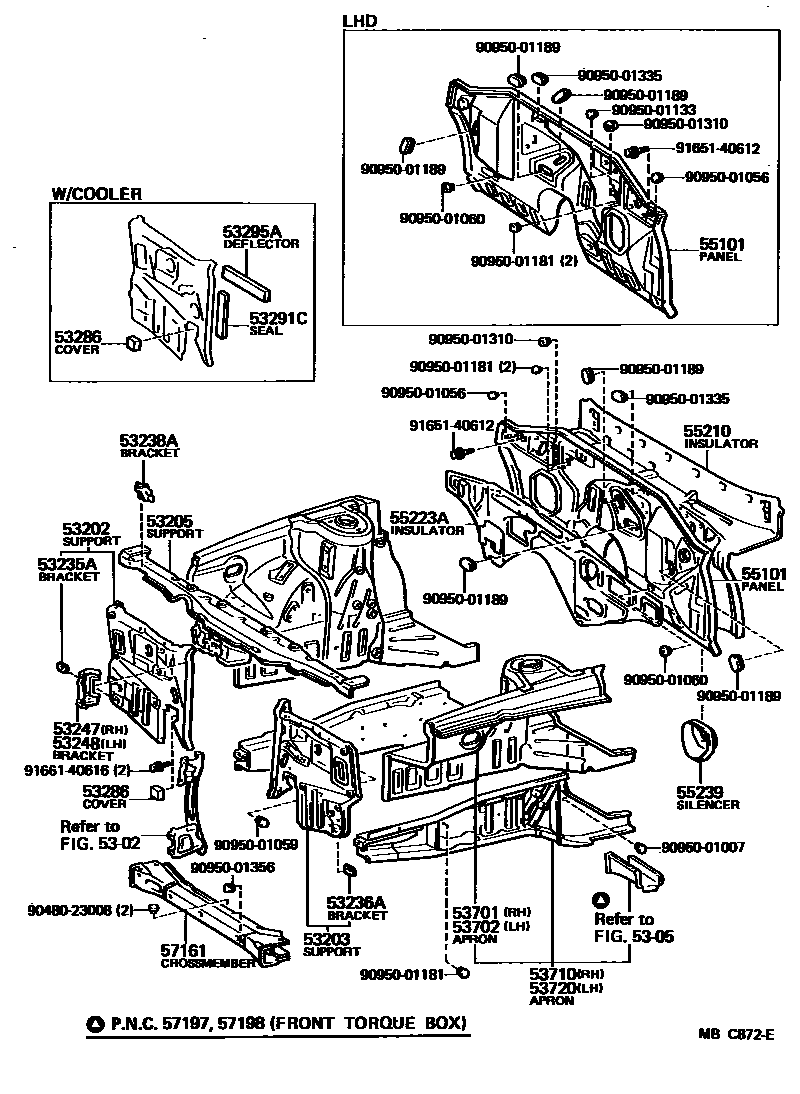

FRONT FENDER APRON & DASH PANEL

5302

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-14110iCA60,TA6#198108-198309

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-14170iCA60198204-198309

COLD SPEC

main53203-14180iTA6#198108-198309

main53203-14230iCA60198204-198309

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-14040iCA60,TA6#198108-198309

53235ABRACKET, HORN MOUNTING, RH

main53235-14040iCA60,TA6#198108-198309

53236ABRACKET, HORN MOUNTING, LH

main53236-14030iTA6#198108-198309

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-14060×2iCA60,TA6#198108-198309

53247BRACKET, HEADLAMP MOUNTING, INNER RH

main53247-14060iCA60,TA6#198108-198309

53248BRACKET, HEADLAMP MOUNTING, INNER LH

main53248-14040iCA60,TA6#198108-198309

53286COVER, FRONT BUMPER ARM HOLE

main53285-14040×2iCA60,TA60;TA62..EUG198108-198309

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-14020×2iTA60;TA62..EUG198108-198309

53295ADEFLECTOR, RADIATOR UPPER AIR

main53293-14040iTA60..MTM;TA62..5F..EUG198108-198309

main53293-14050iTA60..3FC;TA62..3FC..EUG198108-198309

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-14912iTA62..SDN,SDZ198108-198309

main53701-14913iCA60198204-198309

main53701-14914iTA6#..EUG198108-198210

main53701-14924iTA60;TA62..EUG198210-198309

sub53701-14922

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-14913iTA62..SDN,SDZ198108-198309

main53702-14917iTA6#..EUG198108-198210

main53702-14922iCA60198204-198309

main53702-14927iTA60;TA62..EUG198210-198309

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-14900iCA60,TA60;TA62..EUG198108-198309

main53710-14901iTA62..SDN,SDZ198108-198309

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-14901iTA60;TA62..EUG198108-198309

main53720-14902iTA62..SDN,SDZ198108-198309

main53720-14911iCA60198204-198309

55101PANEL SUB-ASSY, DASH

main55101-14913iTA6#..LHD198108-198305

main55101-14916iCA60..RHD198204-198303

main55101-14918iTA6#..RHD198108-198303

main55101-14920iCA60..LHD198204-198305

main55101-14924iCA60,TA6#..LHD198305-198309

main55101-14928iCA60..RHD198303-198309

main55101-14930iTA6#..RHD198303-198309

55210INSULATOR ASSY, DASH PANEL

main55210-14170iCA60,TA6#..RHD198108-198309

main55210-14180iCA60,TA6#..LHD198108-198309

55223AINSULATOR, DASH PANEL, OUTER

main55223-14010iCA60..RHD198204-198309

main55223-14020iCA60..LHD198204-198309

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-14060iCA60,TA6#198108-198309

57161CROSSMEMBER, FRONT

main57104-14090iCA60,TA6#198108-198305

main57104-14100iCA60,TA6#198305-198309

9048023008

main90480-23008

9095001007

main90950-01007

9095001056

main90950-01056

9095001059

main90950-01059

9095001060

main90950-01060

9095001133

main90950-01133

9095001181

main90950-01181

9095001189

main90950-01189

9095001310

main90950-01310

9095001335

main90950-01335

9095001356

main90950-01356

9165140612

main91651-40612

9166140616

main91661-40616

35 parts on this diagram · 1 diagram in section
