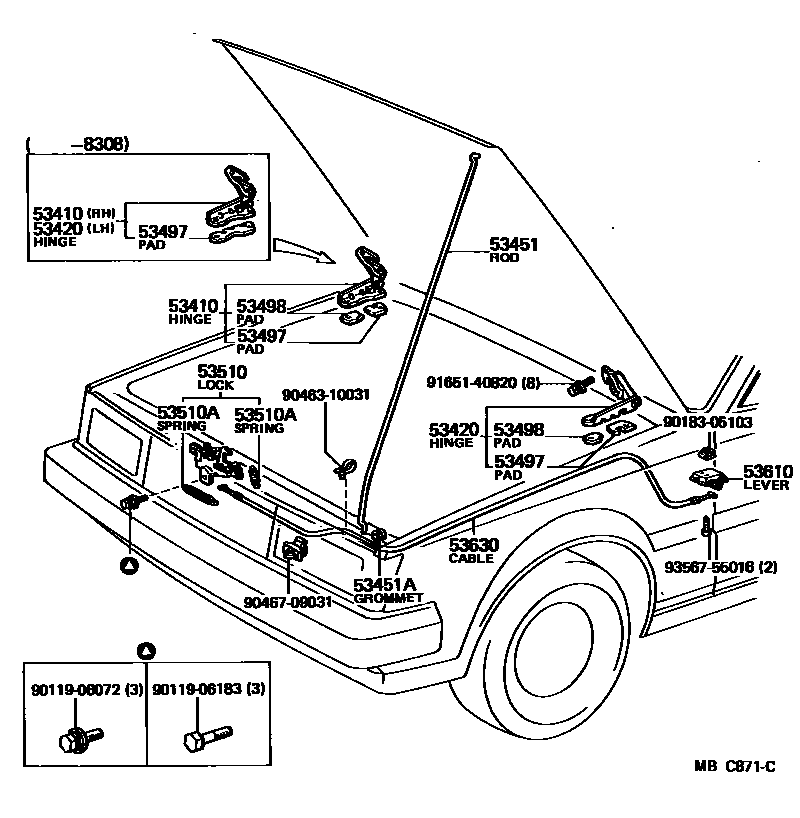

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-14060iCA60,TA6#198108-198309

sub53410-14061

53420HINGE ASSY, HOOD, LH

main53420-14040iCA60,TA6#198108-198309

sub53420-14041

53451ROD, HOOD SUPPORT

main53451-14040iCA60,TA6#198108-198309

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15002iTA6#198108-198201

main90480-15011iCA60,TA6#198201-198309

53497PAD, HOOD HINGE, NO.1

main53497-14010iCA60,TA6#198108-198308

T=1.0

sub53497-14011

main53497-14060iCA60,TA6#198308-198309

T=1.0,RR

sub53497-14061

53498PAD, HOOD HINGE, NO.2

main53498-12010iCA60,TA6#198308-198309

T=1.0,FR

sub53498-12011

53510LOCK ASSY, HOOD

main53510-14130iTA6#..LHD198108-198112

sub53510-14131

main53510-14131iCA60,TA6#..LHD198112-198305

main53510-14132iCA60,TA6#..LHD198305-198309

main53510-14140iCA60,TA6#..RHD198108-198305

main53510-14141iCA60,TA6#..RHD198305-198309

sub53510-20440

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iCA60,TA6#..RHD198108-198309

WD=0.9,CW=21.25,WD=0.9,L=34.4

main90506-09029iCA60,TA6#..RHD198305-198309

WD=0.9,WD=0.9,L=39.6

main90506-20008iCA60,TA6#198108-198309

WD=2.0,CW=17,WD=2.0,L=60.0

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-14010-01iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

sub53601-14010

main53601-14010-04iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

sub53601-14010

main53601-14010-06iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

sub53601-14010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-14170iCA60,TA6#..LHD198108-198301

main53630-14230iCA60,TA6#..RHD198108-198309

9011906072

main90119-06072

9011906183

main90119-06183

9018305103

main90183-05103

9046310031

main90463-10031

9046709031

main90467-09031

9165140820

main91651-40820

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
