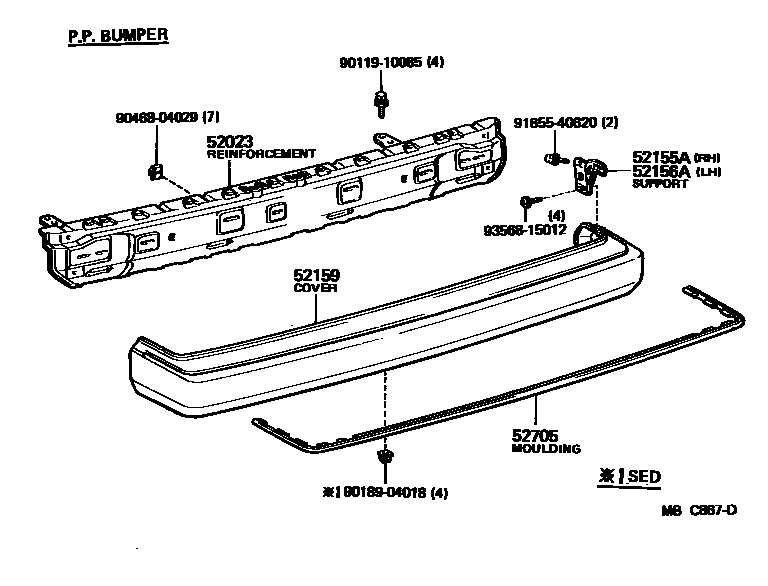

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-14060iCA60,TA6#..CP,SED¥21,200198108-198309

main52023-14070iTA6#..CP,SED¥27,300198108-198309

URETHANE BUMPER

main52023-91C02iCA60,TA6#..WG¥32,700198108-198309

52155ASUPPORT, REAR BUMPER SIDE, RH

main52106-91C01iCA60,TA6#..WG¥5,300198108-198309

main52155-14081iCA60,TA6#..CP,SED¥1,440198108-198309

main52155-14100iCA60,TA6#..CP,SED¥610198108-198309

URETHANE BUMPER

52156ASUPPORT, REAR BUMPER SIDE, LH

main52107-91C01iCA60,TA6#..WG¥5,300198108-198309

main52155-14100iCA60,TA6#..CP,SED¥610198108-198309

URETHANE BUMPER

main52156-14081iCA60,TA6#..CP,SED¥1,440198108-198309

52159COVER, REAR BUMPER

main52159-14090iCA60,TA6#..SED¥36,800198108-198309

URETHANE BUMPER

main52159-14100iTA6#..CP¥36,600198108-198309

URETHANE BUMPER

main52159-14110iCA60,TA6#..SED¥17,400198108-198309

main52159-14120iTA6#..CP¥17,100198108-198309

main52159-91C01iCA60,TA6#..WG¥17,300198108-198309

52705MOULDING SUB-ASSY, REAR BUMPER

main52751-14030iCA60,TA6#..(CP,SED)..(DLX,XE)¥3,090198108-198309

main52751-14040iTA6#..GL¥7,200198108-198309

main52751-91C01iCA60,TA6#..WG¥2,730198108-198309

9011910085

main90119-10085¥240

9018904018

main90189-04018¥120

9046804029

main90468-04029¥120

9165540620

main91655-40620¥120

9356815012

main93568-15012¥110

10 parts on this diagram · 3 diagrams in section
