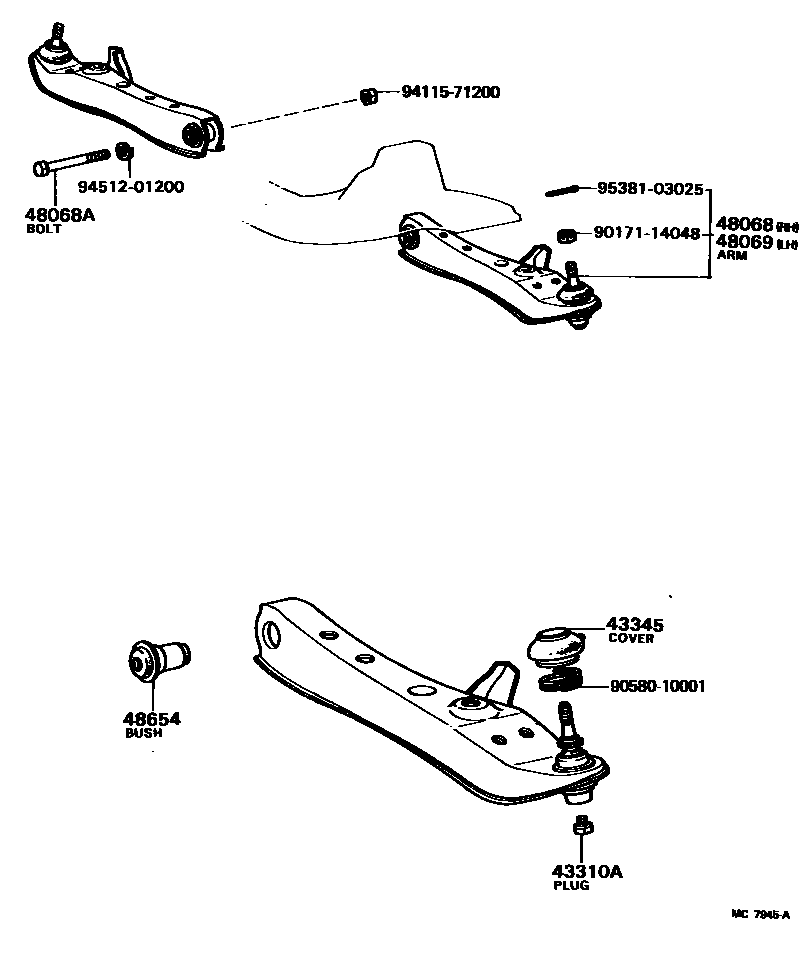

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iCA60,TA6#198108-198309

43345COVER, LOWER BALL JOINT DUST

main43345-14020iCA60,TA6#198108-198309

sub43345-14010

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19105iCA60,TA60;TA62..EUG198108-198309

sub48068-29125

main48068-19115iTA62..SDN,SDZ198108-198309

sub48068-29135

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12291iCA60,TA6#198108-198309

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19085iCA60,TA60;TA62..EUG198108-198309

sub48069-29125

main48069-19095iTA62..SDN,SDZ198108-198309

sub48069-29135

48654BUSH, LOWER ARM

main48654-12010iCA60,TA6#198106-198309

9017114048

main90171-14048

9058010001

main90580-10001

9411571200

main94115-71200

9451201200

main94512-01200

9538103025

main95381-03025

11 parts on this diagram · 1 diagram in section
