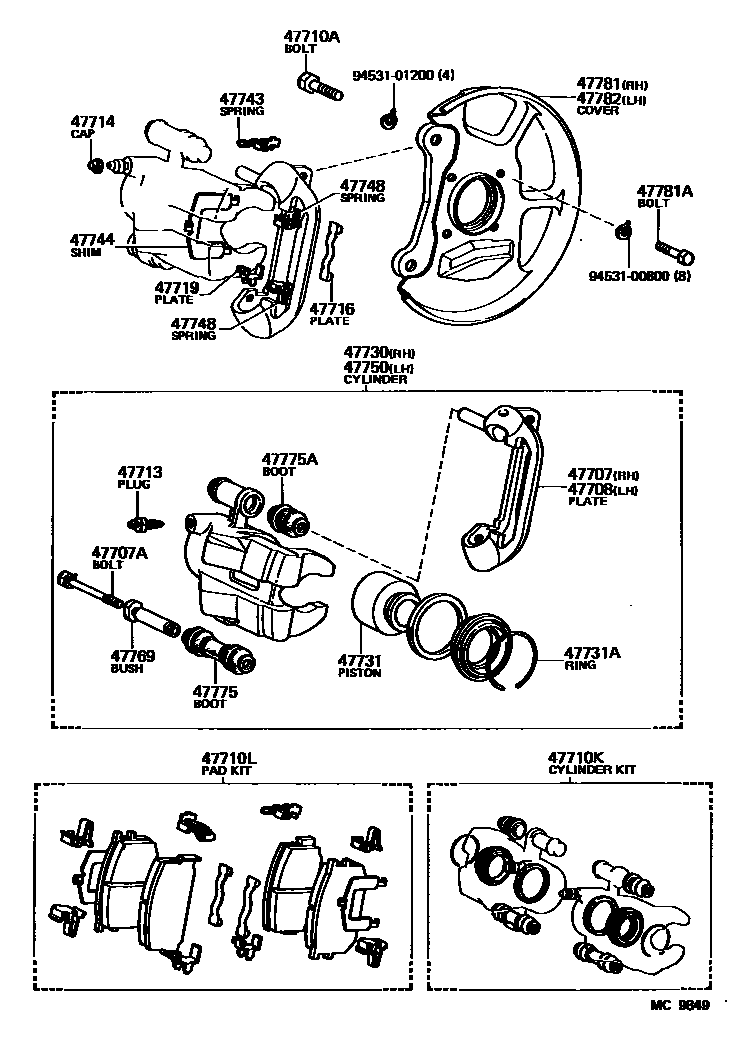

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-14010iCA60,TA6#¥6,500198108-198309

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199iCA60,TA6#¥250198108-198308

main90119-08431iCA60,TA6#¥220198308-198309

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-14010iCA60,TA6#¥6,500198108-198309

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12064iCA60,TA6#¥270198108-198309

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14060iCA60,TA6#¥2,020198108-198309

47710LPAD KIT, DISC BRAKE, FRONT

main04491-14150iCA60,TA6#¥7,000198108-198309

sub04465-12370¥9,700

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCA60,TA6#¥200198108-198309

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCA60,TA6#¥160198108-198309

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14080iCA60,TA6#¥320198108-198309

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-12010iCA60,TA6#¥320198108-198309

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12250iCA60,TA6#¥44,200198308-198309

main47730-14050iCA60,TA6#¥44,100198108-198308

sub47730-12250¥44,200

47731PISTON, FRONT DISC BRAKE

main47731-14070iCA60,TA6#¥2,800198108-198309

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-60004iCA60,TA6#¥180198108-198309

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-12010iCA60,TA6#¥380198108-198309

LH

main47748-12050iCA60,TA6#¥380198108-198309

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14050iCA60,TA6#¥270198108-198309

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-14040iCA60,TA6#¥320198108-198309

LWR

main47748-14050iCA60,TA6#¥360198108-198309

UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12250iCA60,TA6#¥44,200198308-198309

main47750-14130iCA60,TA6#¥44,100198108-198308

sub47750-12250¥44,200

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-14010iCA60,TA6#¥730198108-198308

sub47769-28H00¥860

sub47769-28H01

main47769-28010iCA60,TA6#¥680198308-198309

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010iCA60,TA6#¥780198108-198309

47775ABOOT, PIN

main47776-14010iCA60,TA6#¥670198108-198309

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14080iCA60,TA6#¥5,500198108-198309

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10062iCA60,TA6#¥160198108-198309

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-14080iCA60,TA6#¥5,300198108-198309

9453100800

main94531-00800¥160

9453101200

main94531-01200¥80

25 parts on this diagram · 2 diagrams in section
