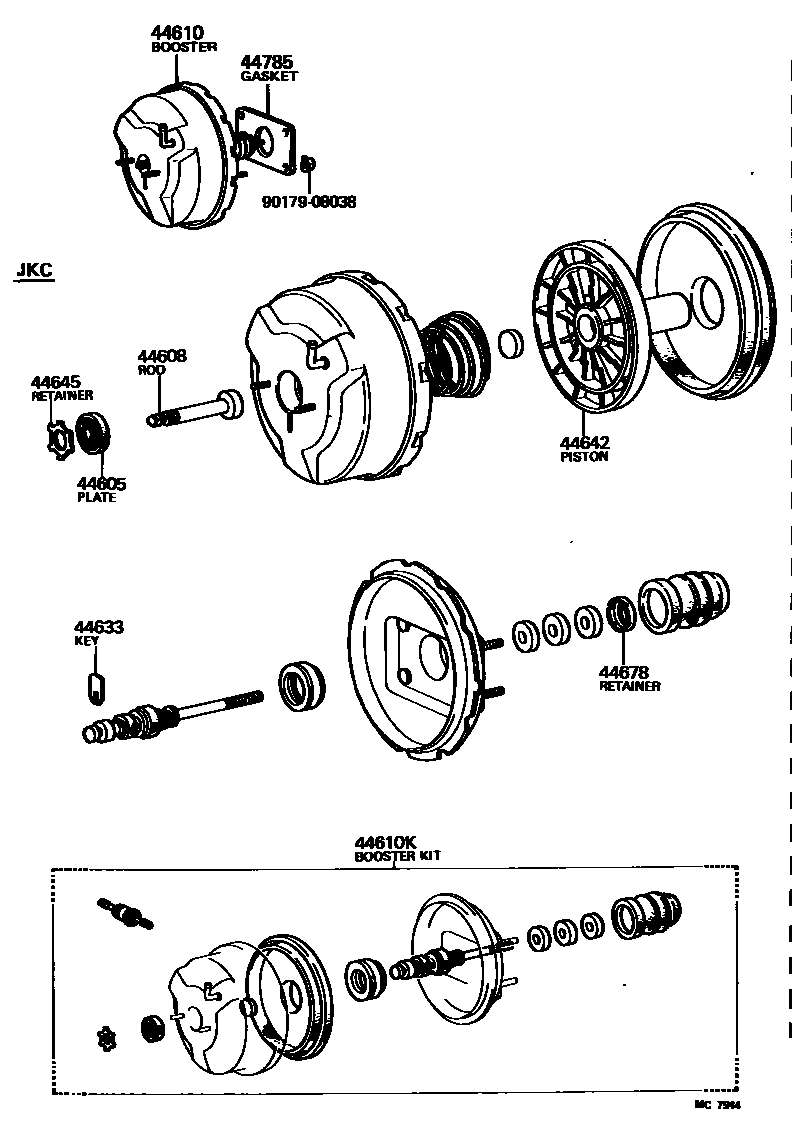

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iTA6#..RHD¥710198108-198309

sub44605-10080¥620

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-35100iCA60;TA6#..LHD¥940198108-198309

main44606-35100iTA60..RHD..GEN¥940198305-198309

AISIN

main44608-14040iTA6#..RHD¥1,630198108-198309

JKC

44610BOOSTER ASSY, BRAKE

main44610-14510iTA6#..RHD¥40,600198108-198309

JKC

main44610-14550iCA60..RHD¥41,600198204-198309

main44610-14630iTA6#..LHD¥42,100198108-198309

main44610-20640iCA60..LHD198204-198309

main44610-22330iTA60..RHD..GEN¥40,600198305-198309

AISIN

44610KBOOSTER KIT, BRAKE

main04443-14320iTA60..RHD..GEN¥11,900198305-198309

AISIN

main04443-14330iTA6#..RHD¥13,200198108-198309

JKC

main04443-14340iCA60..RHD¥13,200198204-198309

main04443-20330iCA60..LHD¥11,600198204-198309

main04443-22190iTA6#..LHD¥7,600198108-198309

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iTA6#..RHD¥260198108-198309

44642PISTON, BRAKE BOOSTER

main44642-14170iTA60..RHD..GEN¥7,800198305-198309

AISIN

main44642-14170iCA60;TA6#..LHD¥7,800198108-198309

main44642-20140iTA6#..RHD¥15,400198108-198309

JKC

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iTA6#..RHD¥220198108-198309

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iTA6#..RHD¥300198108-198309

44785GASKET, BRAKE BOOSTER

main44785-20030iCA60,TA6#¥250198108-198309

9017908038

main90179-08038¥130

10 parts on this diagram · 4 diagrams in section
