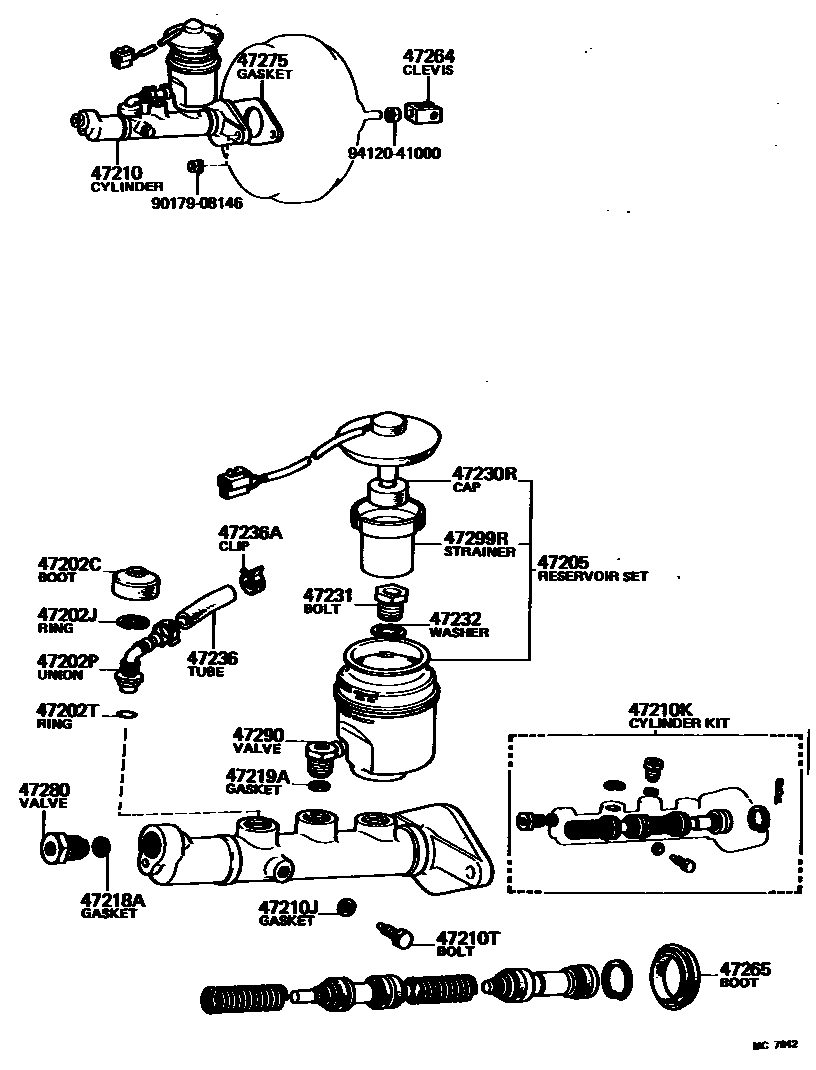

BRAKE MASTER CYLINDER

0001 1 0002 1

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iTA62..SDZ198208-198309

SWITZERLAND SPEC

main47265-20060iCA60,TA60;TA62..EUG198108-198309

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iCA60,TA60;TA62..EUG198108-198309

main96151-02000iTA62..SDZ198208-198309

SWITZERLAND SPEC

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10125iTA62..(DLX,GL)..(SDN,SDZ)198108-198309

SWEDEN SPEC

main90407-10003iCA60,TA60;TA62..EUG198108-198309

sub90407-10004

main90407-10003iTA62..SDZ198208-198309

SWITZERLAND SPEC

sub90407-10004

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iTA62..SDZ198208-198309

SWITZERLAND SPEC

main90301-14001iCA60,TA60;TA62..EUG198108-198309

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-14260iTA62..(DLX,GL)..(SDN,SDZ)198108-198309

SWEDEN SPEC

main47202-14270iCA60,TA60;TA62..EUG198108-198309

main47202-14270iTA62..SDZ198208-198309

SWITZERLAND SPEC

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-14350iCA60,TA6#..RHD198108-198309

main47201-14410iCA60,TA60..LHD;TA62..LHD..EUG198108-198309

main47201-14410iTA62..SDZ198208-198309

SWITZERLAND SPEC

main47201-14430iTA62..(DLX,GL)..(SDN,SDZ)198108-198309

SWEDEN SPEC

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCA60,TA6#198108-198309

47210KCYLINDER KIT, BRAKE MASTER

main04493-20100iCA60,TA6#198108-198309

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iCA60,TA6#198108-198309

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iCA60,TA6#198108-198309

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iCA60,TA6#198108-198309

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-12011iCA60,TA60;TA62..EUG198108-198309

main84460-12011iTA62..SDZ198208-198309

SWITZERLAND SPEC

main84460-12030iTA62..(DLX,GL)..(SDN,SDZ)198108-198309

SWEDEN SPEC

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iTA62..(DLX,GL)..(SDN,SDZ)198108-198309

SWEDEN SPEC

main47231-30010iCA60,TA60;TA62..EUG198108-198309

main47231-30010iTA62..SDZ198208-198309

SWITZERLAND SPEC

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iCA60,TA60;TA62..EUG198108-198309

main47232-30010iTA62..SDZ198208-198309

SWITZERLAND SPEC

47236TUBE, RESERVOIR BRAKE

main47234-14010iCA60,TA6#198108-198309

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iCA60,TA6#198108-198309

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iCA60,TA6#198108-198309

47265BOOT, MASTER CYLINDER

main47265-20050iCA60,TA6#198108-198309

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iCA60,TA6#198108-198309

sub47275-26010

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47218-12040iCA60,TA6#198308-198309

main47280-30030iCA60,TA6#198108-198308

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47218-12040iCA60,TA6#198308-198309

main47280-30030iCA60,TA6#198108

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iCA60,TA6#198108-198309

9017908146

main90179-08146

9412041000

main94120-41000

24 parts on this diagram · 2 diagrams in section
