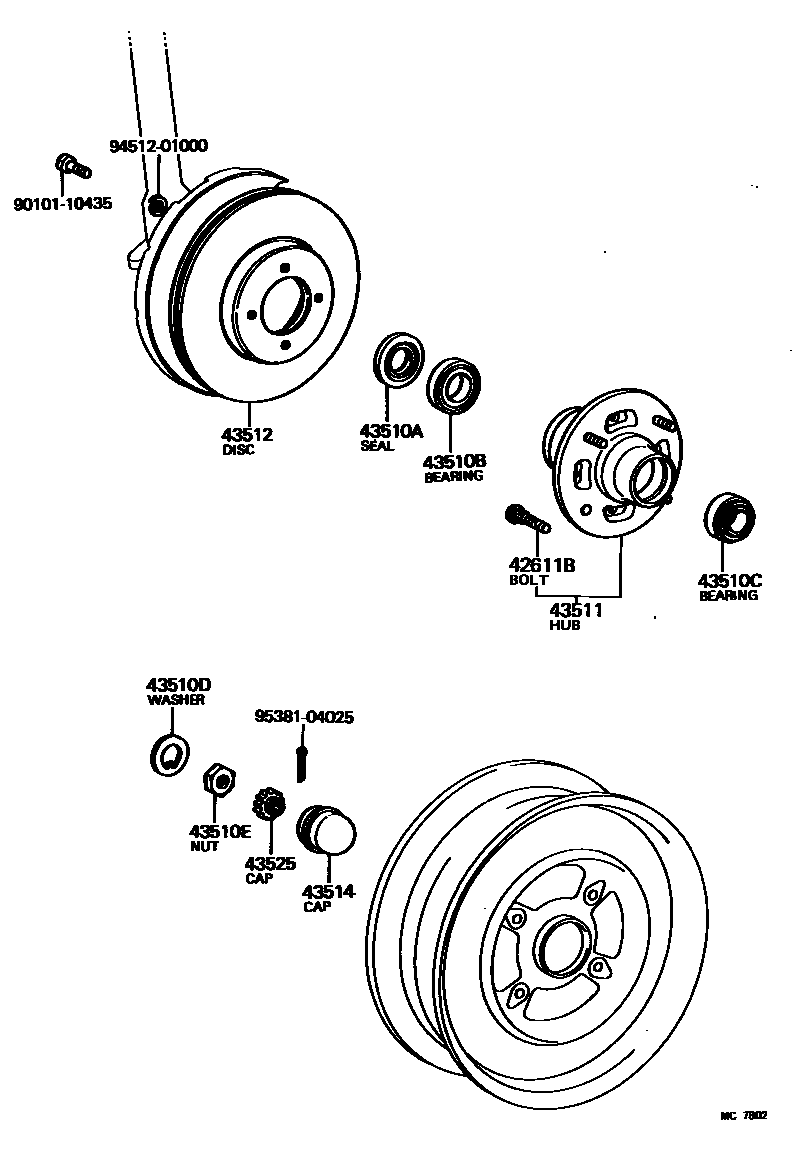

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02036iCA60,TA6#198108-198307

sub90942-02048

main90942-02048iCA60,TA6#198307-198309

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123iCA60,TA6#198108-198309

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068iCA60,TA6#198108-198309

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017iCA60,TA6#198108-198309

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010iCA60,TA6#198108-198309

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137iCA60,TA6#198108-198309

sub94125-41600

43511HUB, FRONT AXLE

main43502-14030iCA60,TA6#198108-198309

43512DISC, FRONT

main43512-14070iCA60,TA6#198108-198309

43514CAP, FRONT HUB GREASE

main43514-20010iCA60,TA6#198106-198309

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011iCA60,TA6#198108-198309

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section
