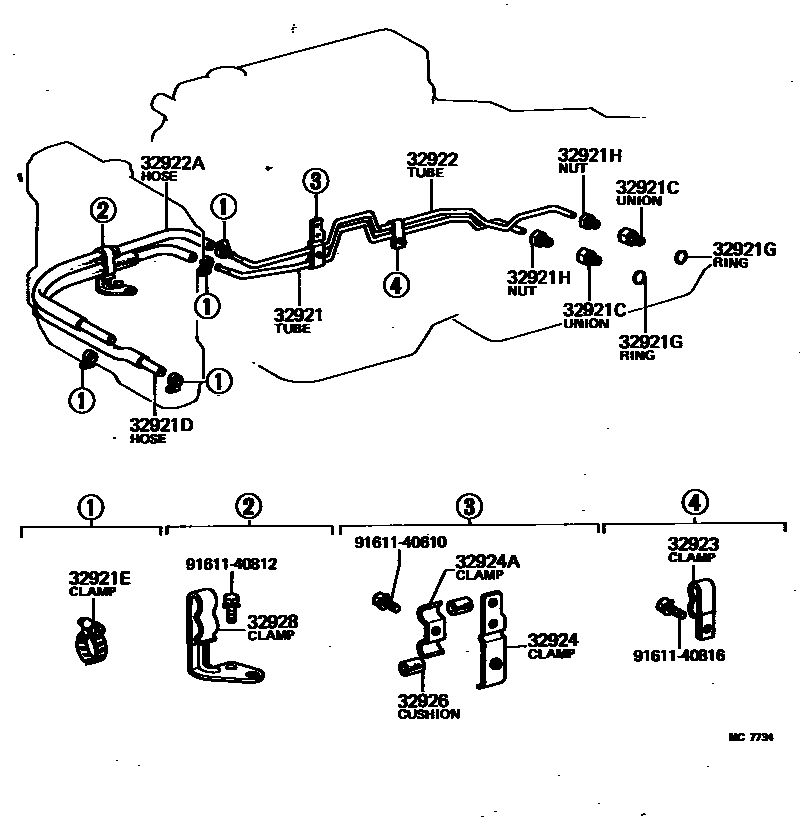

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-14110iTA60..3FC;TA62..3FC..EUG198108-198309

main32921-14190iTA62..3FC..(SDN,SDZ)198108-198309

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iTA6#..3FC198108-198309

32921DHOSE(FOR OIL COOLER INLET)

main32941-14013iTA6#..3FC198108-198309

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iTA6#..3FC198108-198309

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iTA6#..3FC198108-198309

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iTA6#..3FC198108-198309

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-14110iTA60..3FC;TA62..3FC..EUG198108-198309

main32922-14190iTA62..3FC..(SDN,SDZ)198108-198309

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-14013iTA6#..3FC198108-198309

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08039iTA6#..3FC198108-198309

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-14010iTA6#..3FC198108-198309

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12085iTA6#..3FC198108-198309

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iTA6#..3FC198108-198309

L=25,ID=8

32928CLAMP, FLEXIBLE HOSE, NO.1

main90462-06007iTA6#..3FC198108-198309

9161140610

main91611-40610

9161140812

main91611-40812

9161140816

main91611-40816

16 parts on this diagram · 1 diagram in section
