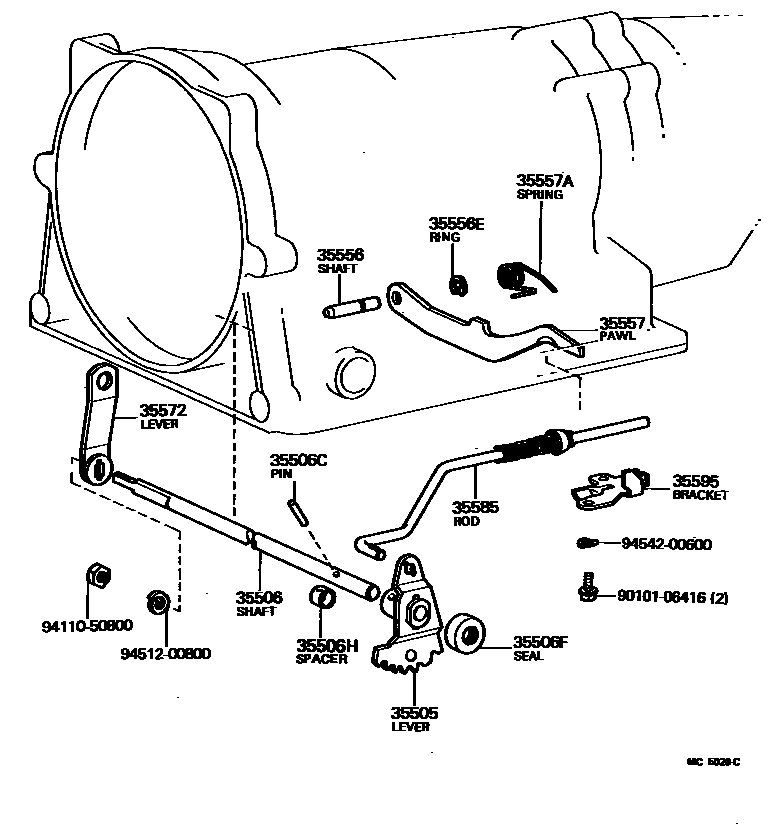

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22010iTA6#..3FC198108-198305

main35505-22030iTA6#..3FC198305-198309

sub35505-22040

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-20021iTA6#..3FC198108-198305

sub35561-40010

sub35505-22040

sub90254-04011

main35561-40010iTA6#..3FC198305-198309

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-03004iTA6#..3FC198108-198305

main90254-04011iTA6#..3FC198305-198309

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11128iTA6#..3FC198108-198309

sub90311-11001

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iTA6#..3FC198108-198309

sub90560-20025

35556SHAFT, PARKING LOCK PAWL

main35556-22010iTA6#..3FC198108-198309

sub35556-26010

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTA6#..3FC198108-198309

35557PAWL, PARKING LOCK

main35557-22010iTA6#..3FC198108-198309

sub35557-35010

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25001iTA6#..3FC198108-198309

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-22040iTA6#..3FC198108-198309

35585ROD, PARKING LOCK

main35501-22020iTA6#..3FC198108-198309

35595BRACKET, PARKING LOCK PAWL

main35595-16010iTA6#..3FC198108-198309

sub35595-22020

9010106416

main90101-06416

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 2 diagrams in section
