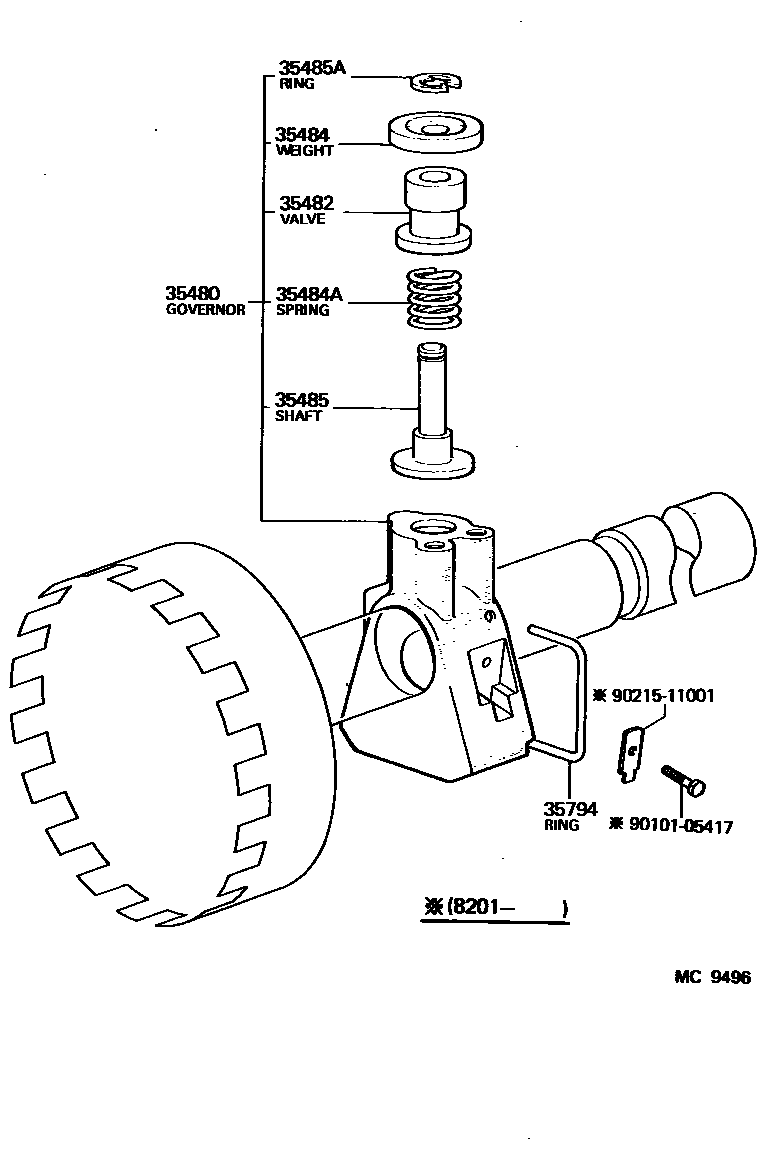

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-22020iTA6#..3FC¥12,600198108-198201

sub35480-30040¥12,600

main35480-30060iTA6#..3FC¥11,500198201-198309

35482VALVE, GOVERNOR

main35482-22010iTA6#..3FC¥1,950198108-198309

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iTA6#..3FC¥750198108-198309

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iTA6#..3FC¥200198108-198309

35485SHAFT, GOVERNOR VALVE

main35485-22010iTA6#..3FC¥1,220198108-198309

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iTA6#..3FC¥190198108-198309

35794RING, GOVERNOR RETAINING

main35794-22010iTA6#..3FC¥550198108-198309

9010105417

main90101-05417¥130

9021511001

main90215-11001¥120

9 parts on this diagram · 1 diagram in section
