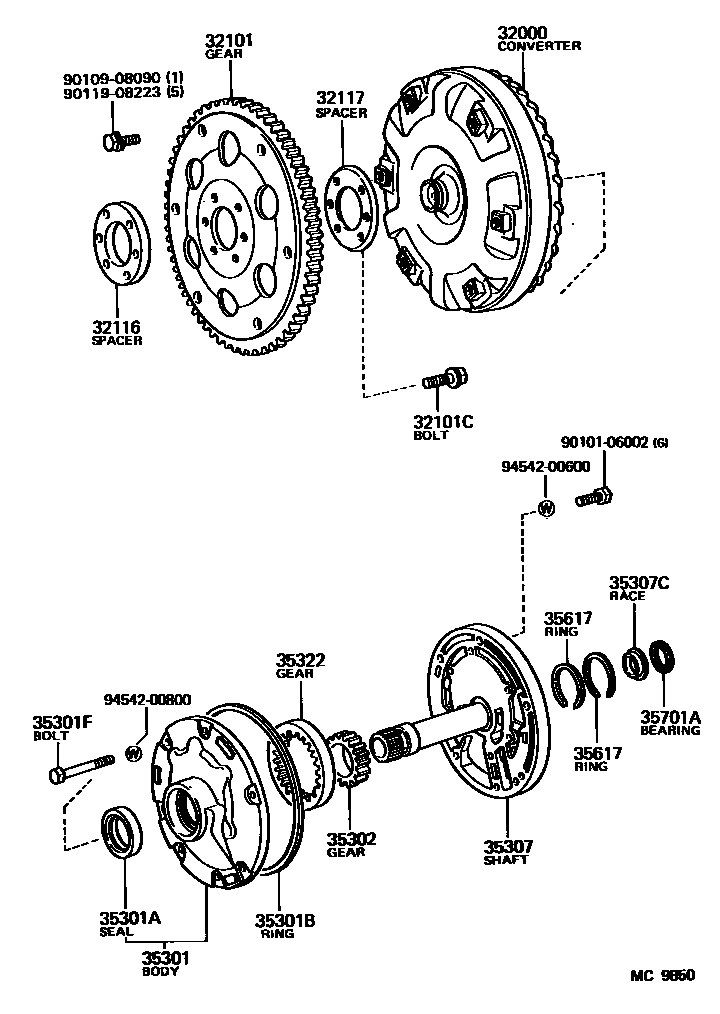

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12030iTA60..3FC¥116,000198108-198309

main32000-14040iTA62..3FC¥105,000198108-198309

sub32000-14041¥104,000

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iTA6#..3FC¥20,900198108-198309

sub32101-22030¥21,000

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046iTA6#..3FC¥240198108-198309

*10-1.25PX23-15.5

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iTA6#..3FC¥820198108-198309

32117SPACER, DRIVE PLATE, REAR

main32117-14011iTA6#..3FC¥680198108-198309

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30030iTA6#..3FC¥19,000198108-198309

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iTA6#..3FC¥540198108-198309

sub90311-38020¥540

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iTA6#..3FC¥590198108-198309

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90101-08046iTA6#..3FC¥230198108-198309

sub90105-08128¥260

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iTA6#..3FC¥3,820198108-198309

sub35321-22090¥3,680

35307SHAFT SUB-ASSY, STATOR

main35370-22011iTA6#..3FC¥26,500198108-198309

sub35370-22012¥26,900

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iTA6#..3FC¥530198108-198309

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iTA6#..3FC¥4,910198108-198309

T=15.286-15.235

sub35322-22090¥5,400

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iTA6#..3FC¥1,260198108-198305

main35617-22011iTA6#..3FC¥2,010198305-198309

sub35617-32010¥1,400

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iTA6#..3FC¥570198108-198309

9010106002

main90101-06002¥130

9010908090

main90109-08090¥170

9011908223

main90119-08223¥190

9454200600

main94542-00600¥180

9454200800

main94542-00800¥170

20 parts on this diagram · 1 diagram in section
