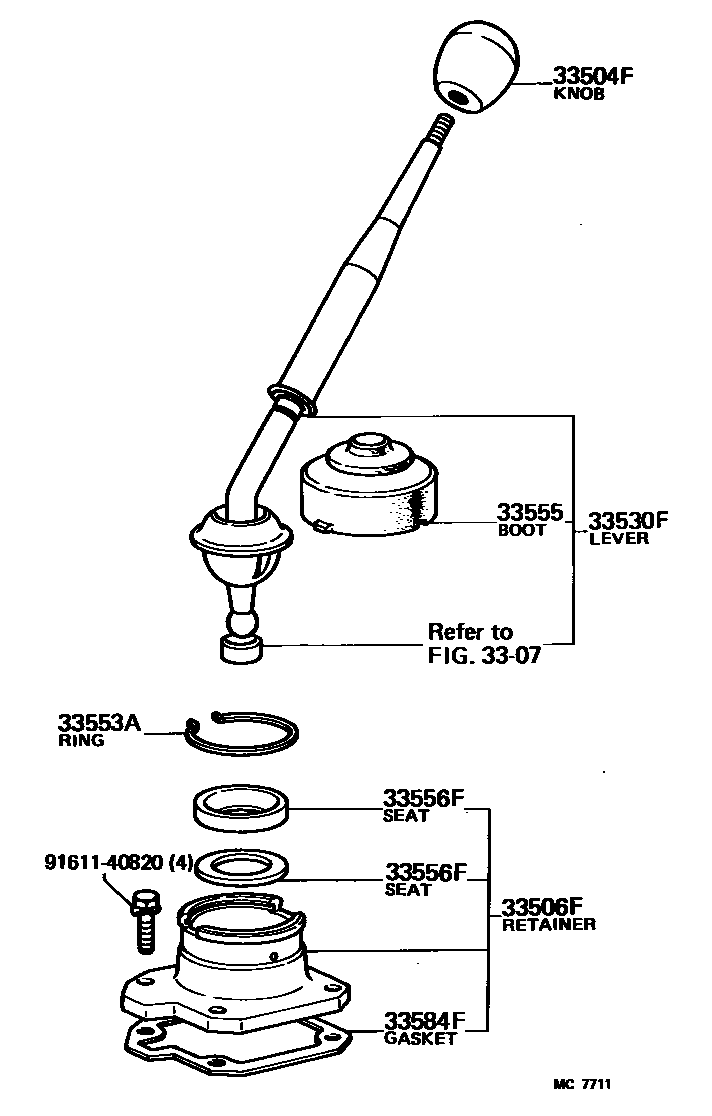

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14040-01iTA60..4F198108-198309

BLACK,BLACK,TRIM2#

main33504-14040-04iTA60..(CP,SED)..4F198208-198309

BLUE,BLUE,TRIM8#

main33504-14040-16iTA60..4F198208-198309

DARK BROWN,BROWN,TRIM4#

main33504-14070-01iCA60,TA6#..5F..DLX198108-198309

BLACK,BLACK,TRIM2#

sub33504-14050

main33504-14070-04iCA60,TA60..(CP,SED)..5F..DLX198208-198309

BLUE,BLUE,TRIM8#

sub33504-14050

main33504-14070-06iCA60,TA6#..5F..DLX198208-198309

DARK BROWN,BROWN,TRIM4#

sub33504-14050

main33504-24010-01iTA6#..5F..(GL,XE)198108-198309

BLACK,BLACK,TRIM2#

main33504-24010-04iTA6#..5F..(GL,XE)198208-198309

BLUE,BLUE,TRIM8#

main33504-24010-06iTA6#..5F..(GL,XE)198208-198309

DARK BROWN,BROWN,TRIM4#

main33542-24030-01iTA6#..3FC198108-198309

BLACK,BLACK,TRIM2#

main33542-24030-04iTA6#..(CP,SED)..3FC198208-198309

BLUE,BLUE,TRIM8#

main33542-24030-06iTA6#..3FC198208-198309

DARK BROWN,BROWN,TRIM4#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-14021iTA6#..MTM198108-198309

main33570-14041iCA60198204-198309

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-14110iTA6#..RHD..3FC198108-198309

main33503-14120iTA6#..LHD..3FC198108-198309

main33530-14261iTA6#..LHD..MTM198108-198309

main33530-14281iTA6#..RHD..MTM198108-198309

main33530-20231iCA60..RHD198204-198309

main33530-20241iCA60..LHD198204-198309

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90521-49003iTA6#..MTM198108-198309

33555BOOT, SHIFT LEVER

main33555-12090iTA6#..MTM198108-198309

main33555-14030iTA6#..3FC198108-198308

main33555-14050iTA6#..3FC198308-198309

main33555-31011iCA60198204-198309

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-14010iTA60..MTM198108-198309

T=13.5

main33556-14020iTA60..MTM198108-198309

T=3.0

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-20010iTA6#..MTM198108-198309

9161140820

main91611-40820

9 parts on this diagram · 3 diagrams in section
