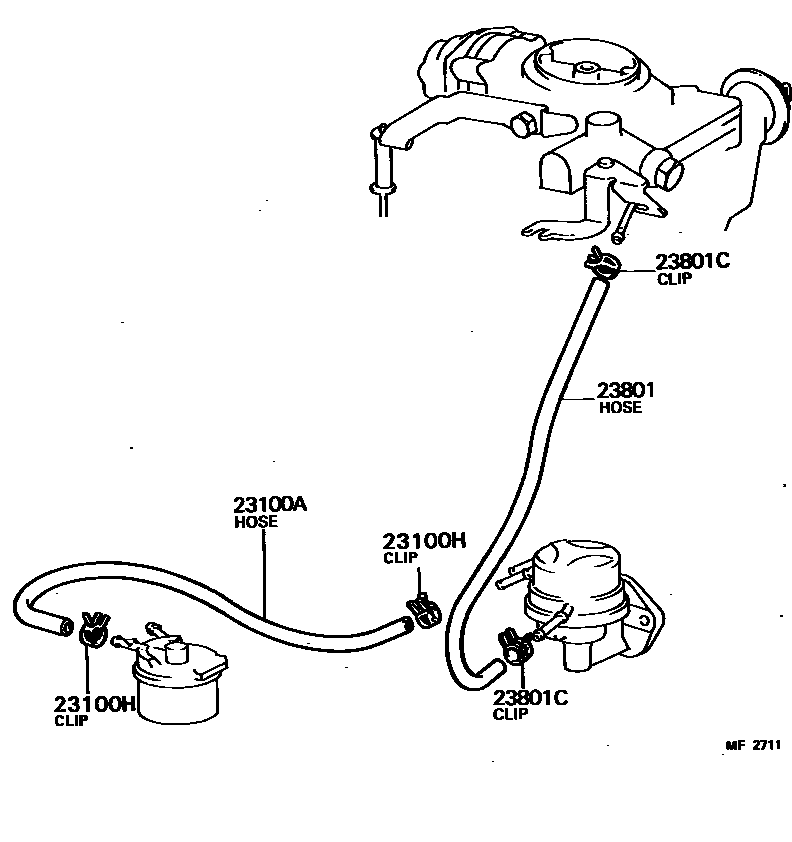

FUEL PIPE & CLAMP

23100AHOSE, FUEL

main95332-06030i2T,3T..TA6#198108-198309

*H,L=280

sub95333-06030

main95332-06040i3TC..TA62198108-198309

*H,L=360

sub95333-06040

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i2T,3T#..TA6#198108-198309

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95332-06030i2T,3T#..TA6#198108-198309

L=300

sub95333-06030

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i2T,3T#..TA6#198108-198309

sub96132-51100

4 parts on this diagram · 1 diagram in section
