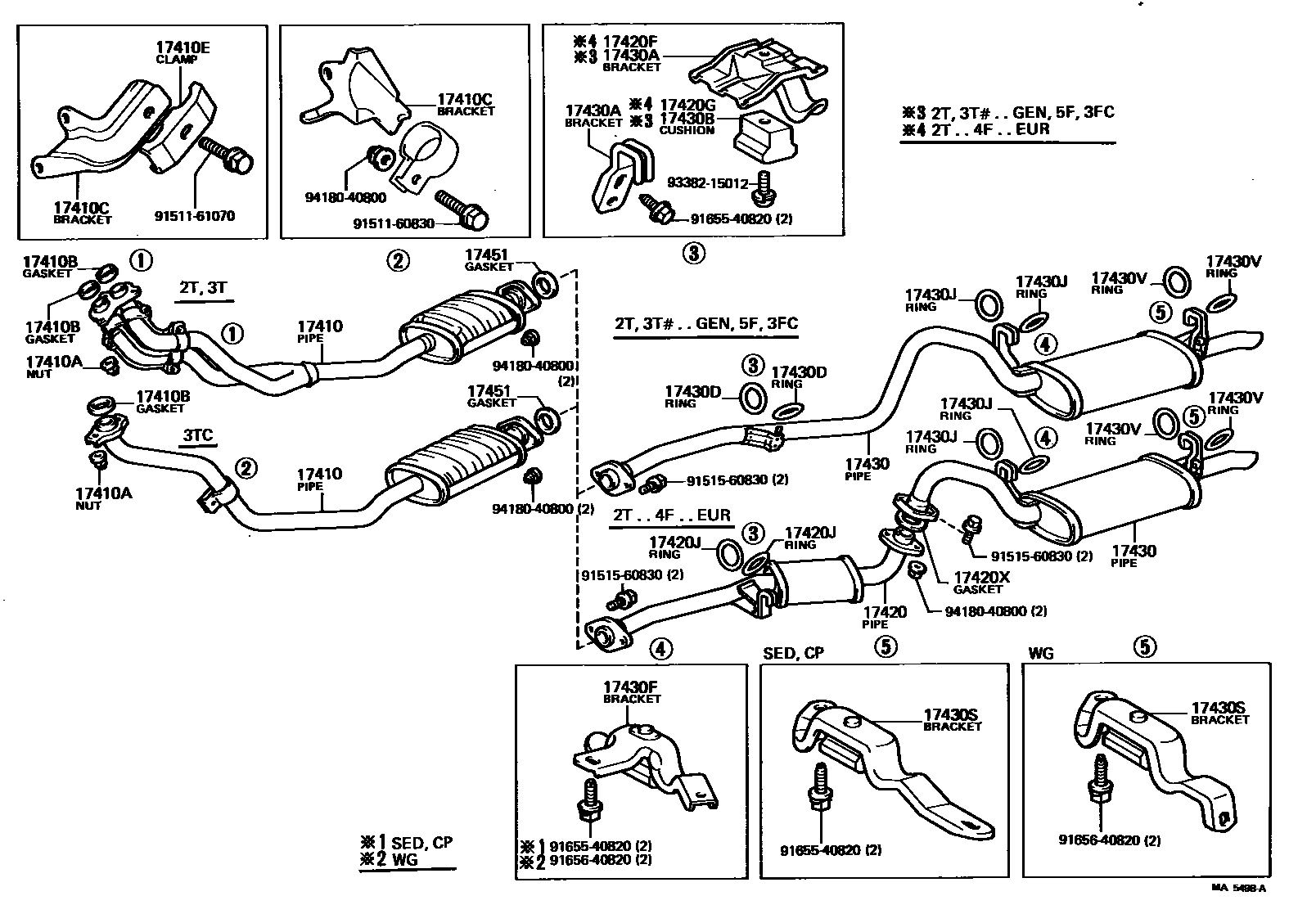

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-26320i2T,3T..TA6#198108-198309

main17410-28120i3TC..TA62198108-198309

main17410-64020i1C..CA60198204-198309

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10028i1C,2T,3T#..CA60,TA6#198108-198309

17410BGASKET, EXHAUST PIPE

main90917-06001i2T,3T..TA6#198108-198309

sub90917-06038

main90917-06004i1C,2T,3T#..CA60,TA6#198108-198309

sub90917-06039

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-26060i3TC..TA62198108-198309

main17571-26190i2T,3T..TA6#198108-198309

main17571-64020i1C..CA60198204-198309

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04030i2T,3T..TA6#198108-198309

17420PIPE ASSY, EXHAUST, CENTER

main17420-26030i2T..TA60..4F..EUG198108-198309

main17420-64020i1C..CA60198204-198309

sub17420-64021

17420FBRACKET, EXHAUST PIPE, CENTER

main17506-26050i1C..CA60..SED198108-198309

17420GCUSHION, EXHAUST PIPE CENTER, CENTER

main17591-36010i2T..TA60..4F..EUG198108-198309

sub17591-36011

sub90159-50207

17420JBOLT OR RING, EXHAUST PIPE CENTER

main90301-34207i2T..TA60..4F..EUG198108-198309

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004i2T..TA60..4F..EUG198108-198309

sub90917-06039

17430PIPE ASSY, EXHAUST, TAIL

main17430-26640i2T..TA60..GEN198108-198309

main17430-26650i2T..TA60..GEN198108-198308

sub17430-26640

main17430-26690i2T..TA60..4F..EUG198108-198309

main17430-64010i1C..CA60..SED198204-198309

sub17430-64011

main17430-64060i1C..CA60..WG198204-198309

sub17430-64011

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-26050i2T..TA60..4F..GEN;2T,3T#..TA6#..3FC,5F198108-198309

UPR

main17561-26080i2T..TA60..4F..GEN;2T,3T#..TA6#..3FC,5F198108-198309

LWR

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17591-36010i2T..TA60..4F..GEN;2T,3T#..TA6#..3FC,5F198108-198309

sub17591-36011

sub90159-50207

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-34207i2T..TA60..4F..GEN;2T,3T#..TA6#..3FC,5F198108-198309

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17507-26050i1C,2T,3T#..CA60,TA6#198108-198309

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34207i1C,2T,3T#..CA60,TA6#198108-198309

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-26100i1C,2T,3T#..CA60,TA6#..CP,SED198108-198309

main17508-64010i1C,2T,3TC..CA60,TA6#..WG198108-198309

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34207i1C,2T,3T#..CA60,TA6#198108-198309

17451GASKET, EXHAUST PIPE

main90917-06004i1C..CA60198204-198309

sub90917-06039

main90917-06012i2T,3T#..TA6#198108-198309

sub90917-06045

9151160830

main91511-60830

9151161070

main91511-61070

9151560830

main91515-60830

9165540820

main91655-40820

9165640820

main91656-40820

9338215012

main93382-15012

9418040800

main94180-40800

26 parts on this diagram · 2 diagrams in section
