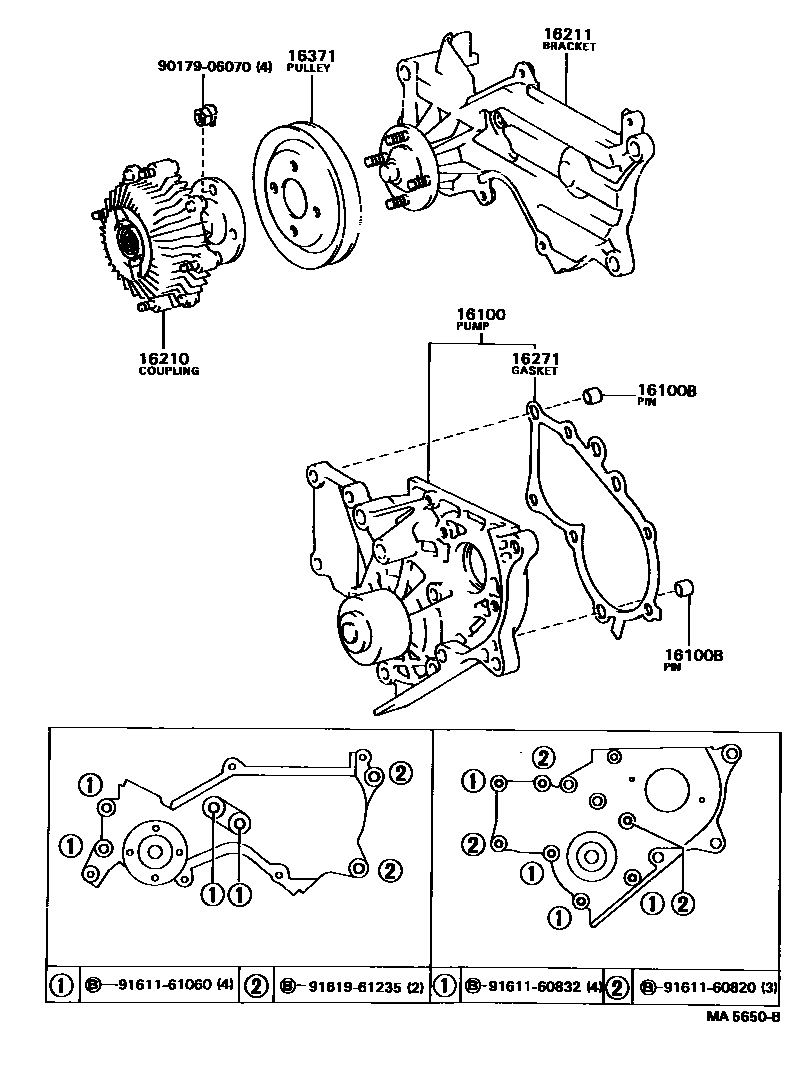

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-28020i2T,3T#..TA6#198108-198309

main16100-69085i1C..CA60198204-198309

sub16100-69275

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021i1C..CA60198204-198309

16210COUPLING ASSY, FLUID

main16210-28020i2T,3T#..TA6#198108-198309

main16210-64010i1C..CA60198204-198309

16211BRACKET, FLUID COUPLING

main16307-64010i1C..CA60198204-198309

sub16307-64011

sub91611-61030

16271GASKET, WATER PUMP

main16129-25011i2T,3T#..TA6#198108-198201

sub16129-25012

main16129-25012i2T,3T#..TA6#198201-198309

sub16129-25013

main16271-64010i1C..CA60198204-198309

sub16271-64020

16371PULLEY, FAN

main16173-28010i2T,3T#..TA6#198108-198309

main16371-64011i1C..CA60198204-198309

9017906070

main90179-06070

9161160820

main91611-60820

9161160832

main91611-60832

9161161060

main91611-61060

9161961235

main91619-61235

11 parts on this diagram · 2 diagrams in section
