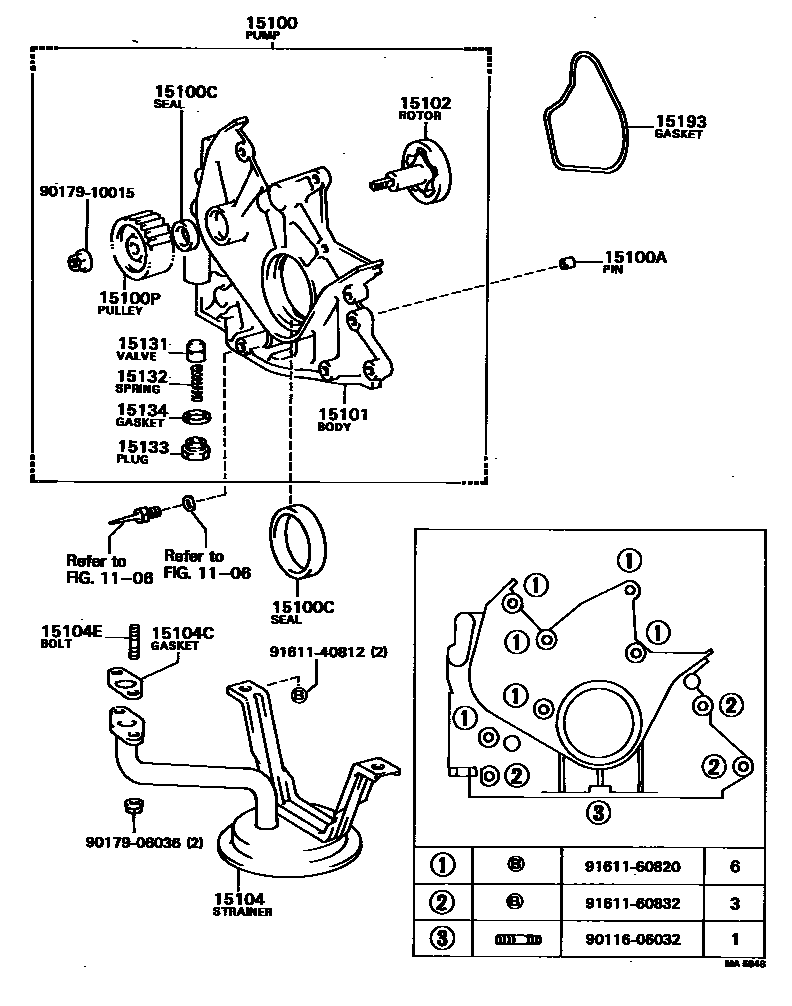

ENGINE OIL PUMP

0001 1 0002 1

1106

15100PUMP ASSY, OIL

main15100-26020i2T,3T#..TA6#198108-198309

main15100-64010i1C..CA60198204-198207

sub15100-64011

sub15193-64021

main15100-64011i1C..CA60198207-198309

sub15100-64012

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i1C..CA60198204-198309

15100CSEAL(FOR OIL PUMP)

main15165-64010i1C..CA60198204-198309

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-64010i1C..CA60198204-198309

15101BODY SUB-ASSY, OIL PUMP

main15101-64010i1C..CA60198204-198207

sub15101-64011

sub15193-64021

main15101-64011i1C..CA60198207-198309

sub15100-64030

sub15100-64040

15102ROTOR SET, OIL PUMP

main15102-25010i2T,3T#..TA6#198108-198309

main15102-64010i1C..CA60198204-198309

15104STRAINER SUB-ASSY, OIL

main15104-64010i1C..CA60198204-198309

15104CGASKET(FOR OIL STRAINER)

main15149-64010i1C..CA60198204-198309

sub15149-64030

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06032i1C..CA60198204-198309

15131VALVE, OIL PUMP RELIEF

main15131-22010i1C..CA60198108-198309

main15131-64020i1C..CA60198212-198309

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i2T,3T#..TA6#198108-198309

main15132-76011i1C..CA60198204-198309

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1C..CA60198204-198309

main15133-41030i2T,3T#..TA6#198108-198309

sub15133-20010

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i1C..CA60198204-198309

15193GASKET, OIL PUMP

main15193-64020i1C..CA60198204-198207

main15193-64021i1C..CA60198207-198309

sub15193-64022

9011606032

main90116-06032

9017906036

main90179-06036

9017910015

main90179-10015

9161140812

main91611-40812

9161160820

main91611-60820

9161160832

main91611-60832

21 parts on this diagram · 2 diagrams in section
