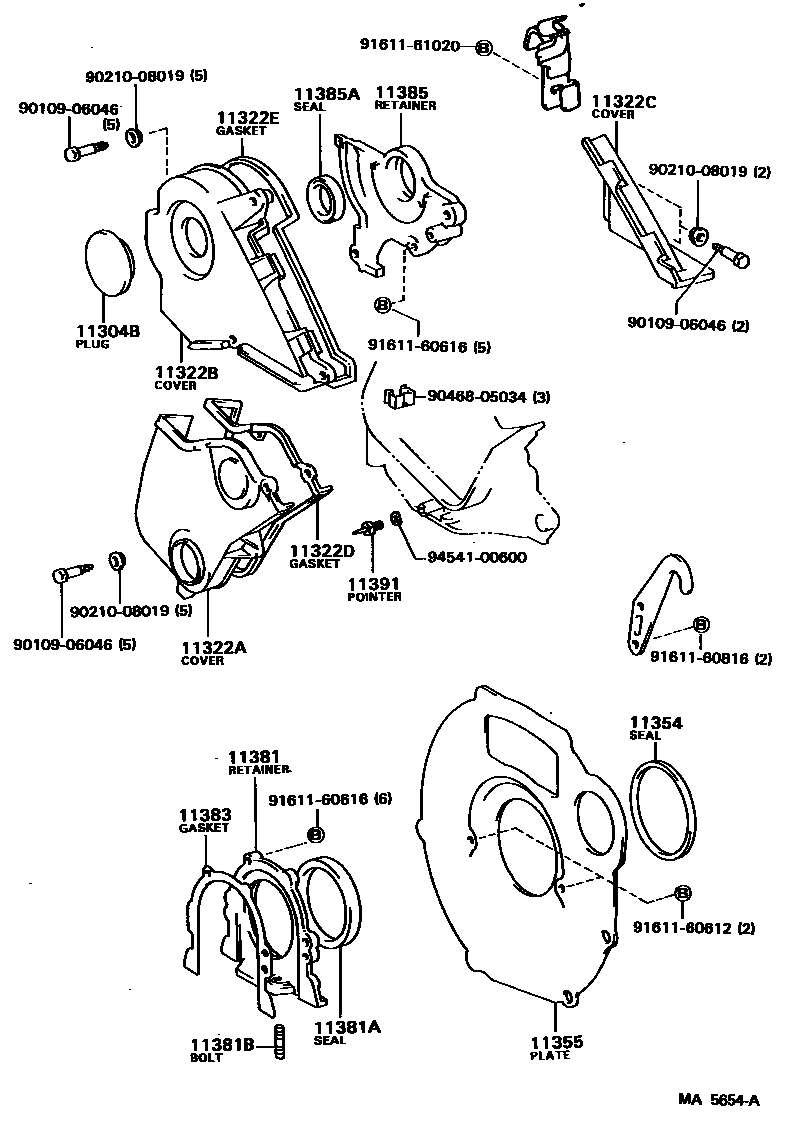

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i1C..CA60198204-198309

OD=64

11322ACOVER, TIMING BELT, NO.1

main11321-64010i1C..CA60198204-198309

sub11321-64011

11322BCOVER, TIMING BELT, NO.2

main11322-64010i1C..CA60198204-198309

11322CCOVER, TIMING BELT, NO.3

main11323-64010i1C..CA60198204-198309

sub11323-64011

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i1C..CA60198204-198309

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i1C..CA60198204-198309

11354SEAL, FLYWHEEL HOUSING DUST

main11354-64010i1C..CA60198204-198309

11355PLATE, REAR END

main11355-25012i2T,3T#..TA6#..MTM198108-198309

main11355-25023i2T,3T#..TA6#..3FC198108-198309

main11355-64010i1C..CA60198204-198309

sub11355-64011

11381RETAINER, ENGINE REAR OIL SEAL

main11381-25010i2T,3T#..TA6#198108-198309

main11381-64010i1C..CA60198204-198309

sub11381-64011

11381ASEAL, ENGINE REAR OIL

main90311-75113i2T,3T#..TA6#198108-198309

sub90311-75004

main90311-90002i1C..CA60198204-198309

sub90311-90003

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06033i1C..CA60198204-198309

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i2T,3T#..TA6#198108-198309

main11383-64010i1C..CA60198204-198309

sub11383-64011

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64010i1C..CA60198204-198309

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38017i1C..CA60198204-198309

sub90311-38046

11391POINTER, TIMING

main11391-64010i1C..CA60198204-198309

9010906046

main90109-06046

9021008019

main90210-08019

9046805034

main90468-05034

9161160612

main91611-60612

9161160616

main91611-60616

9161160816

main91611-60816

9161161020

main91611-61020

9454100600

main94541-00600

23 parts on this diagram · 2 diagrams in section
