PARTIAL ENGINE ASSEMBLY

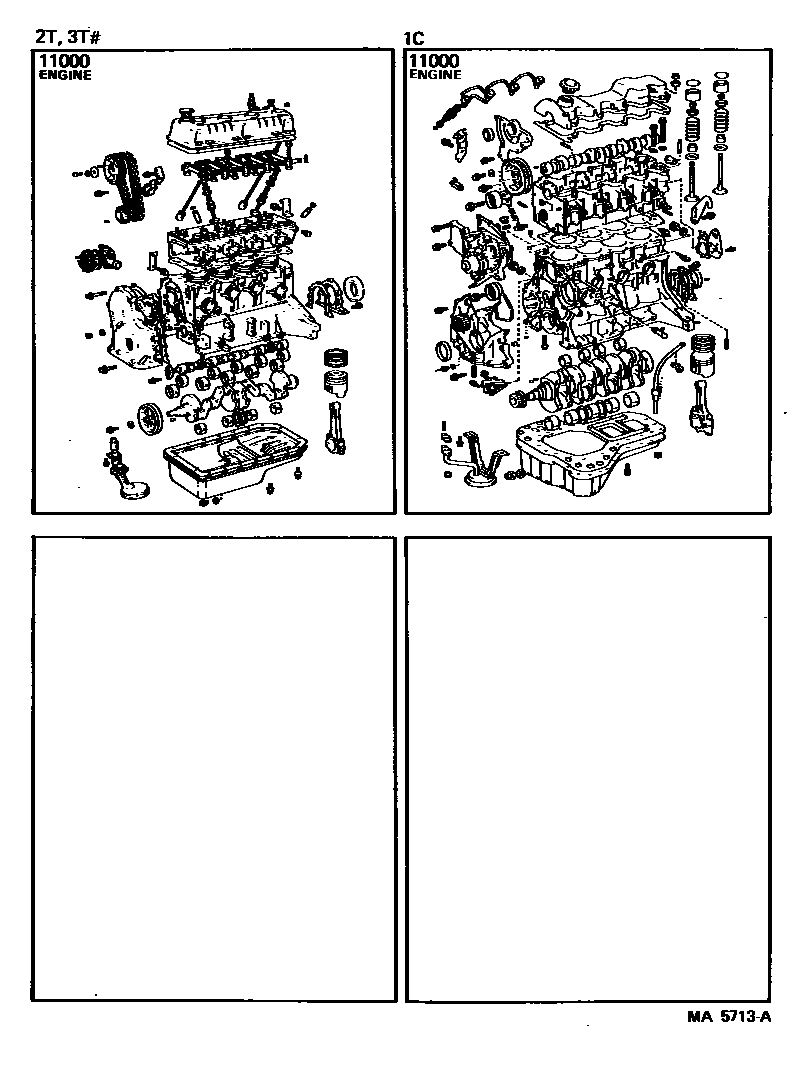

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-26135i198108-198207

main19000-26138i198207-198309

main19000-28042i198108-198207

main19000-28044i198207-198309

main19000-28071i198108-198207

main19000-28073i198207-198309

main19000-64020i198204-198303

main19000-64022i198303-198307

main19000-64023i198307-198309

1 parts on this diagram · 1 diagram in section
