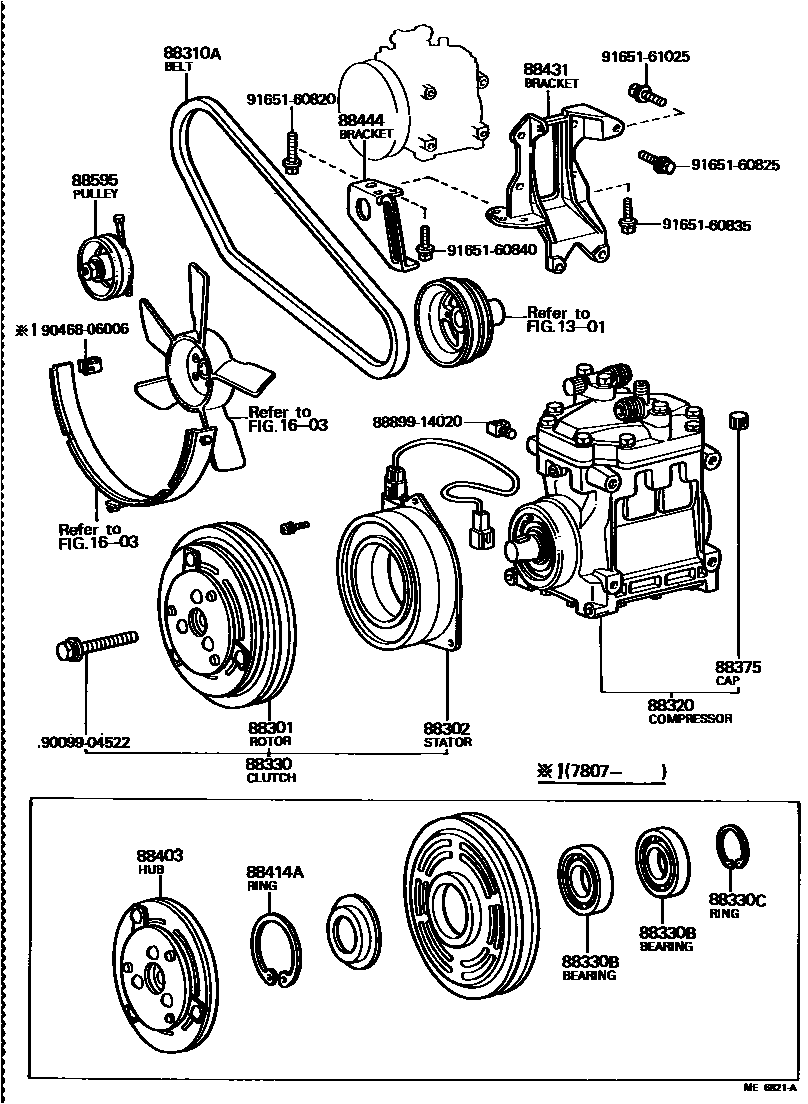

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1301

1603

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88401-36070iTA40..GEN197708-197808

sub88401-14060

main88412-12040iTA40..GEN197808-198107

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12050iTA40..GEN197708-197808

main88411-22040iTA40..GEN197808-198107

sub88411-14040

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00950iTA40..GEN197808-198107

L=950

sub99322-50950

main99322-00960iTA40..GEN197708-197808

L=960,L=960

88320COMPRESSOR ASSY, COOLER

main88320-14110iTA40..GEN197708-197808

2M110B

main88320-14180iTA40..GEN197808-197908

6P148A

main88320-14230iTA40..GEN197908-198107

6P148A

88330CLUTCH ASSY, MAGNET

main88410-14050iTA40..GEN197708-197808

sub88410-14070

main88410-22060iTA40..GEN197808-198107

sub88410-14090

88330BBEARING, MAGNET CLUTCH

main90099-10083iTA40..GEN197708-197808

main90099-10117iTA40..GEN197808-198107

sub90099-10108

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90096-90007iTA40..GEN197708-197808

main90099-07094iTA40..GEN197808-198107

88375CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30260iTA40..GEN197708-198005

sub88375-30270

main88375-30270iTA40..GEN198005-198107

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-20031iTA40..GEN197708-197808

main88403-26030iTA40..GEN197808-198107

sub88403-30270

88414ARING, SHIELD SNAP

main90096-90005iTA40..GEN197708-197808

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-14070iTA40..GEN197708-197808

main88431-22130iTA40..GEN197808-198107

sub88431-22131

88444BRACKET, IDLE PULLEY

main88444-14020iTA40..GEN197708-197807

sub88444-14030

sub90099-04527

sub94511-00800

main88444-14030iTA40..GEN197807-197808

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-14020iTA40..GEN197708-197807

main88440-25010iTA40..GEN198011-198107

sub88440-28050

main88440-30250iTA40..GEN197807-198011

sub88440-28050

8889914020COVER, EVAPORATOR

main88899-14020

9009904522

main90099-04522

9046806006

main90468-06006

9165160820

main91651-60820

9165160825

main91651-60825

9165160835

main91651-60835

9165160840

main91651-60840

9165161025

main91651-61025

23 parts on this diagram · 4 diagrams in section
