HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

5302

5304

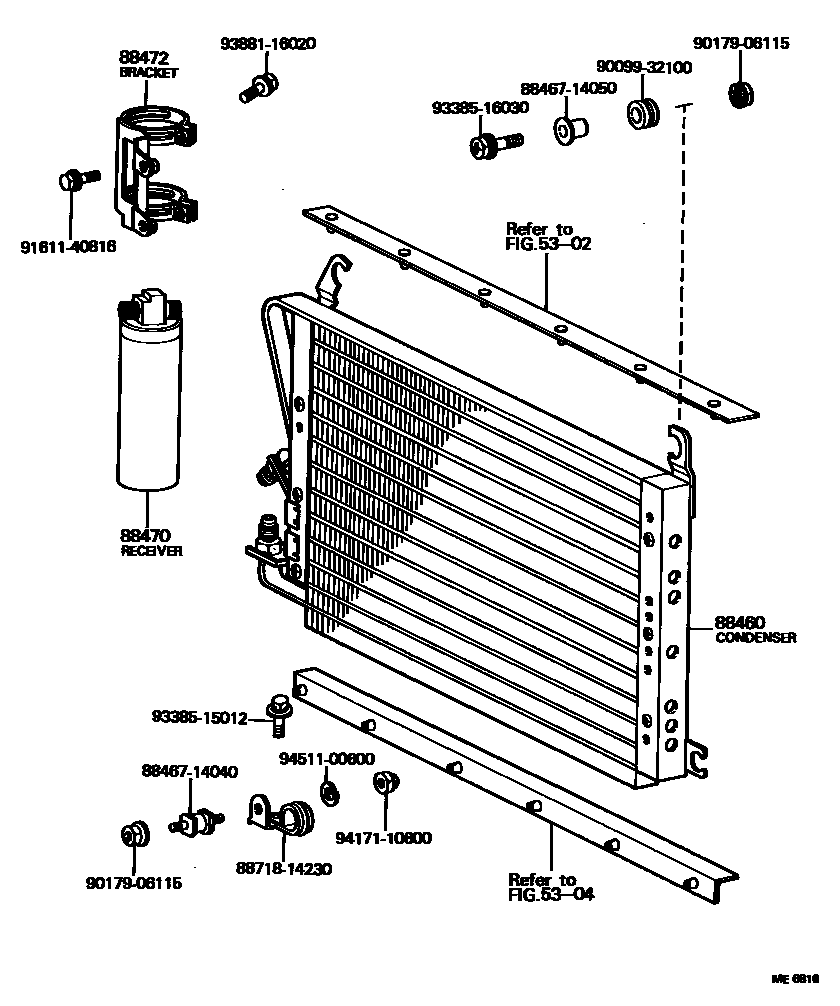

88460CONDENSER ASSY, COOLER

main88460-14130iTA40..GEN197708-197908

main88460-14170iTA40..GEN¥34,600197908-198106

sub88460-14171

sub88715-14111

sub88715-14121

main88460-14171iTA40..GEN198106-198107

88470RECEIVER & DRYER ASSY, COOLER

main88470-12021iTA40..GEN¥8,800197708-197808

main88470-14010iTA40..GEN¥7,200197908-198107

sub04884-33110¥5,200

main88470-20070iTA40..GEN¥7,800197808-197908

88472BRACKET, RECEIVER TANK, NO.1

main88472-14120iTA40..GEN197708-197808

main88472-14150iTA40..GEN197808-197908

main88472-14180iTA40..GEN197908-198107

sub88472-14160

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8871814230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14230

9009932100

main90099-32100

9017906115

main90179-06115¥120

9161140816

main91611-40816¥140

9338515012

main93385-15012¥160

9338516030

main93385-16030¥120

9388116020

main93881-16020

9417110600

main94171-10600

9451100600

main94511-00600¥120

16 parts on this diagram · 4 diagrams in section
