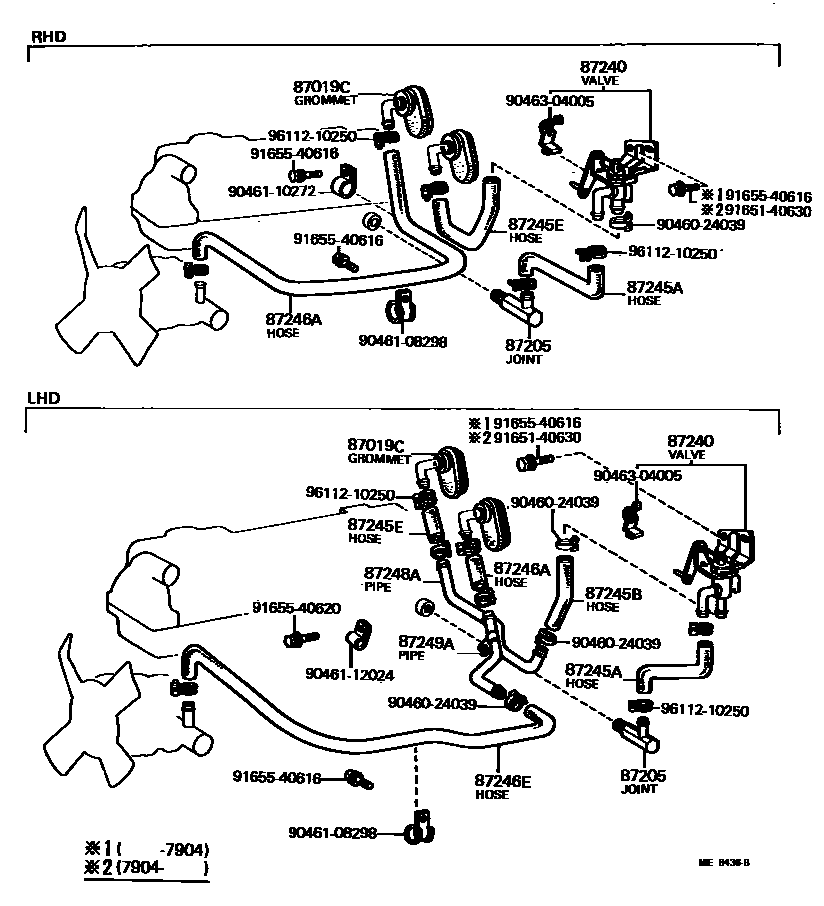

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01015iTA4#197708-198107

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-20100iTA4#197708-198107

87240VALVE ASSY, HEATER WATER

main87240-14070iTA40¥3,440197708-197904

main87240-20240iTA4#¥3,250197904-198107

87245AHOSE, HEATER WATER, INLET A

main87209-20320iTA4#..LHD¥1,120197808-198107

main87245-14390iTA4#..RHD¥990197708-198107

87245BHOSE, HEATER WATER, INLET B

main99552-30240iTA40..LHD197708-197908

L=240

sub99552-30300¥550

main99552-30300iTA4#..LHD¥550197908-198107

*H,L=230

sub99556-30300¥640

87245EHOSE, HEATER WATER, INLET E

main87245-14120iTA40..RHD¥1,190197708-197809

sub87245-20400¥1,200

main87245-20400iTA4#..RHD¥1,200197809-198107

main99552-30055iTA4#..LHD197708-198107

L=55

sub99552-30075

87246AHOSE, HEATER WATER, OUTLET A

main87245-14430iTA40..RHD¥1,760197708-197809

sub87245-20420¥1,480

main87245-20420iTA4#..RHD¥1,480197809-198107

sub99552-32000¥3,440

main99552-30055iTA4#..LHD197708-198107

L=55

sub99552-30075

87246EHOSE, HEATER WATER, OUTLET E

main87245-14540iTA40..LHD197708-197801

sub87245-14541¥1,360

main87245-14541iTA4#..LHD¥1,360197801-198107

sub99552-31000¥1,700

87248APIPE, HEATER WATER INLET, A

main87248-14060iTA40..LHD197708-197908

main87248-14061iTA4#..LHD197908-198107

87249APIPE, HEATER WATER OUTLET, A

main87248-14120iTA40..LHD197708-197801

sub87248-14121

sub87245-14541¥1,360

main87248-14121iTA4#..LHD197801-198107

9046024039

main90460-24039

9046108298

main90461-08298

9046110272

main90461-10272

9046112024

main90461-12024

9046304005

main90463-04005

9165140630

main91651-40630¥80

9165540616

main91655-40616¥120

9165540620

main91655-40620¥120

9611210250

main96112-10250¥240

19 parts on this diagram · 1 diagram in section
