WINDSHIELD WIPER

0001 1 0002 1

85160LINK ASSY, WINDSHIELD WIPER

main85160-14120iTA40..RHD197708-197908

main85160-14121iTA4#..RHD197908-198107

sub85160-14120

main85160-14130iTA40..LHD..GEN197708-197908

sub85160-14180

main85160-14131iTA40..LHD..GEN197908-198107

sub85160-14181

main85160-14180iTA40..LHD..EUR197708-197908

main85160-14181iTA4#..LHD..EUR197908-198107

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016iTA4#197908-198107

main90179-08015iTA40197708-197809

main90179-08026iTA40197809-197908

85190ARM ASSY, WINDSHIELD WIPER

main85190-12420iTA40..RHD..(DLX,STD)..GEN197908-198107

sub85190-12421

main85190-12450iTA40..LHD..(DLX,STD)..GEN197908-198107

main85190-14161iTA40..RHD..(DLX,STD)197708-197802

sub85190-14162

main85190-14162iTA40..RHD..(DLX,STD)..GEN197802-197908

main85190-14170iTA40..RHD..(GL,ST)197708-197802

sub85190-14171

main85190-14171iTA40..RHD..(GL,ST)..GEN197802-197908

main85190-14172iTA40..RHD..(GL,ST)197908-198107

main85190-14180iTA40..LHD197708-197802

sub85190-14181

main85190-14181iTA40..LHD197802-197908

main85190-14182iTA4#..LHD..EUR197908-198107

main85190-14300iTA40..RHD..EUG197807-197908

main85190-14301iTA4#..RHD..EUG197908-198107

85192COVER, WINDSHIELD WIPER ARM

main85192-12030iTA4#..RHD197908-198107

main85192-12040iTA4#..LHD197908-198107

main85192-14000iTA40..RHD197708-197908

main85192-14010iTA40..LHD197708-197908

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12360iTA40..LHD..(GL,ST)..GEN197908-198107

sub85220-14290

main85220-14100iTA40..RHD..(DLX,STD)..GEN197708-197908

sub85220-14280

main85220-14120iTA40..RHD..(GL,ST)..GEN197708-197810

sub85220-14121

sub85220-14231

main85220-14121iTA40..RHD..(GL,ST)..GEN197810-197908

sub85220-14122

main85220-14122iTA40..RHD..(GL,ST)197908-198107

main85220-14130iTA40..LHD..(GL,ST)197708-197802

sub85220-14200

main85220-14160iTA40..LHD..(DLX,STD)197708-197802

sub85220-14191

main85220-14180iTA40..LHD..(DLX,STD)197802-197804

sub85220-20130

main85220-14200iTA40..LHD..(GL,ST)197802-197804

sub85220-14201

main85220-14201iTA40..LHD197804-197810

sub85220-14202

sub85220-20160

main85220-14230iTA40..RHD..EUG197807-197810

sub85220-14231

sub85220-20150

main85220-14280iTA40..RHD..(DLX,STD)..GEN197908-198107

main85220-20130iTA40..LHD..(DLX,STD)..GEN197908-198107

main85220-20150iTA4#..RHD..EUG197810-198107

sub85220-30200

main85220-20160iTA40..LHD197810-197908

sub85220-14290

85221BLADE, WINDSHIELD WIPER

main85221-12080iTA40..LHD..(GL,ST)..GEN197908-198107

sub85221-20120

main85221-14140iTA40..RHD..(DLX,STD)..GEN197708-197908

sub85221-14170

main85221-14150iTA40..LHD197802-197804

sub85221-22050

main85221-14160iTA40..RHD..(GL,ST)197710-197908

sub85221-22050

main85221-14170iTA40..RHD..(DLX,STD)..GEN197908-198107

sub85221-14H90

main85221-20080iTA40..RHD..(GL,ST)197804-198107

sub85221-14H90

9009900913

main90099-00913

9165140612

main91651-40612

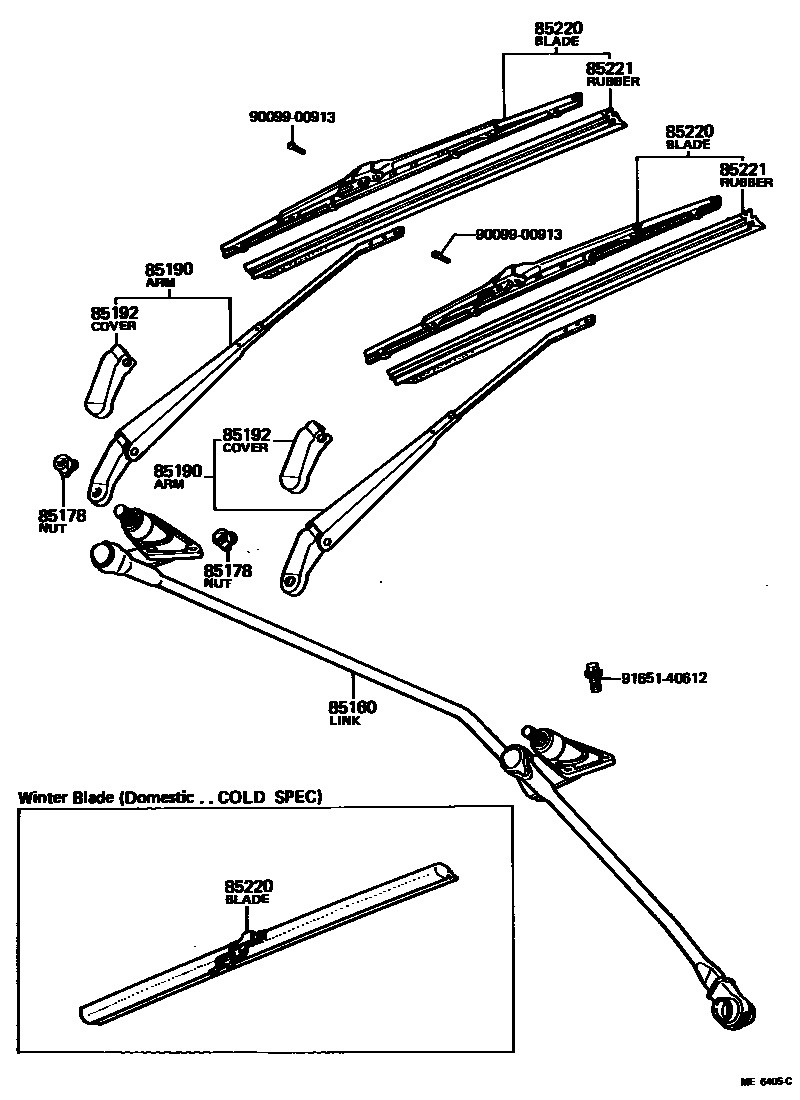

8 parts on this diagram · 2 diagrams in section
