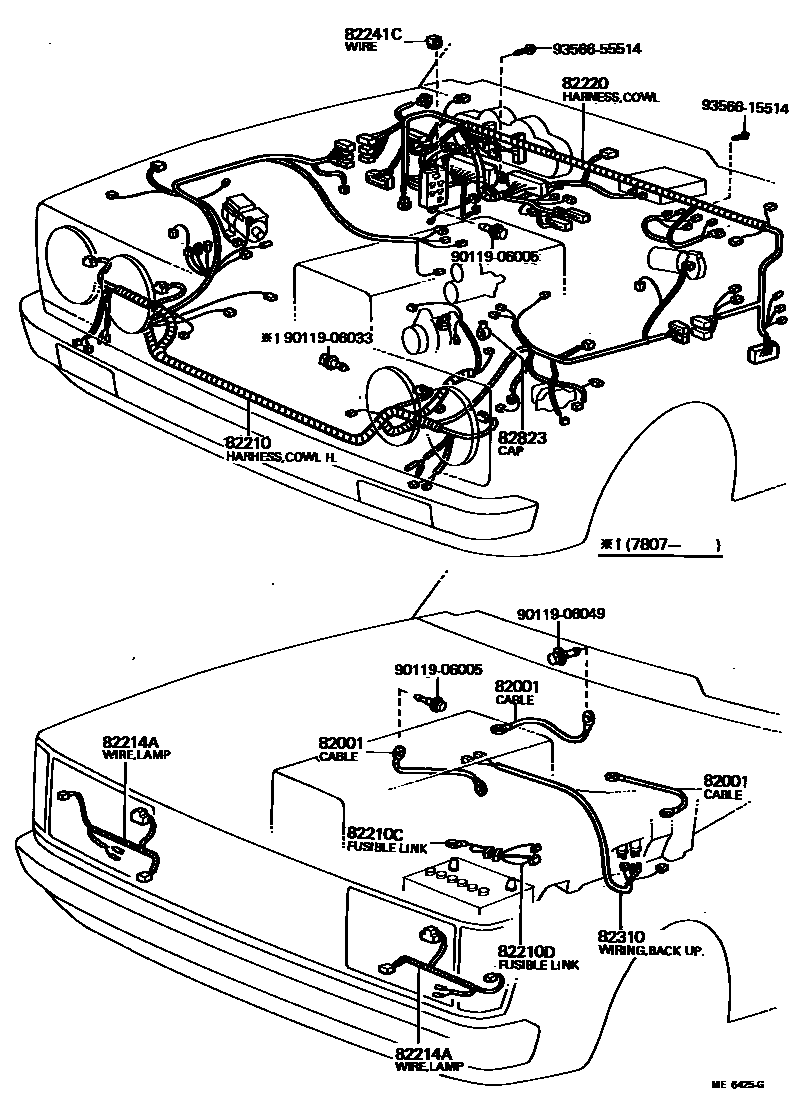

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82001CABLE, BOND, NO.1

main90980-07062iTA40..GEN¥700197708-198107

W/RADIO,L=260

main90980-07117iTA4#¥810197708-198107

L=350

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-14580iTA40..RHD197708-197802

main82210-14581iTA40..RHD197802-197807

main82210-14582iTA40..RHD197807-197908

main82210-14640iTA40..LHD..GEN197708-197802

main82210-14641iTA40..LHD..GEN197802-197807

main82210-14642iTA40..LHD..GEN197807-197908

main82210-14740iTA40..SDN197801-197802

main82210-14741iTA40..SDN197802-197807

main82210-14742iTA40..SDN197807-197809

main82210-14743iTA40..SDN197809-197908

main82210-1B100iTA4#..RHD197908-198107

main82210-1B130iTA40..LHD..GEN197908-198107

main82210-1B140iTA47..SDN197908-198107

82210CFUSIBLE LINK

main90982-08059iTA40¥570197708-197908

main90982-08080iTA4#¥900197908-198107

82210DFUSIBLE LINK

main90982-08061iTA40¥1,110197708-197905

main90982-08119iTA40¥1,830197905-197908

82214AWIRE, LAMP

main82214-14050iTA4#197908-198107

RH

main82214-14060iTA4#197908-198107

LH

82220HARNESS ASSY, WIRING COWL

main82220-14580iTA40..RHD197708-197802

main82220-14581iTA40..RHD197802-197808

main82220-14582iTA40..RHD197808-197905

sub82220-14583

main82220-14583iTA40..RHD197905-197908

main82220-14590iTA40..LHD..GEN197708-197802

main82220-14591iTA40..LHD..GEN197802-197808

main82220-14592iTA40..LHD..GEN197808-197905

sub82220-14593

main82220-14593iTA40..LHD..GEN197905-197908

main82220-14600iTA40..SDN197801-197802

main82220-14601iTA40..SDN197802-197808

main82220-14602iTA40..SDN197808-197905

sub82220-14603

main82220-14603iTA40..SDN197905-197908

main82220-1B150iTA4#..RHD197908-198107

main82220-1B160iTA40..LHD..GEN197908-198008

main82220-1B161iTA40..LHD..GEN¥58,500198008-198107

sub82220-1B171

main82220-1B170iTA4#..LHD..EUR197908-198008

W/HEADLAMP CLEANER

main82220-1B171iTA4#..LHD..EUR198008-198107

W/HEADLAMP CLEANER

82241CWIRE, RELAY

main82241-14010iTA40..(DLX,STD)..GEN197908-198107

main82241-22060iTA40..(DLX,STD)..GEN197802-197908

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82310-14170iTA40..MTM197708-197908

main82310-14171iTA40..MTM197908-198107

main82310-14220iTA47..4F¥2,770197908-198008

sub82310-14221

main82310-14221iTA47..MTM..SDN198008-198107

main82310-14240iTA47..MTM..EUG198008-198107

82823CAP, TERMINAL, NO.1

main82823-22020iTA4#¥310197708-198107

ALTERNATOR TERMINAL(B)

sub82823-12020¥320

9011906005

main90119-06005¥80

9011906033

main90119-06033¥130

9011906049

main90119-06049¥130

9356615514

main93566-15514¥120

9356655514

main93566-55514¥130

14 parts on this diagram · 7 diagrams in section
